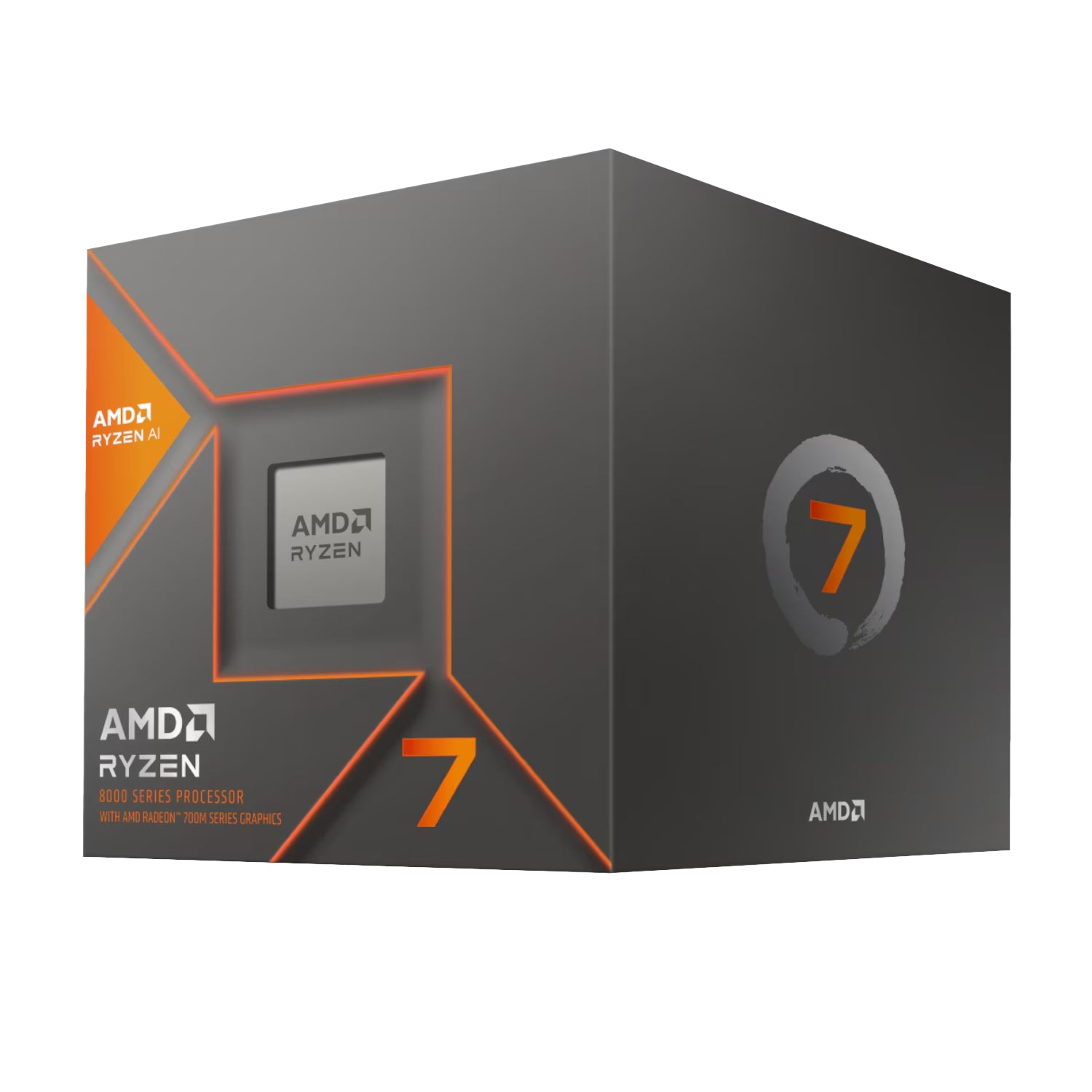

AMD Ryzen™ 7 8700G Desktop Processor | 8-Core | 16-Thread | Up to 5.1GHz | Radeon™ 780M Graphics | Ryzen™ AI | AM5 | DDR5
Pickup currently not available
General
Brand: AMD
Product Family: Ryzen™
Model: AMD Ryzen™ 7 8700G
Series: Ryzen™ 8000 Series
Form Factor: Desktop
Regional Availability: Global
Former Codename: Phoenix
Processor Architecture: Zen 4
CPU Socket: AM5
Launch Date: Q1 2024
CPU Specifications
CPU Cores: 8
Threads: 16
Multithreading (SMT): Yes
Base Clock: 4.2GHz
Max. Boost Clock: Up to 5.1GHz
L2 Cache: 8MB
L3 Cache: 16MB
Default TDP: 65W
Configurable TDP (cTDP): 45–65W
Max. Operating Temperature (Tjmax): 95°C
CPU Boost Technology: Precision Boost 2
Manufacturing & Architecture
CPU Core Process Technology: TSMC 4nm FinFET
CPU Compute Die (CCD) Size: 178mm²
Package Die Count: 1
Memory Support
System Memory Type: DDR5
Memory Channels: 2
Maximum Memory: 256GB
System Memory Subtype: UDIMM
Maximum Memory Speed — 2×1R: DDR5-5200
Maximum Memory Speed — 2×2R: DDR5-5200
Maximum Memory Speed — 4×1R: DDR5-3600
Maximum Memory Speed — 4×2R: DDR5-3600
ECC Support: Yes, requires platform support
Connectivity
PCI Express® Version: PCIe® 4.0
Native PCIe® Lanes: 20 Total / 16 Usable
Native USB 4: 2 × 40Gbps
Native USB 3.2 Gen 2: 2 × 10Gbps
Native USB 2.0: 1 × 480Mbps
NVMe Support: Boot, RAID 0 and RAID 1
Graphics
Graphics Model: AMD Radeon™ 780M
Graphics Core Count: 12
Graphics Frequency: 2900MHz
DirectX® Version: 12
DisplayPort™ Version: 2.1
DisplayPort Extensions: Adaptive-Sync, HDR Metadata, UHBR10
HDMI® Version: 2.1
HDCP Version: 2.3
USB Type-C® DisplayPort™ Alternate Mode: Yes
Multi-Monitor Support: Yes
Maximum Displays: 4
AMD FreeSync™: Yes
Wireless Display: Miracast
AMD SmartAccess Memory: Available
AI Engine
AMD Ryzen™ AI: Available
AI Performance: Up to 16 TOPS
Platform Support
CPU Socket: AM5
Supporting Chipsets: A620, X670E, X670, B650E, B650, X870E, X870, B840 and B850
Overclocking & Technologies
Unlocked for Overclocking: Yes
AMD EXPO™ Memory Overclocking Technology: Yes
Precision Boost Overdrive: Yes
Curve Optimizer Voltage Offsets: Yes
AMD Ryzen™ Master Support: Yes
Instruction Set & Extensions
Instruction Set: x86-64
Supported Extensions: AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3 and x86-64
Operating System Support
Windows: Windows 11 64-Bit Edition
Windows: Windows 10 64-Bit Edition
Linux: RHEL x86 64-Bit
Linux: Ubuntu x86 64-Bit
Security
AMD Enhanced Virus Protection (NX bit): Yes
Product IDs
Product ID Boxed: 100-100001236SBX, 100-100001236CSX
Product ID Tray: 100-000001236
Product ID MPK: 100-100001236SPK, 100-100001236HPK
What's Included
AMD Ryzen™ 7 8700G Desktop Processor
AMD Wraith Spire CPU Cooler
Official AMD Retail Packaging
