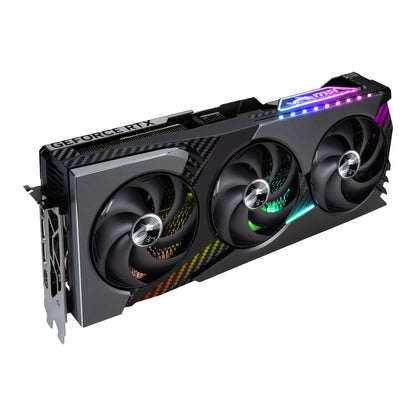

MSI GeForce RTX 5070 VANGUARD SOC Launch Edition 12GB Graphics Card

MSI GeForce RTX 5070 VANGUARD SOC Launch Edition 12GB Graphics Card

R 17,649.00
VAT included.
OUT OF STOCK
QUICK INFO

GPU: NVIDIA GeForce RTX 5070
CUDA Cores: 6144
Boost Clock: 2640 MHz
Extreme Performance Clock: 2655 MHz
Memory: 12 GB GDDR7
Memory Speed: 28 Gbps
Memory Bus: 192-bit
Interface: PCI Express Gen 5
Outputs: DisplayPort 2.1b x3, HDMI 2.1b x1
Power Consumption: 250 W
Recommended PSU: 650 W

The MSI GeForce RTX 5070 VANGUARD SOC LAUNCH EDITION is a high-performance graphics card based on the NVIDIA Blackwell architecture. It features 6144 CUDA cores, 12 GB of GDDR7 memory, and a 192-bit memory interface with 28 Gbps memory speed.

The card operates at a boost clock of 2640 MHz and supports an extreme performance clock of 2655 MHz through MSI Center. It utilizes MSI’s HYPER FROZR thermal design with triple STORMFORCE fans engineered for enhanced airflow and cooling efficiency.

Connectivity includes three DisplayPort 2.1b outputs and one HDMI 2.1b port supporting up to 4K at 480Hz and 8K at 120Hz with DSC, VRR, and HDR functionality. The graphics card supports PCI Express Gen 5 and requires a single 16-pin power connector with a recommended 650 W power supply.

With dimensions of 337 × 140 × 61 mm and a card weight of 1503 g, the RTX 5070 VANGUARD SOC LAUNCH EDITION is designed for high-end gaming and graphics workloads with advanced ray tracing and DLSS 4.5 support.

GENERAL

Product Name: MSI GeForce RTX 5070 VANGUARD SOC LAUNCH EDITION 12GB Graphics Card
Brand: MSI
Graphics Processing Unit: NVIDIA GeForce RTX 5070
Model Code: G5070-12VGSL
Launch Edition: Yes

GRAPHICS

GPU Architecture: NVIDIA Blackwell
CUDA Cores: 6144 Units
Core Clock (Boost): 2640 MHz
Extreme Performance Clock: 2655 MHz (MSI Center)
DirectX Support: DirectX 12 Ultimate
OpenGL Support: 4.6
Maximum Displays: 4
Maximum Digital Resolution: 7680 × 4320
Ray Tracing Support: Yes
DLSS Support: DLSS 4.5

MEMORY

Memory Capacity: 12 GB
Memory Type: GDDR7
Memory Speed: 28 Gbps
Memory Bus: 192-bit

COOLING

Cooling Design: HYPER FROZR Thermal Design
Fan Design: STORMFORCE Fan
Fan Count: 3

CONNECTIVITY

Interface: PCI Express Gen 5

PORTS & INTERFACES

DisplayPort 2.1b x3
HDMI 2.1b x1

HDMI FEATURES

4K 480Hz
8K 120Hz
Display Stream Compression (DSC)
Gaming Variable Refresh Rate (VRR)
HDR Support

POWER

Graphics Card Power Consumption: 250 W
Power Connector: 16-pin x1
Recommended Power Supply: 650 W
ATX 3.1 PSU Support: Recommended

DIMENSIONS & WEIGHT

Card Dimensions: 337 × 140 × 61 mm
Card Weight: 1503 g

PACKAGING

Packaging Weight: 3.382 kg

WHATS IN THE BOX

MSI GeForce RTX 5070 VANGUARD SOC LAUNCH EDITION Graphics Card
16-pin to PCIe Power Adapter
Graphics Card Support Stand
Documentation

WARRANTY

Limited Warranty Included

Items returned within 7 days of their original shipment date in same as new condition will be eligible for a full refund or exchange. Refunds will be charged back to the original form of payment used for purchase.

At Microhard Technologies PTY LTD we follow a streamlined 7-step process to ensure efficient resolution and optimal enduser support:

1.Remote Diagnosis:
Initially, we attempt to resolve the issue remotely, typically by guiding the customer through software updates or installations to address any software-related concerns.

2. Collection
If a hardware defect is suspected, we arrange for the collection of the product directly from the customer's location using a nationwide courier network, ensuring minimal inconvenience to the customer.

3. Inspection & Testing
Upon arrival at our facility, we verify the suspected hardware issue within 48 hours. In addition, we perform comprehensive stress tests to identify any other potential hardware problems that may not have been reported by the customer. The customer is regularly updated on the status of the evaluation.

4. Repair:
Once the hardware issue is confirmed, we send the product to an authorized repair center, such as Pinnacle Micro or Mustek, for thorough repairs.

5. Completion and Verification
After the repair is completed, we collect the product within 24 hours and perform a final stress test to confirm the issue has been fully resolved.

6. Customer Notification
The customer is promptly notified when their product is ready for return.

7. Return Shipping
The repaired product is sent back to the customer at no additional cost, ensuring a hassle-free experience.

This efficient process ensures that customers receive timely support and that their products are repaired to the highest standards.
