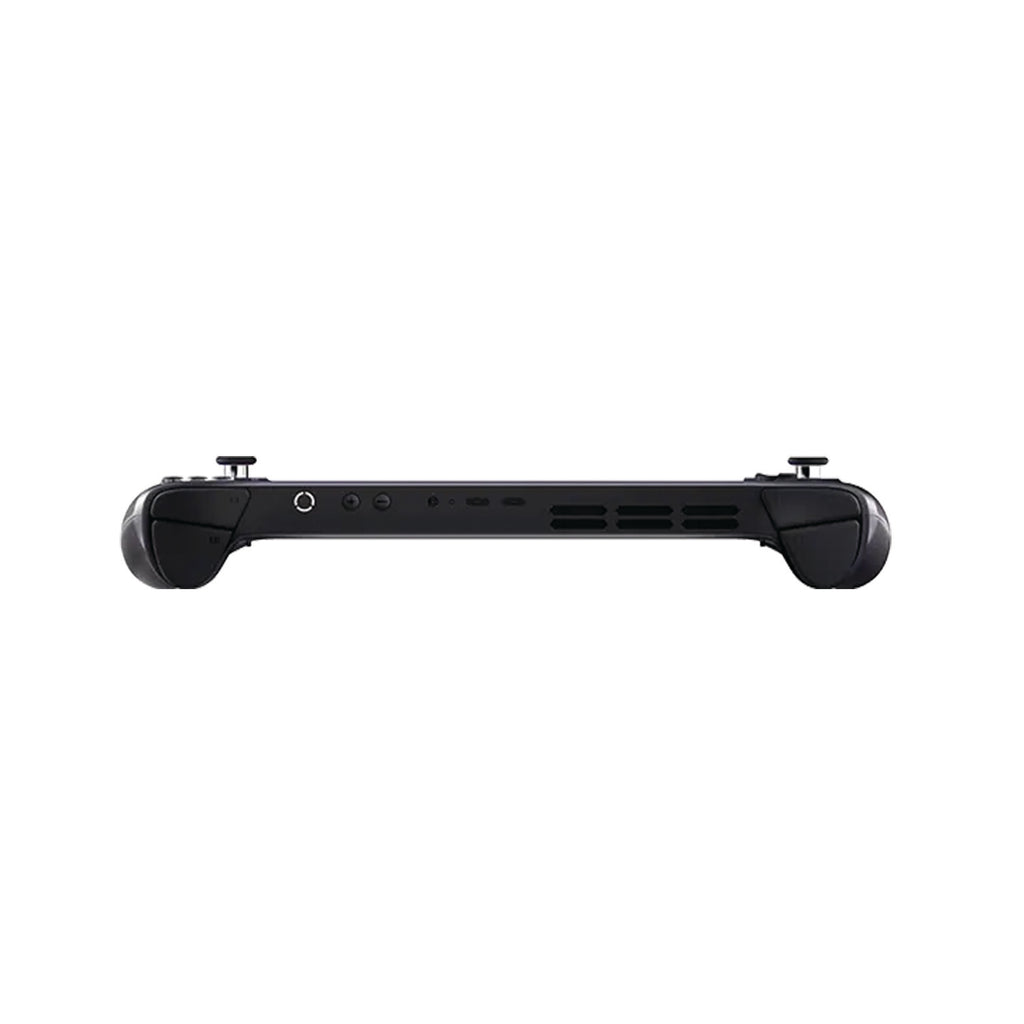

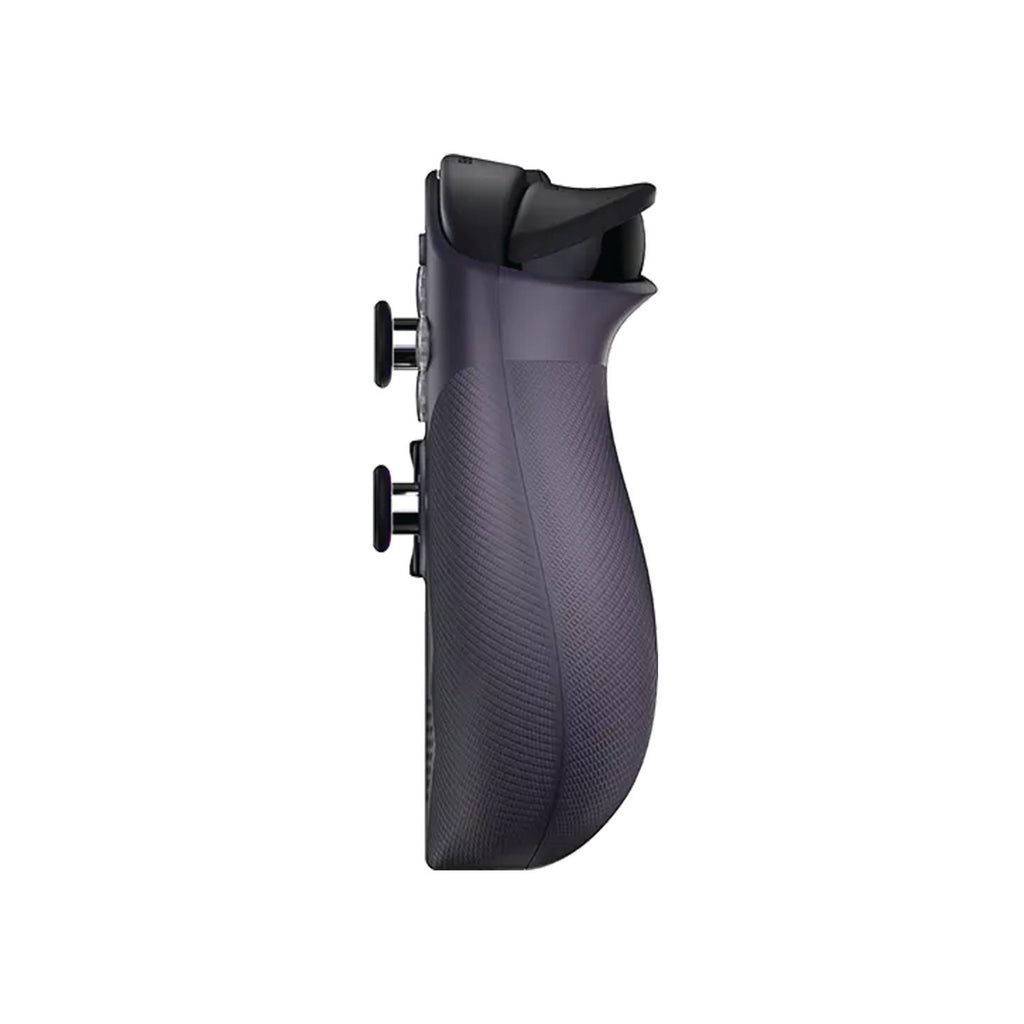

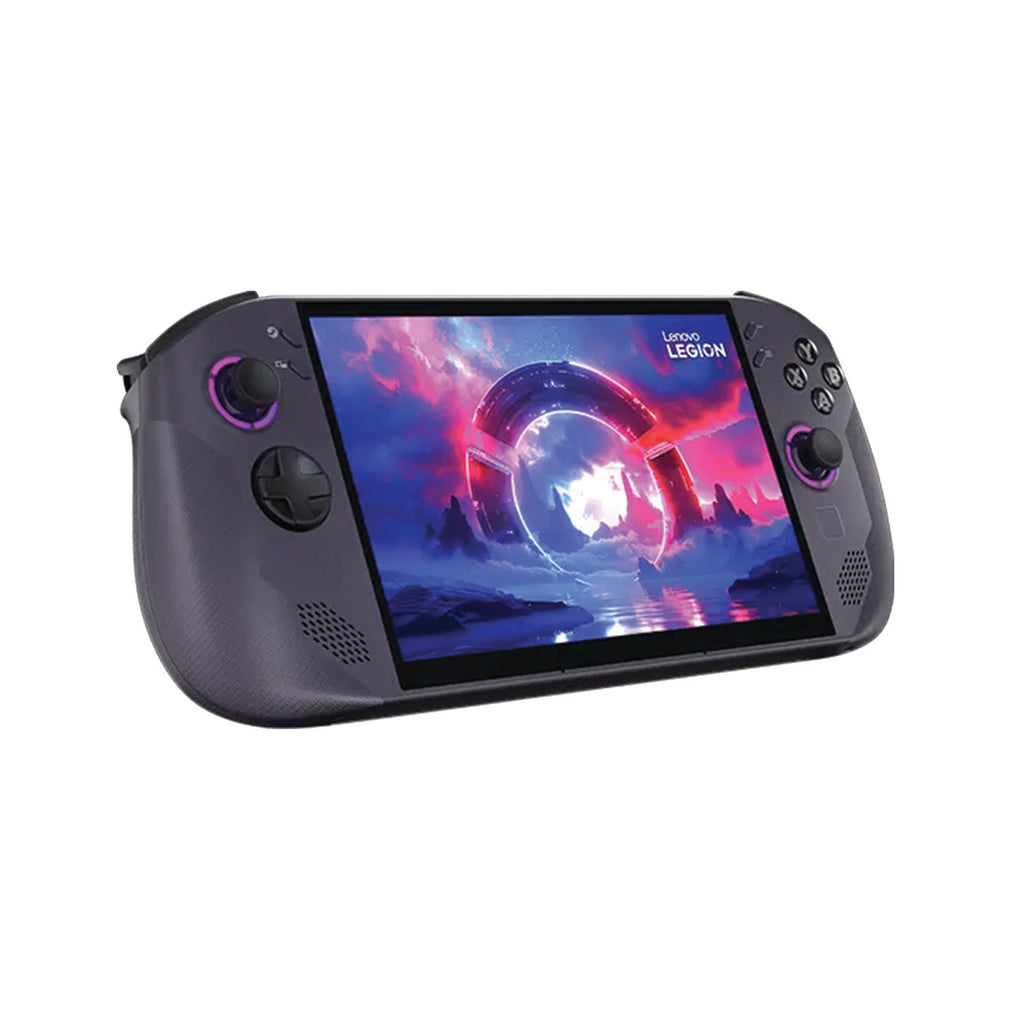

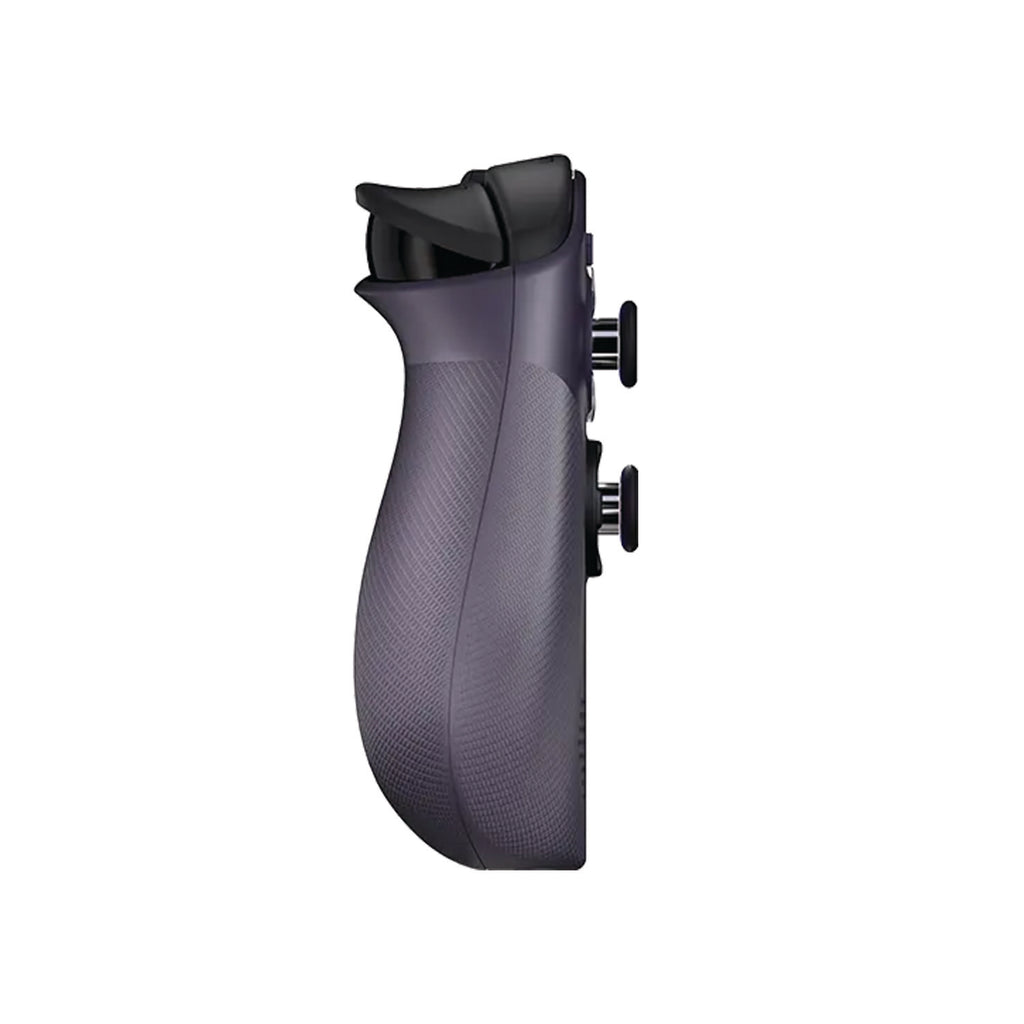

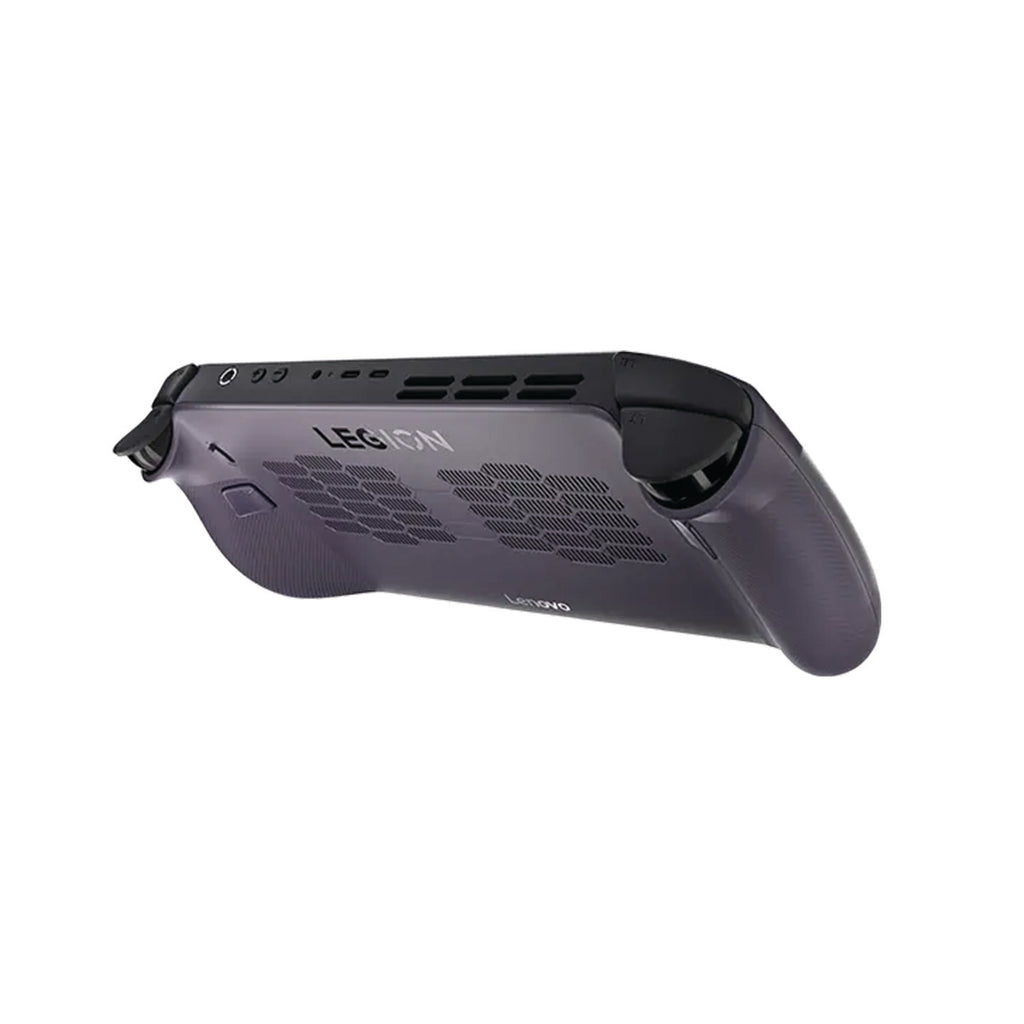

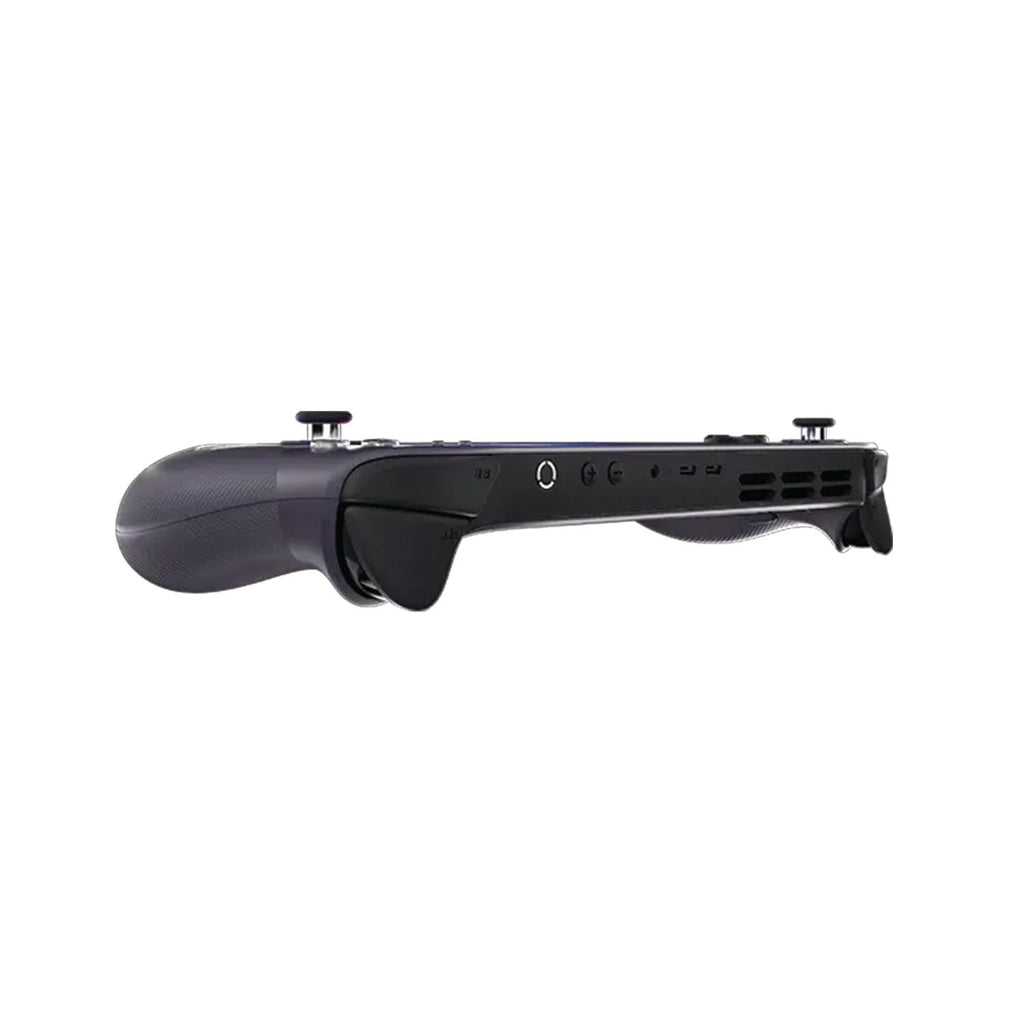

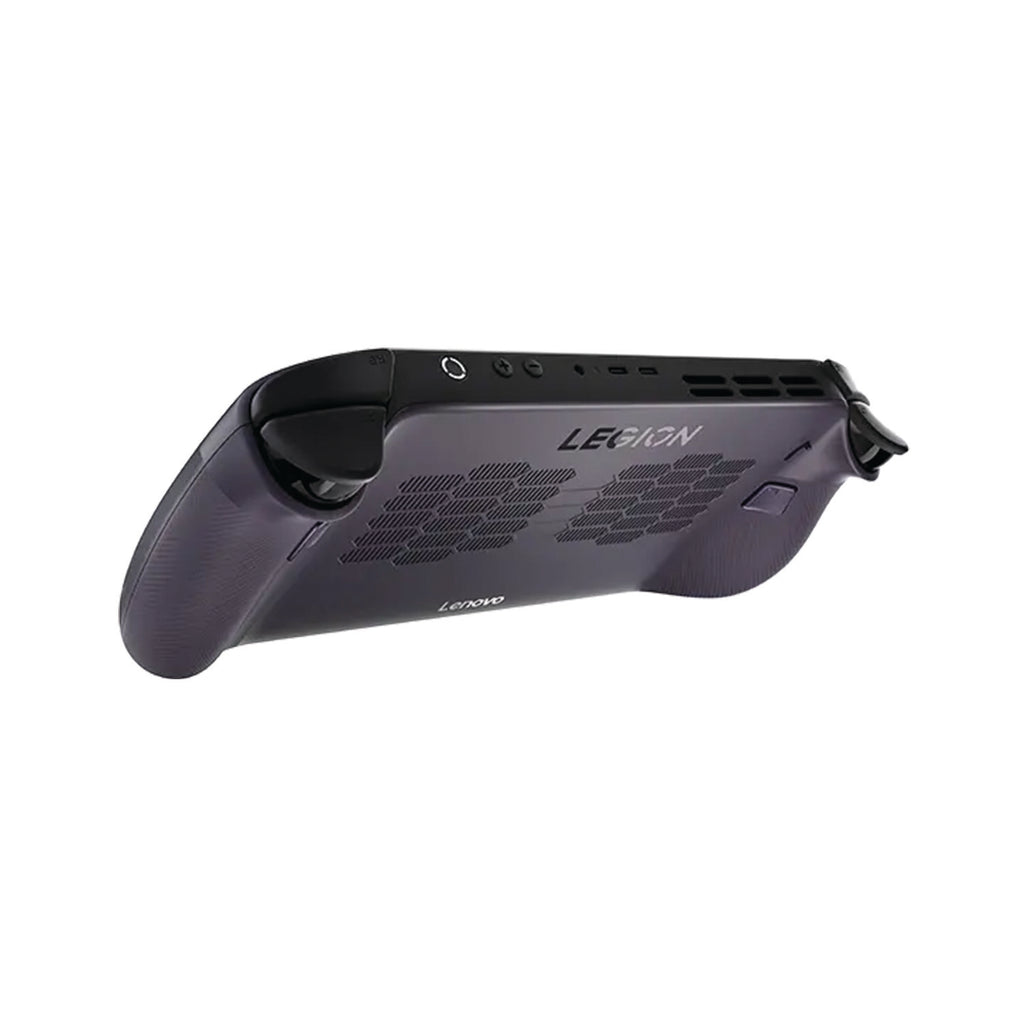

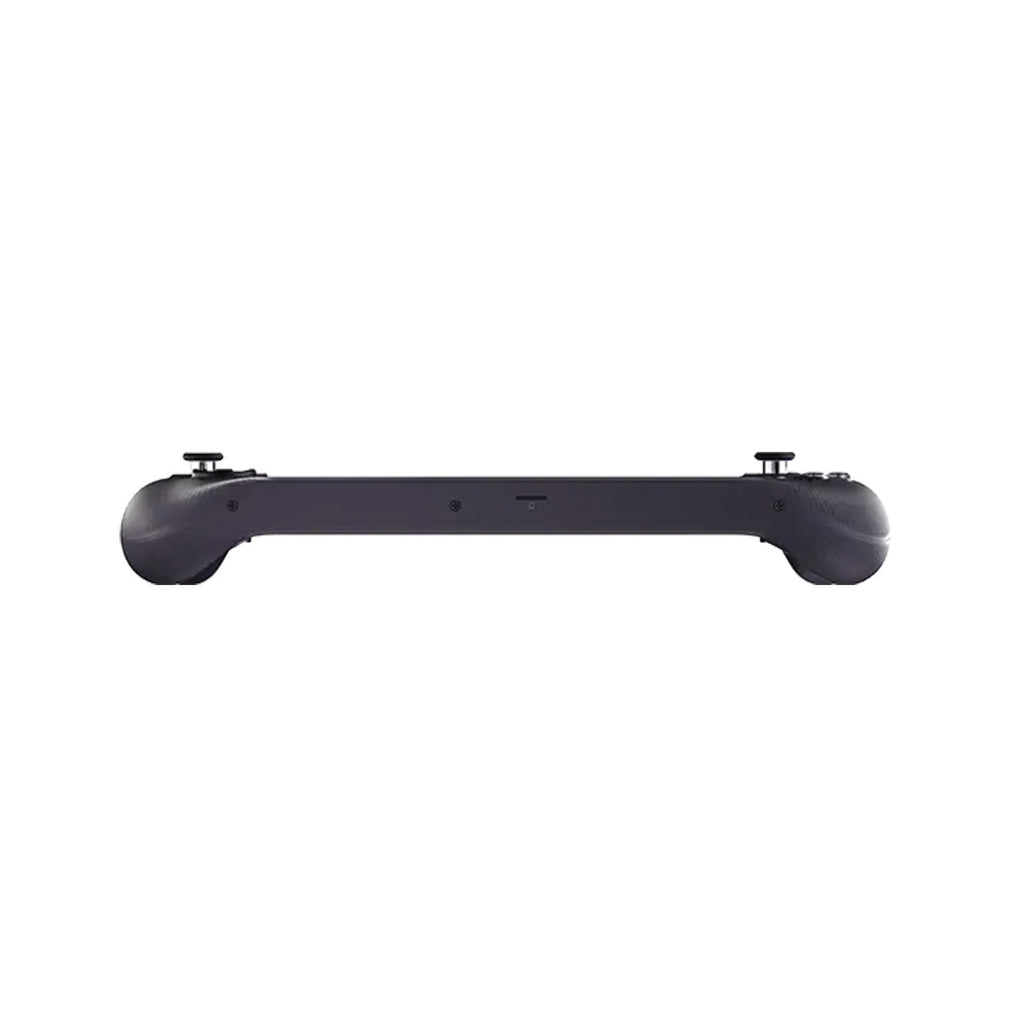

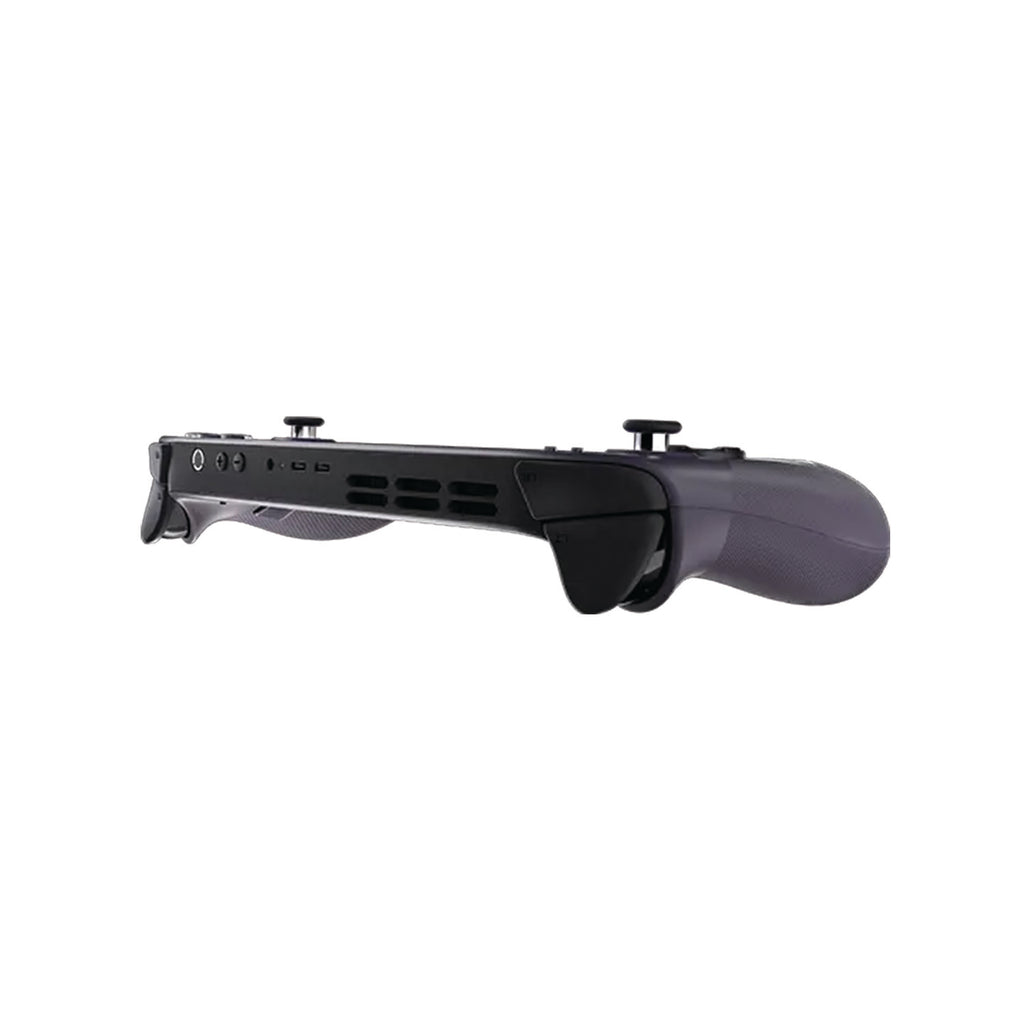

Lenovo Legion Go S 8ARP1 Nebula Nocturne | AMD Ryzen™ Z2 Go | 16GB LPDDR5X | 512GB PCIe 4.0 SSD | 8" WUXGA 120Hz Touchscreen | SteamOS
Pickup currently not available
QUICK INFO
Lenovo Legion Go S 8ARP1 handheld gaming PC
Nebula Nocturne finish
AMD Ryzen™ Z2 Go processor
4 cores and 8 threads
Up to 4.3GHz processor frequency
Integrated AMD Radeon™ Graphics
16GB LPDDR5X-6400 soldered memory
512GB PCIe 4.0 x4 NVMe SSD
8-inch WUXGA 1920 × 1200 touchscreen
120Hz variable refresh rate
500-nit IPS display with 100% sRGB
SteamOS
Wi-Fi 6E and Bluetooth 5.3
Dual USB4 40Gbps ports
55.5Wh battery with Super Rapid Charge
Description
The Lenovo Legion Go S 8ARP1 is a compact handheld gaming PC designed to bring full PC gaming into a portable form factor. This Nebula Nocturne configuration combines AMD Ryzen™ Z2 Go processing, 16GB of soldered LPDDR5X memory, a 512GB PCIe 4.0 NVMe SSD and an 8-inch WUXGA touchscreen running at up to 120Hz. With SteamOS, the system is designed around a streamlined handheld gaming experience while retaining the flexibility of PC hardware.
At the heart of the Legion Go S is the AMD Ryzen™ Z2 Go, featuring four CPU cores and eight threads with a 3.0GHz base frequency and up to 4.3GHz maximum frequency. Its 2MB of L2 cache and 8MB of L3 cache provide the processing foundation for gaming, applications and everyday handheld use, while the integrated AMD Radeon™ Graphics shares system memory rather than relying on a separate graphics card.
The 8-inch WUXGA display is built specifically for handheld gaming, offering a 1920 × 1200 resolution, 16:10 aspect ratio, 500-nit brightness, 100% sRGB colour coverage and a variable refresh rate from 48Hz to 120Hz. The multi-touch IPS panel also uses a glossy, anti-fingerprint surface, Panda King Glass and TÜV Low Blue Light technology, giving the display a combination of clarity, responsiveness and useful viewing comfort.
The Legion Go S uses 16GB of soldered LPDDR5X-6400 memory in this configuration. Because the memory is integrated directly onto the system board, it cannot be upgraded later, making the supplied 16GB configuration an important consideration when choosing the device. Storage is provided by a 512GB M.2 2242 PCIe 4.0 x4 NVMe SSD, with the system supporting a single internal drive and capacities up to 1TB according to Lenovo's tested configurations.
For connectivity, the Legion Go S provides two USB4 ports supporting data transfer, Power Delivery 3.0 and DisplayPort 1.4, alongside a 3.5mm headphone/microphone combination jack and a microSD card reader. Wireless connectivity is handled by Wi-Fi 6E with 2x2 802.11ax support and Bluetooth 5.3, giving the handheld fast wireless networking and straightforward support for compatible controllers, headsets and other peripherals.
The integrated 55.5Wh lithium-polymer battery is paired with Super Rapid Charge technology, while Lenovo specifies a 65W USB-C power adapter for the system. The battery can be charged from 0% to 30% in approximately 10 minutes, 0% to 70% in around 30 minutes and 0% to 100% in around 80 minutes under Lenovo's specified charging conditions.
Physical controls are designed around handheld gaming, with Hall-effect-style left and right joysticks, a D-pad, A/B/X/Y buttons, shoulder and trigger controls, additional function buttons and a built-in touchpad. Lenovo's Legion Coldfront cooling system helps manage the compact hardware, while the approximately 730g chassis incorporates an RGB lighting ring and a textured PC-ABS construction.
The result is a portable gaming system that combines the convenience of a dedicated handheld with the underlying flexibility of PC hardware. The Ryzen Z2 Go platform, fast LPDDR5X memory, PCIe 4.0 storage, 120Hz WUXGA touchscreen, Wi-Fi 6E and SteamOS make the Nebula Nocturne Legion Go S a compelling choice for players who want their PC gaming library available in a compact, purpose-built handheld.
Specifications
General
Brand: Lenovo
Product Family: Legion
Model: Legion Go S 8ARP1
Configuration: 16GB / 512GB / SteamOS
Colour: Nebula Nocturne
Form Factor: Handheld Gaming PC
Platform: AMD SoC
Processor Family: AMD Ryzen™ Z Series
Operating System: SteamOS
Included Upgrade: None
Processor
Processor: AMD Ryzen™ Z2 Go
CPU Cores: 4
Threads: 8
Base Frequency: 3.0GHz
Max Frequency: Up to 4.3GHz
L2 Cache: 2MB
L3 Cache: 8MB
Processor Graphics: AMD Radeon™ Graphics
Graphics
Graphics: AMD Radeon™ Graphics
Graphics Type: Integrated
Graphics Memory: Shared
Graphics Power: Shares CPU TDP
DirectX: DirectX® 12
Memory
Installed Memory: 16GB
Memory Type: LPDDR5X-6400
Memory Configuration: Soldered
Memory Slots: None
Memory Upgradeable: No
Maximum Memory: 16GB for this configuration
Storage
Installed Storage: 512GB SSD
Drive Type: M.2 2242 SSD
Storage Interface: PCIe® NVMe®
PCIe Interface: PCIe® 4.0 x4
Storage Slot: One M.2 PCIe® 4.0 x4 slot
Maximum Supported Storage: Up to 1TB M.2 SSD
Internal Drive Bays: One
Display
Display Size: 8 inches
Resolution: WUXGA 1920 × 1200
Panel Type: IPS
Touchscreen: 10-point multi-touch
Brightness: 500 nits
Aspect Ratio: 16:10
Colour Gamut: 100% sRGB
Refresh Rate: 48–120Hz VRR
Contrast Ratio: 1200:1
Surface: Glossy, anti-fingerprint
Viewing Angle: 89° / 89° / 80° / 80°
Glass: Panda King Glass
Low Blue Light: TÜV Low Blue Light
Touch Technology: In-cell multi-touch
Pen Support: No
Controls & Input
Controls: A, B, X and Y buttons
D-Pad: Yes
Joysticks: Left and right
Touchpad: Buttonless Mylar® surface touchpad
Function Buttons: 4
Y1 / Y2 Buttons: Yes
Trigger Buttons: LT and RT
Shoulder Buttons: LB and RB
Trigger Range Switches: LT and RT
Volume Controls: Yes
Power Button: Yes
Audio & Camera
Audio Chip: High Definition Audio
Speakers: Stereo, 2W × 2
Microphones: Dual-microphone array
Camera: None
Headphone / Microphone Jack: 3.5mm combo
Connectivity
Wi-Fi: Wi-Fi 6E
Wireless Standard: 802.11ax 2x2
Bluetooth: Bluetooth® 5.3
Ethernet: None
WWAN: Not supported
USB4 Ports: 2 × USB4 40Gbps
USB4 Features: Data Transfer, Power Delivery 3.0 and DisplayPort™ 1.4
Card Reader: microSD
Docking: USB-C docking supported
Battery
Battery Type: Integrated Li-Polymer
Battery Capacity: 55.5Wh
Super Rapid Charge: Yes
Charge Time 0–30%: Approximately 10 minutes
Charge Time 0–70%: Approximately 30 minutes
Charge Time 0–100%: Approximately 80 minutes
Maximum Local Video Playback: Up to 15.4 hours under Lenovo's specified test conditions
Power Adapter
Adapter Type: USB-C® AC Adapter
Power Output: 65W
Power Delivery: PD 3.0
Input Voltage: 100–240V
Input Frequency: 50–60Hz
Cooling
Cooling System: Legion Coldfront
Cooling Design: Active handheld cooling system
Design
Dimensions: 298.5 × 127.55 × 22.6–43.4mm
Weight: Approximately 730g
Colour: Nebula Nocturne
Case Material: PC-ABS + 15% Talc
Surface Treatment: Painting + laser special texture
System Lighting: RGB lighting ring
Sensors
Gyroscope: 6-axis
Ambient Light Sensor: Yes
Security
Security Chip: Firmware TPM 2.0 integrated in SoC
Administrator Password: Yes
Power-On Password: Yes
Hard Disk Password: Yes
Self-Healing BIOS: Yes
Fingerprint Reader: None
Operating Environment
Operating Temperature up to 2438m Altitude: 5°C to 35°C
Storage Temperature up to 2438m Altitude: 5°C to 43°C
Maximum Operating Temperature above 2438m: 31.3°C under unpressurised conditions
What's Included
Lenovo Legion Go S 8ARP1 Handheld Gaming PC
65W USB-C AC Power Adapter
Official Lenovo Documentation
Warranty
Official Manufacturer Warranty: 3-Year Courier or Carry-In Service
Warrenty And Shipping
Items returned within 7 days of their original shipment date in same as new condition will be eligible for a full refund or exchange. Refunds will be charged back to the original form of payment used for purchase.
At Microhard Technologies PTY LTD we follow a streamlined 7-step process to ensure efficient resolution and optimal enduser support:
1.Remote Diagnosis:
Initially, we attempt to resolve the issue remotely, typically by guiding the customer through software updates or installations to address any software-related concerns.
2. Collection
If a hardware defect is suspected, we arrange for the collection of the product directly from the customer's location using a nationwide courier network, ensuring minimal inconvenience to the customer.
3. Inspection & Testing
Upon arrival at our facility, we verify the suspected hardware issue within 48 hours. In addition, we perform comprehensive stress tests to identify any other potential hardware problems that may not have been reported by the customer. The customer is regularly updated on the status of the evaluation.
4. Repair:
Once the hardware issue is confirmed, we send the product to an authorized repair center, such as Pinnacle Micro or Mustek, for thorough repairs.
5. Completion and Verification
After the repair is completed, we collect the product within 24 hours and perform a final stress test to confirm the issue has been fully resolved.
6. Customer Notification
The customer is promptly notified when their product is ready for return.
7. Return Shipping
The repaired product is sent back to the customer at no additional cost, ensuring a hassle-free experience.
This efficient process ensures that customers receive timely support and that their products are repaired to the highest standards.
EXHILARATING SPEED & PERFORMANCE
Console-Class Gaming Meets Handheld Freedom
Enjoy smooth performance with the Z1 Extreme platforms—power and efficiency in your hand. Get immersed with 1200p gaming fueled by AMD Radeon graphics. With AMD RDNA™ 3 architecture it transforms your games’ visuals with cutting-edge technologies like Radeon™ Super Resolution*, FidelityFX™ Super Resolution, and AFMF on Windows models.
It transforms your games’ visuals with scaling options and cutting-edge technologies like super-resolution sharpening (FSR) and band-limited pixel scaling on SteamOS models.

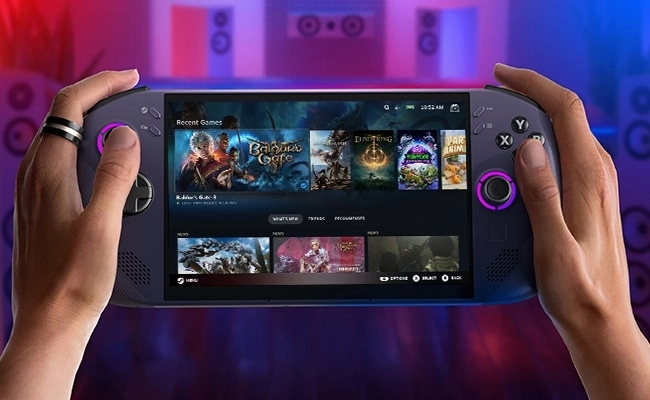

GAMING OPTIMIZED
UIPowered by SteamOS*
SteamOS combines the simplicity of a console with the power of PC gaming. Optimized for gamepad controls, it gets you into games fast with features like quick suspend/resume and seamless system and game updates. Access the full Steam ecosystem—your Steam Library, plus Steam Cloud, Steam Chat, Steam Game Recording, and more—on an operating system optimized for gaming.
*Available on SteamOS models only
LENOVO PURESIGHT GAMING DISPLAY
No Stutters, Just Wins
LENOVO PURESIGHT GAMING DISPLAY
No Stutters, Just Wins
8″ WUXGA Display
Enjoy an expansive 8″ screen with a 16:10 aspect ratio and native landscape. This PureSight display provides a 37% larger viewing area than average gaming handhelds, making every moment ultra-vibrant and immersive.
*Based on a 7" handheld device with a 16:9 aspect ratio
120Hz Refresh Rate
The 120Hz of variable refresh rate delivers buttery-smooth visuals, ensuring you never miss a beat during fast-paced gameplay. Experience seamless motion and ultra-clear graphics.
Vivid Color Accuracy
With 100% sRGB color accuracy and 500-nit brightness, colors pop with vibrant detail and clarity, enhancing your gaming experience.

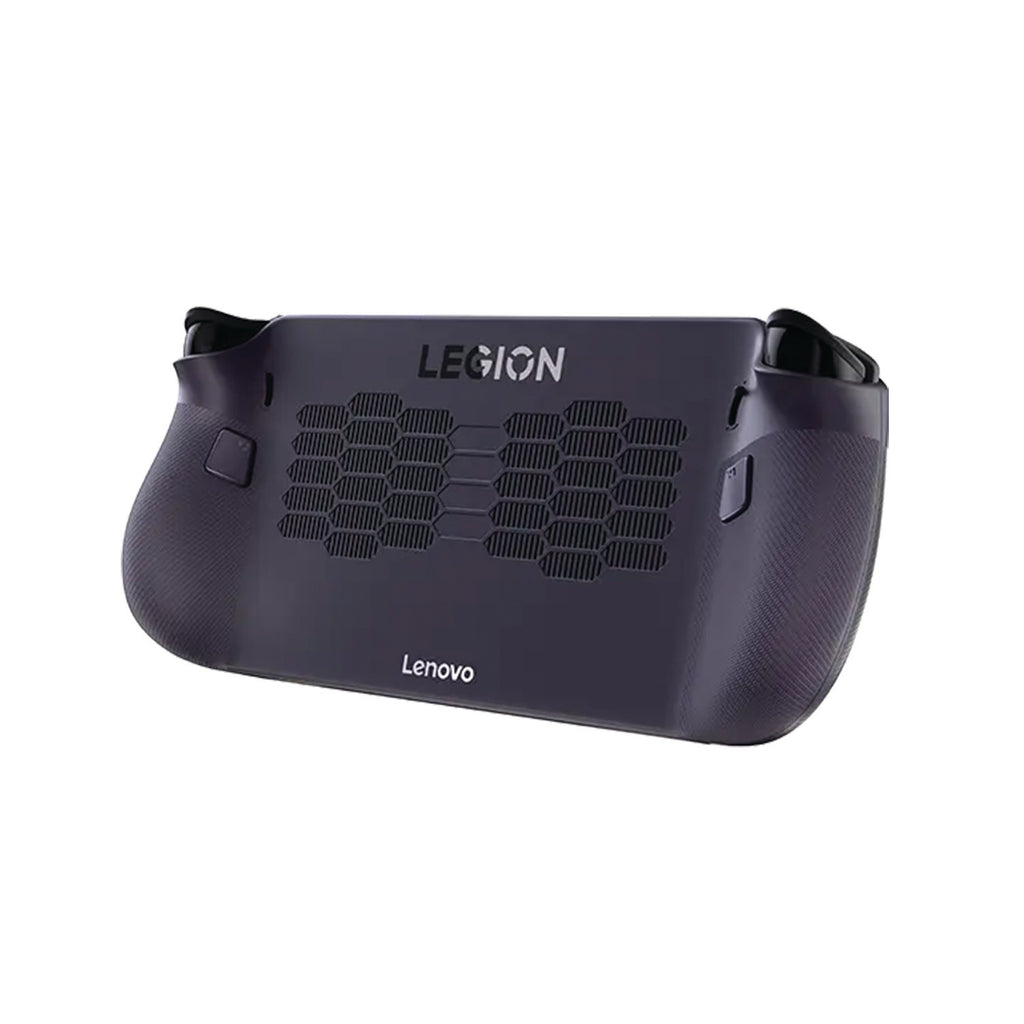

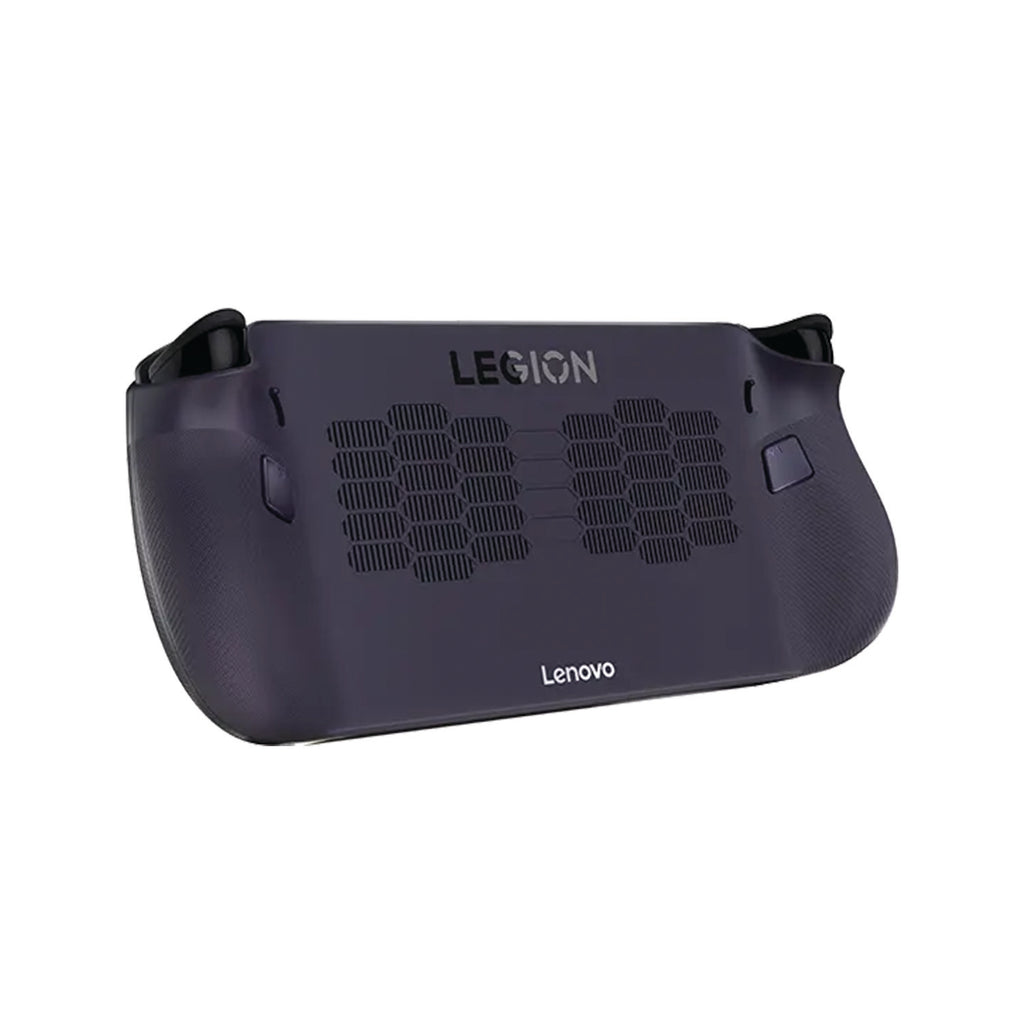

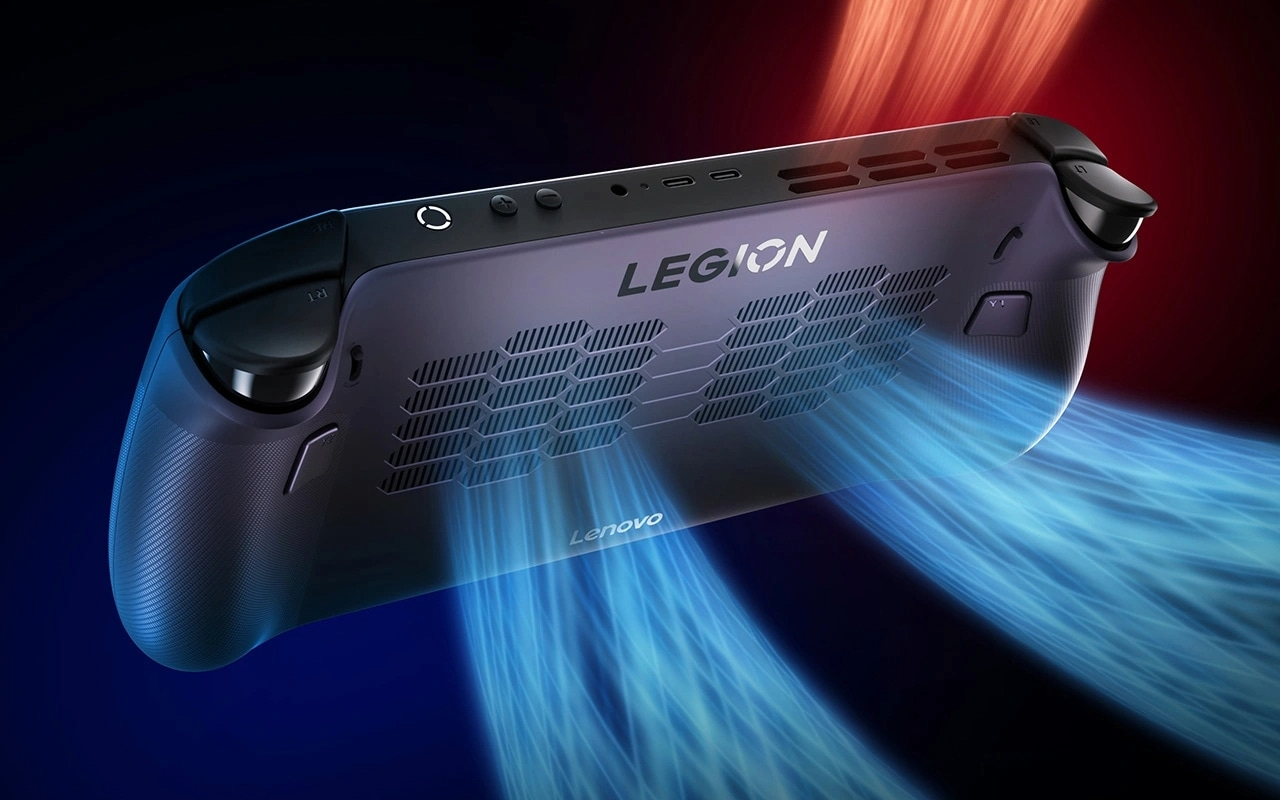

ADVANCED THERMAL TECHNOLOGY
Cooler Temps, Hotter Gameplay
Unlock epic gaming with the Legion Go S. Continuing its legacy of handheld innovation, it boasts the relentless Legion ColdFront tech. With an enormous fan and bigger heat sinks, it crushes heat waves, ensuring legendary performance. Stay cool and unstoppable, as a cutting-edge 3D fan whisks heat away, keeping you in the game wherever your dreams take you!

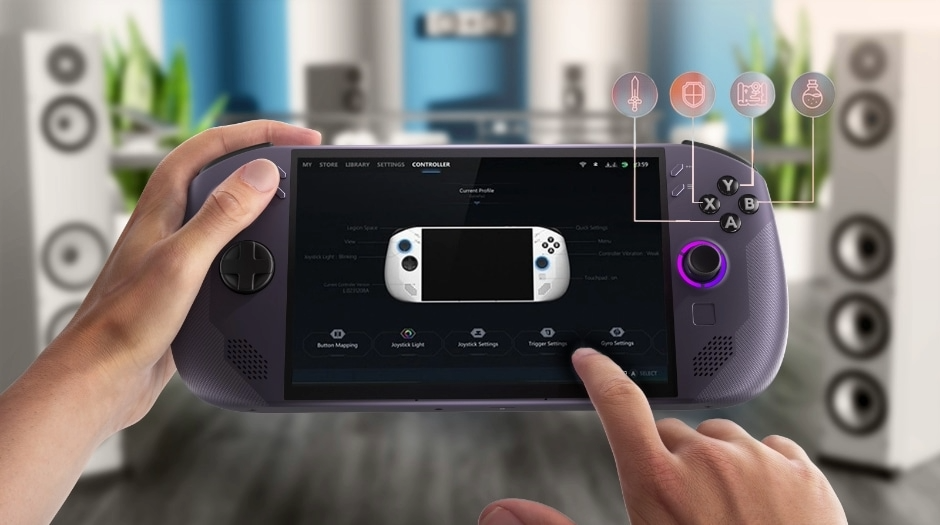

LEGION TRUESTRIKE
