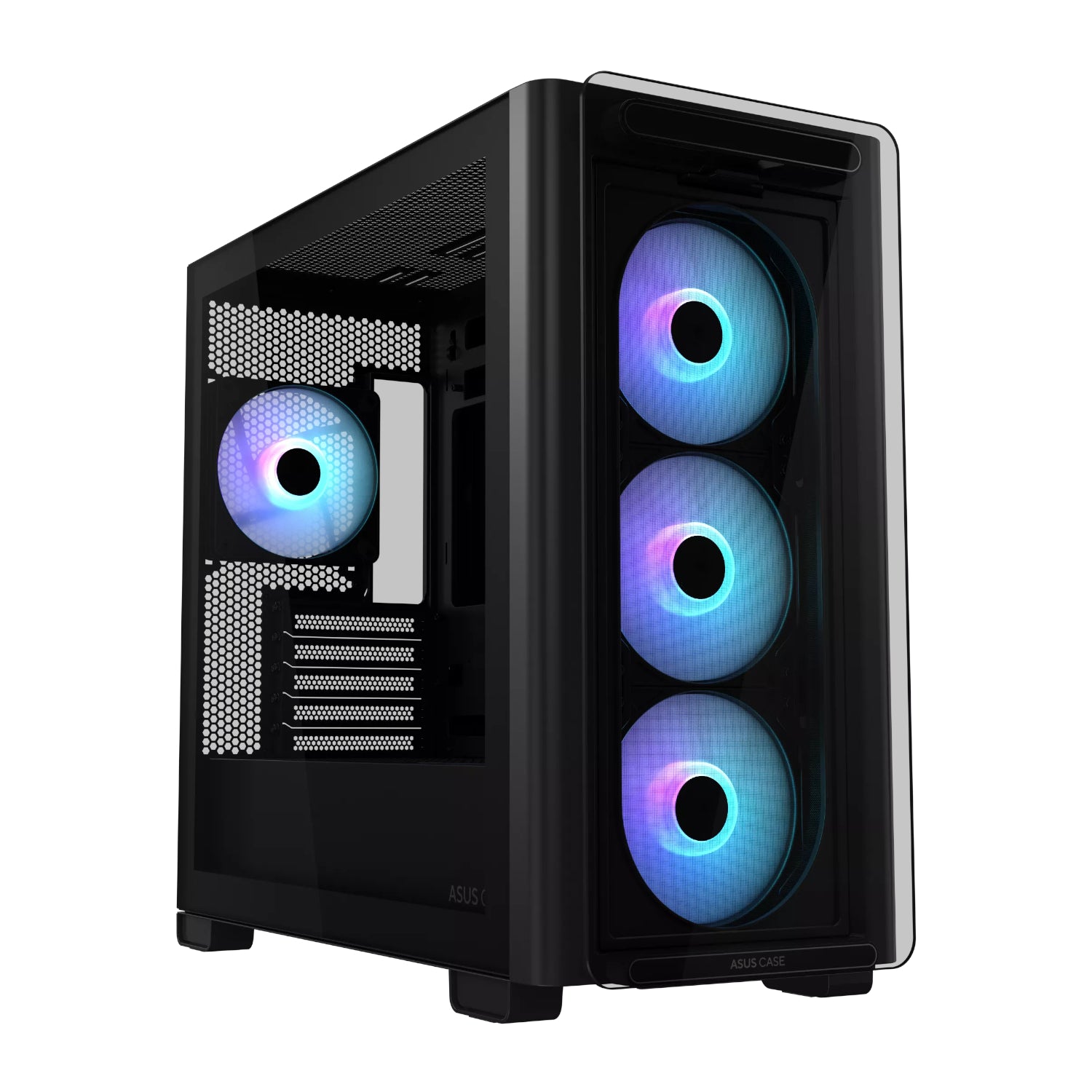

ASUS A23 PLUS Micro-ATX PC Case | Tempered Glass | 4 Pre-Installed ARGB Fans | 360mm Radiator Support | 380mm GPU Support
  • ASUS A23 PLUS Micro-ATX PC Case | Tempered Glass | 4 Pre-Installed ARGB Fans | 360mm Radiator Support | 380mm GPU Support
  • ASUS A23 PLUS Micro-ATX PC Case | Tempered Glass | 4 Pre-Installed ARGB Fans | 360mm Radiator Support | 380mm GPU Support
  • ASUS A23 PLUS Micro-ATX PC Case | Tempered Glass | 4 Pre-Installed ARGB Fans | 360mm Radiator Support | 380mm GPU Support
  • ASUS A23 PLUS Micro-ATX PC Case | Tempered Glass | 4 Pre-Installed ARGB Fans | 360mm Radiator Support | 380mm GPU Support
  • ASUS A23 PLUS Micro-ATX PC Case | Tempered Glass | 4 Pre-Installed ARGB Fans | 360mm Radiator Support | 380mm GPU Support
ASUS A23 PLUS Micro-ATX PC Case | Tempered Glass | 4 Pre-Installed ARGB Fans | 360mm Radiator Support | 380mm GPU Support

ASUS A23 PLUS Micro-ATX PC Case | Tempered Glass | 4 Pre-Installed ARGB Fans | 360mm Radiator Support | 380mm GPU Support

R 1,949.00
VAT included.
● In Stock With Supplier
Only 16 Available — Ships in 3–5 Days
Quick Info

Micro-ATX and Mini-ITX motherboard support
Support for hidden-connector motherboard designs
Tempered-glass front panel
Four pre-installed ARGB fans
ASUS Aura Sync ARGB compatibility
Graphics cards up to 380mm long
CPU coolers up to 165mm tall
Up to 360mm radiator support
Front and top radiator support
USB 3.2 Gen 2 Type-C front connectivity
Two front USB 3.2 Gen 1 ports
33mm cable-management compartment
Five expansion slots
Support for 2.5-inch and 3.5-inch storage
Black
The ASUS A23 PLUS is a compact micro-ATX PC case designed for mainstream builders who want a clean, modern enclosure without sacrificing compatibility with high-performance components. Its support for Mini-ITX and Micro-ATX motherboards makes it well suited to gaming PCs, home systems and compact performance builds.

Despite its compact motherboard compatibility, the A23 PLUS provides generous component clearance. Graphics cards up to 380mm long can be installed, while CPU air coolers up to 165mm tall are supported. This gives builders considerable freedom when selecting modern graphics cards and tower-style CPU coolers.

Cooling is a major focus of the A23 PLUS. The chassis supports up to three 120mm or two 140mm fans at both the front and top, with an additional 120mm fan position at the rear. Radiator support extends up to 360mm at the front and top, with 120mm radiator support at the rear, allowing the case to accommodate a wide range of air and liquid-cooling configurations.

Four pre-installed ARGB fans add both airflow potential and a distinctive visual element to the finished system. Their lighting can be integrated with ASUS Aura Sync, allowing compatible components and lighting to be coordinated as part of a unified build aesthetic.

The standoff-mounted tempered-glass front panel provides a larger viewing area for the front-mounted ARGB fans. This gives the A23 PLUS a cleaner appearance while making the internal lighting more visible from the front of the system.

Cable management is another area where the A23 PLUS is designed to make building easier. A 33mm-wide compartment behind the motherboard provides dedicated space for routing and concealing cables, helping maintain a cleaner interior and reducing visible cable clutter.

The case also supports ASUS motherboards with hidden connectors, including compatible BTF designs. By allowing compatible connections to be positioned away from the visible side of the motherboard, this feature can contribute to a cleaner-looking build with simplified cable routing.

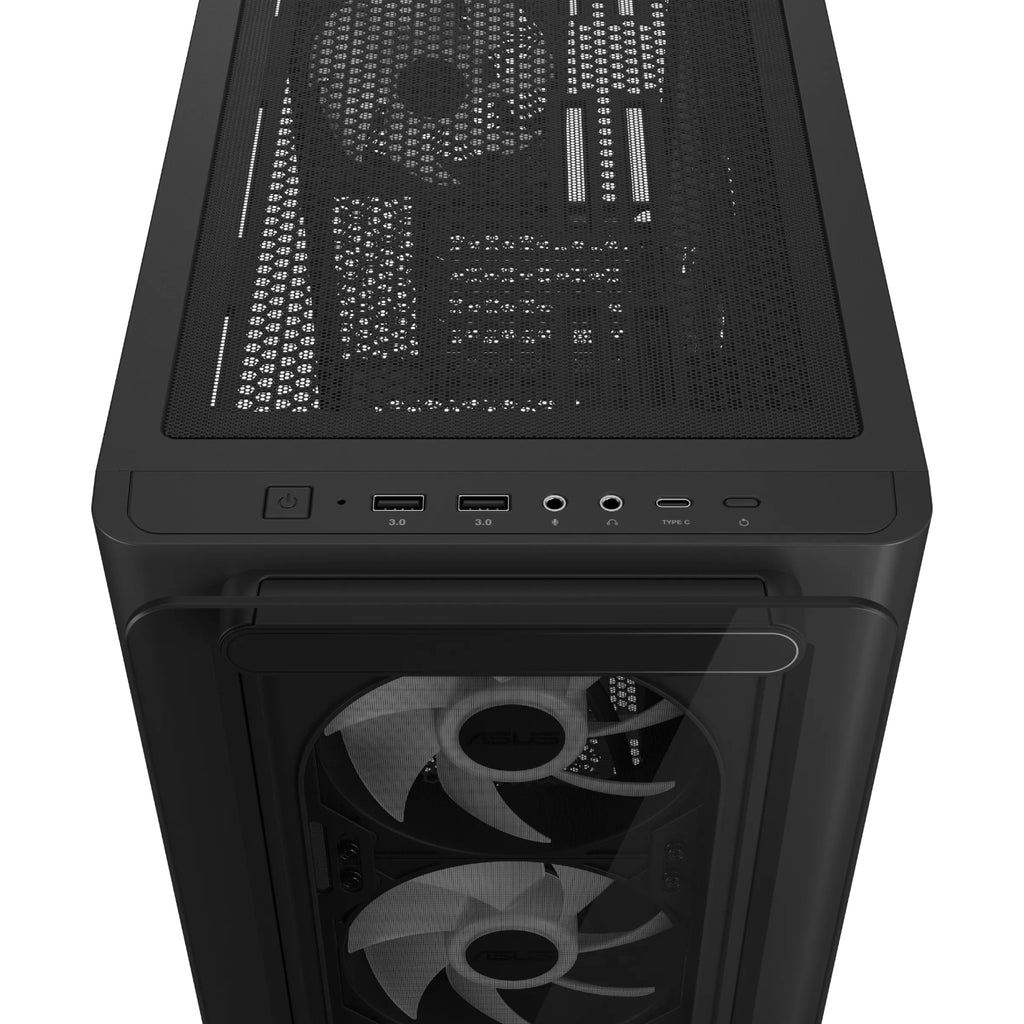

Front connectivity includes a USB 3.2 Gen 2 Type-C port capable of data transfer speeds of up to 10Gbps, alongside two USB 3.2 Gen 1 ports and dedicated headphone and microphone connections. This provides convenient access to modern peripherals and external storage without needing to reach around the back of the PC.

Storage support includes two 2.5-inch/3.5-inch combination bays and an additional dedicated 2.5-inch bay, providing flexibility for both traditional 3.5-inch drives and compact 2.5-inch storage devices. The case also provides five expansion slots for compatible Micro-ATX system configurations.

With its combination of compact dimensions, modern front connectivity, extensive radiator support, generous graphics-card clearance, ARGB lighting and tempered-glass styling, the ASUS A23 PLUS is a strong choice for builders looking to create a clean and capable Micro-ATX gaming or performance PC.

General

Brand: ASUS
Product Model: ASUS A23 PLUS Case
Case Type: Micro-ATX PC Case
Case Colour: Black
Motherboard Support: Mini-ITX, Micro-ATX
Expansion Slots: 5
Dimensions: 479 x 220 x 450 mm
Weight: 8.9kg
BTF Motherboard Compatible: Yes
Aura Sync: ARGB
Tempered Glass: Yes

Front I/O

USB Type-C: 1 x USB 3.2 Gen 2 Type-C
USB Type-A: 2 x USB 3.2 Gen 1
Headphone: 1
Microphone: 1

Cooling Support

Front Fan Support: 3 x 120mm / 2 x 140mm
Top Fan Support: 3 x 120mm / 2 x 140mm
Rear Fan Support: 1 x 120mm
Front Radiator Support: 120mm / 140mm / 240mm / 280mm / 360mm
Top Radiator Support: 120mm / 140mm / 240mm / 280mm / 360mm
Rear Radiator Support: 120mm
Pre-Installed Front Fans: 3 x 120mm ARGB
Pre-Installed Rear Fan: 1 x 120mm ARGB
Total Pre-Installed Fans: 4
Fan Lighting: ARGB

Component Compatibility

Maximum CPU Cooler Height: 165mm
Maximum Graphics Card Length: 380mm
Maximum Power Supply Length: 210mm
Motherboard Form Factors: Mini-ITX, Micro-ATX
Expansion Slots: 5

Storage Support

2.5-inch / 3.5-inch Drive Bays: 2 x Combo Bay
2.5-inch Drive Bays: 1 x Bay

Cable Management

Cable Management Space: 33mm
Hidden-Connector Motherboard Support: Yes

What's Included

ASUS A23 PLUS PC Case
Pre-Installed ARGB Fans: 4
Tempered-Glass Front Panel

Items returned within 7 days of their original shipment date in same as new condition will be eligible for a full refund or exchange. Refunds will be charged back to the original form of payment used for purchase.

At Microhard Technologies PTY LTD we follow a streamlined 7-step process to ensure efficient resolution and optimal enduser support:

1.Remote Diagnosis:
Initially, we attempt to resolve the issue remotely, typically by guiding the customer through software updates or installations to address any software-related concerns.

2. Collection
If a hardware defect is suspected, we arrange for the collection of the product directly from the customer's location using a nationwide courier network, ensuring minimal inconvenience to the customer.

3. Inspection & Testing
Upon arrival at our facility, we verify the suspected hardware issue within 48 hours. In addition, we perform comprehensive stress tests to identify any other potential hardware problems that may not have been reported by the customer. The customer is regularly updated on the status of the evaluation.

4. Repair:
Once the hardware issue is confirmed, we send the product to an authorized repair center, such as Pinnacle Micro or Mustek, for thorough repairs.

5. Completion and Verification
After the repair is completed, we collect the product within 24 hours and perform a final stress test to confirm the issue has been fully resolved.

6. Customer Notification
The customer is promptly notified when their product is ready for return.

7. Return Shipping
The repaired product is sent back to the customer at no additional cost, ensuring a hassle-free experience.

This efficient process ensures that customers receive timely support and that their products are repaired to the highest standards.

Discover Hidden Potential

The ASUS A23 PLUS is a PC case crafted for minimalist mainstream DIY PC builders, with support for a variety of AIO coolers and graphics cards, and the four pre-installed ARGB fans provide plenty of airflow potential to keep things running smoothly.

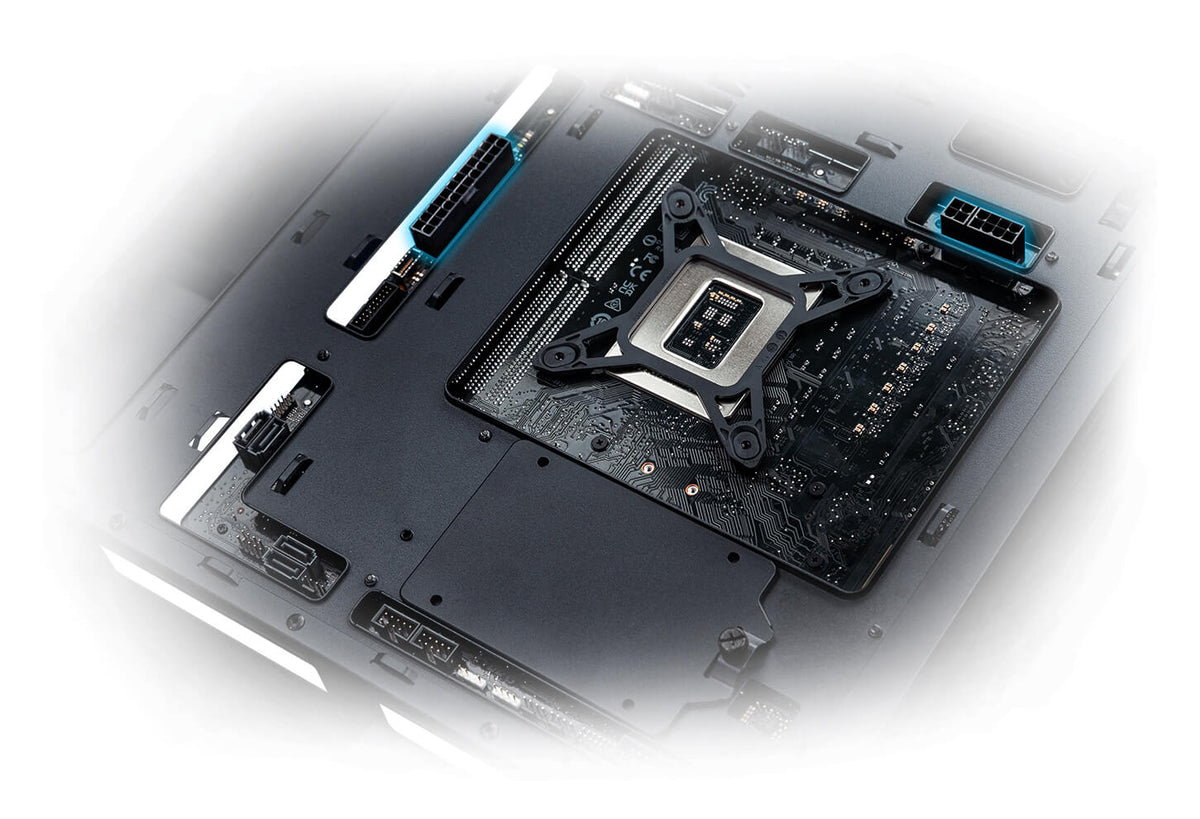

Hidden Connectors

In addition to supporting conventional mini-ITX and micro-ATX motherboards, the A23 PLUS is also compatible with the TUF GAMING B760M-BTF WIFI, whose innovative connectors and headers are located on the underside to maximize clean cable management.

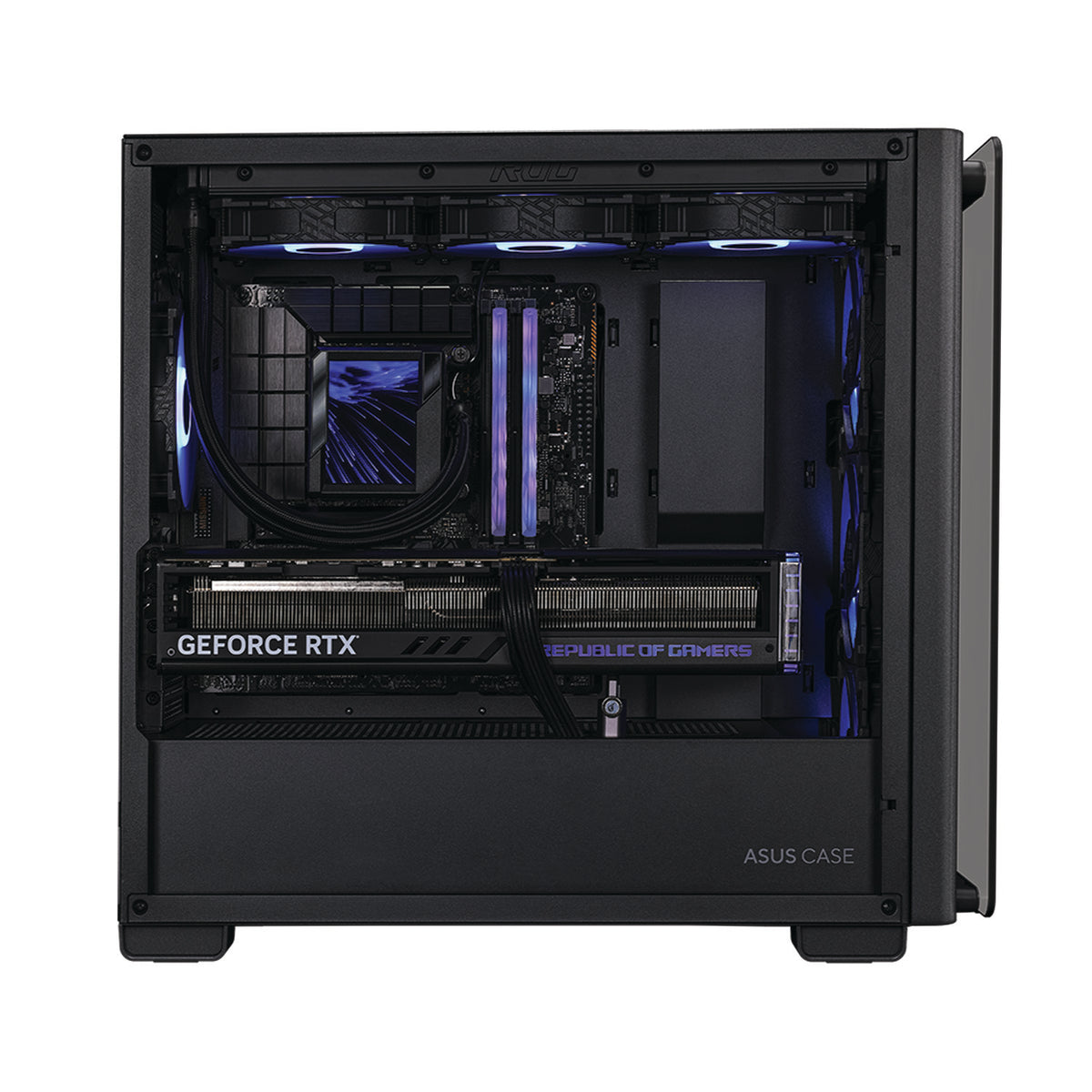

Broad Compatibility

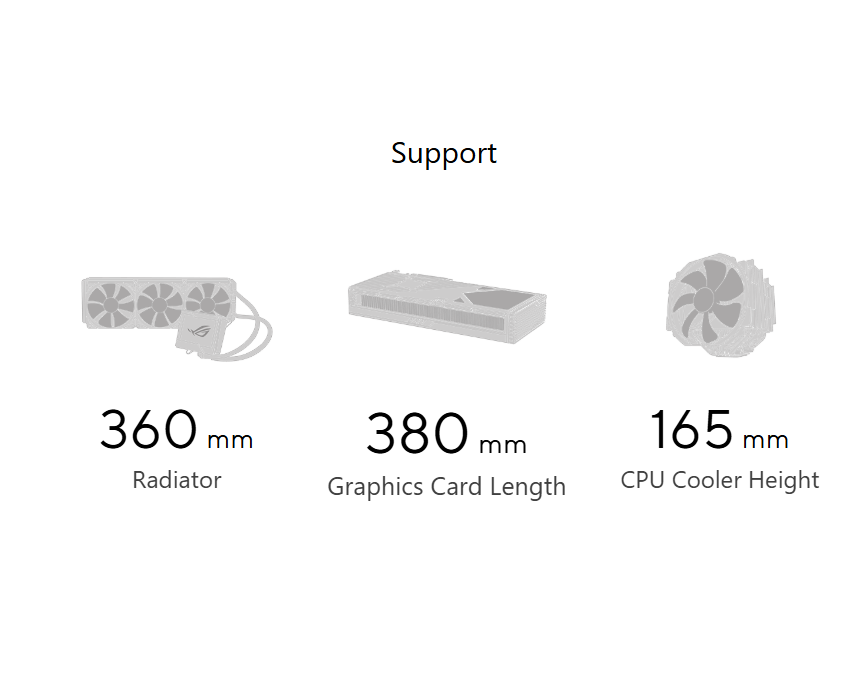

Despite being a micro-ATX case, the A23 PLUS still supports up to 360 mm radiators, graphics cards up to 380 mm long, and CPU coolers up to 165 mm tall, giving builders plenty of options to assemble their next PC.

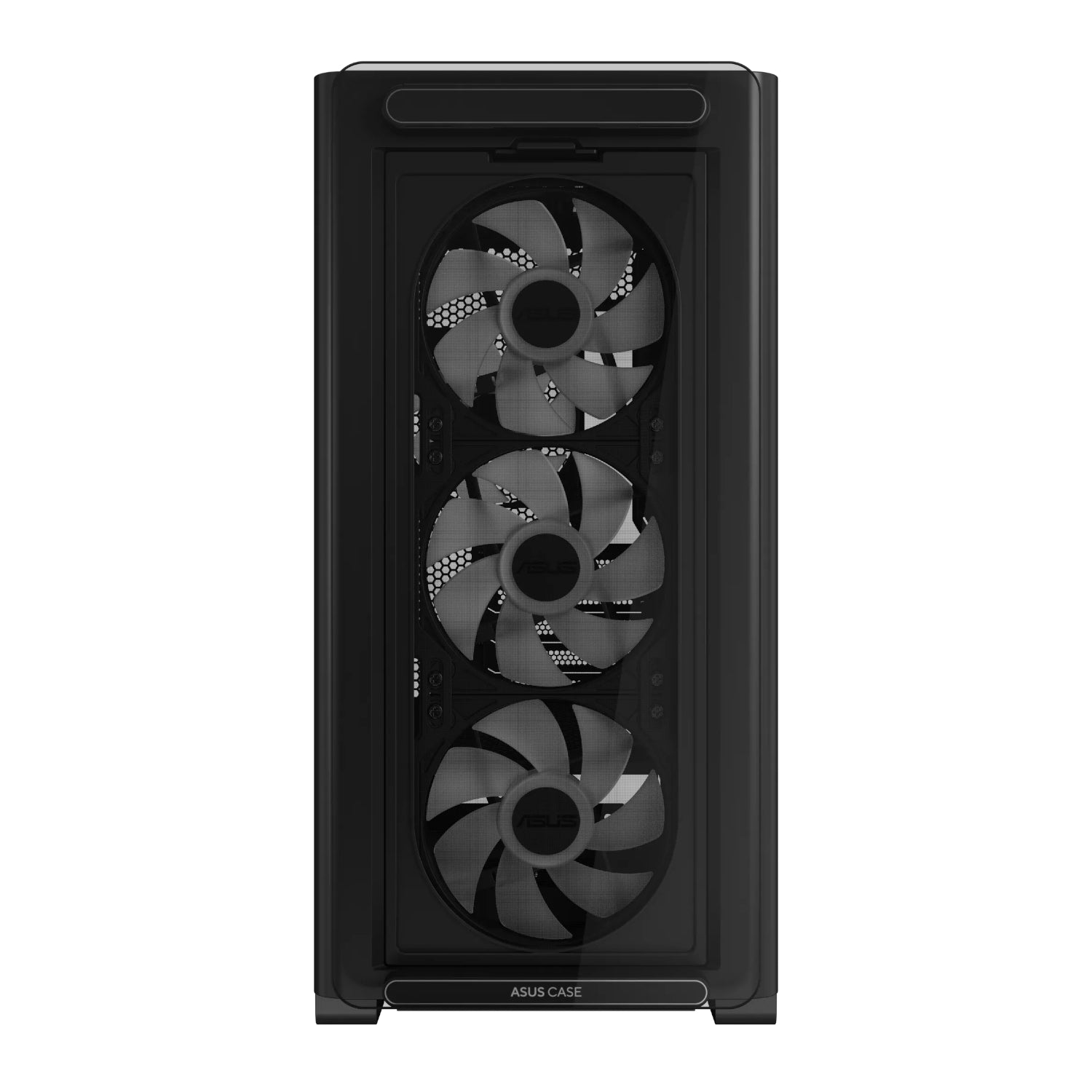

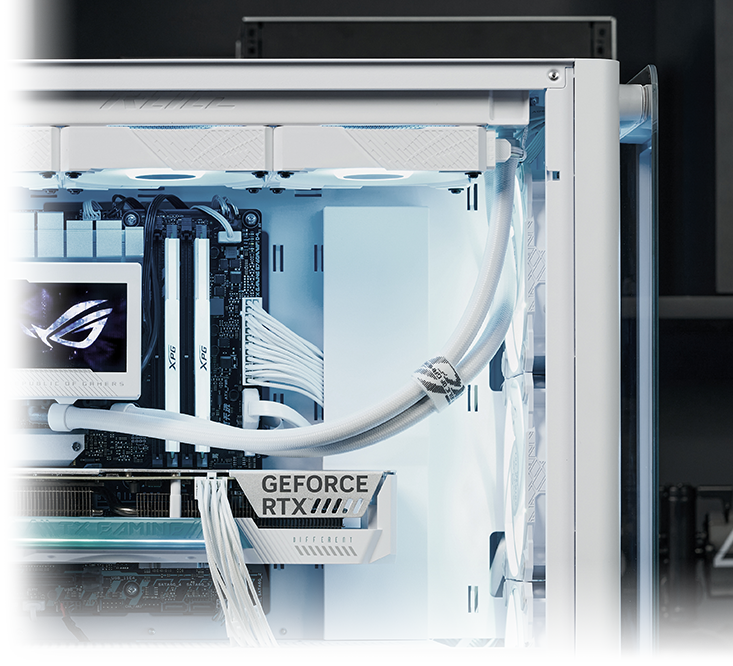

Standoff-mounted tempered-glass front panel

The ASUS A23 series showcases rounded tempered glass with increased thickness and exceptional scratch resistance. This enlarged window design allows users to fully enjoy the captivating visuals of the front ARGB fans.

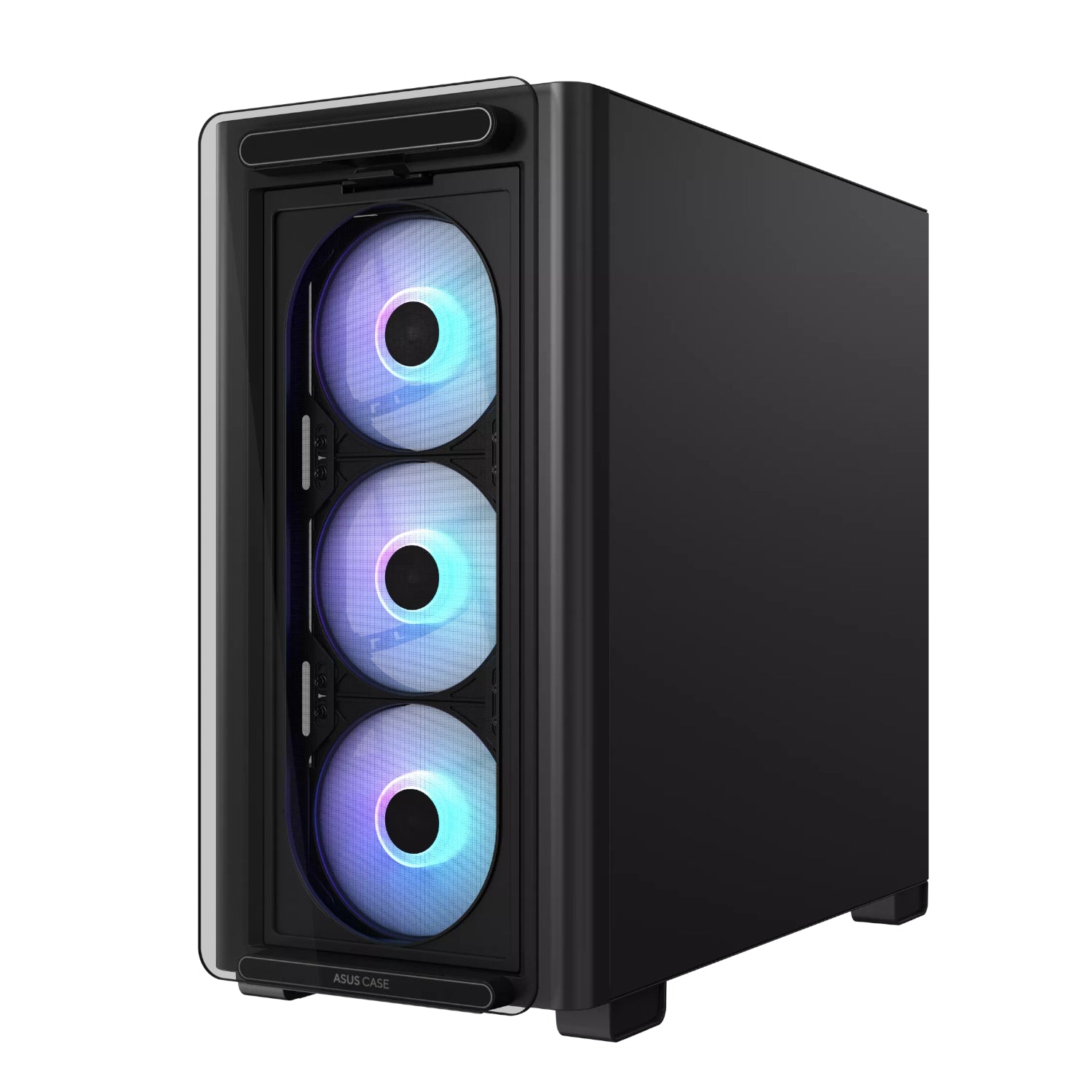

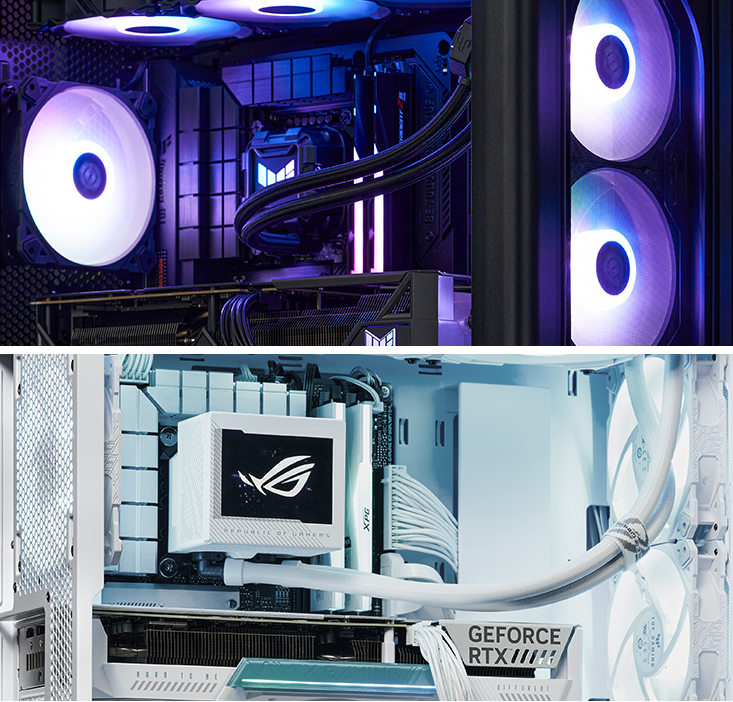

Four Pre-Installed ARGB Fans

Experience premium cooling and dynamic lighting with four pre-installed ARGB fans. This mesmerizing display of vibrant lighting enhances both functionality and aesthetics.

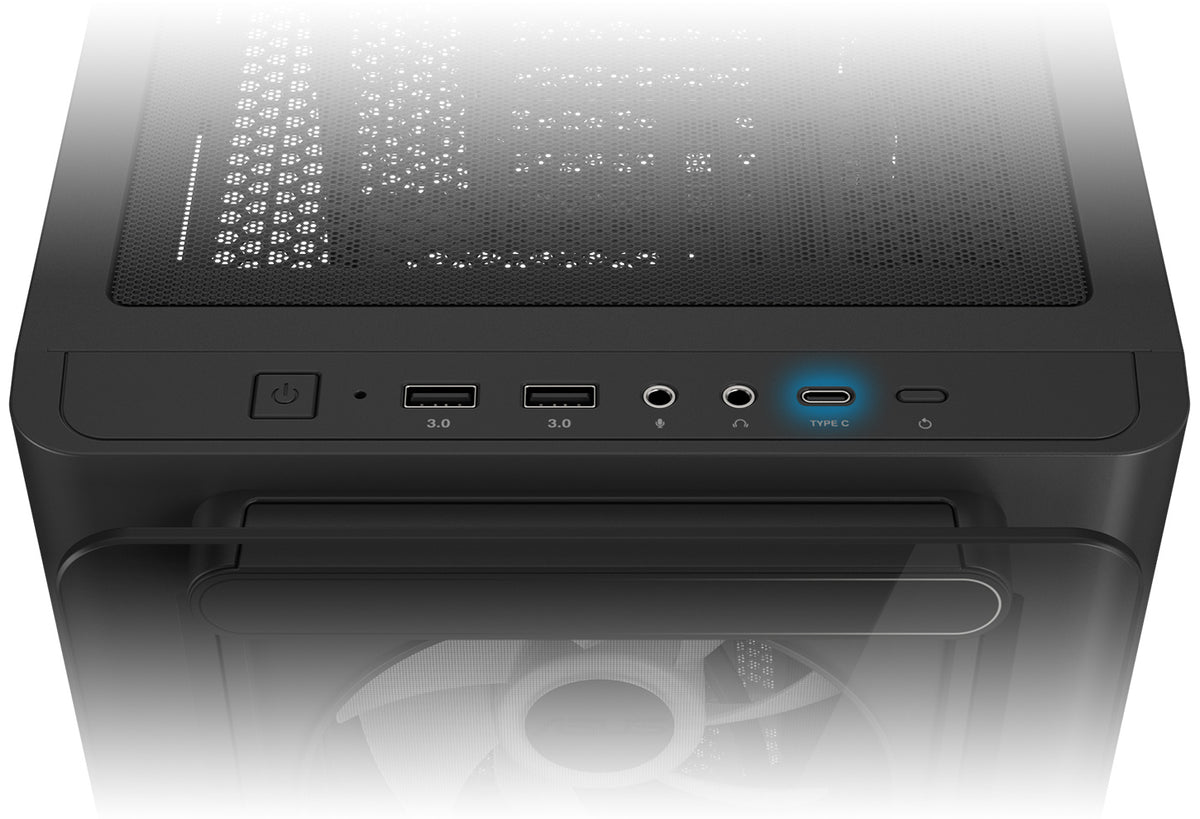

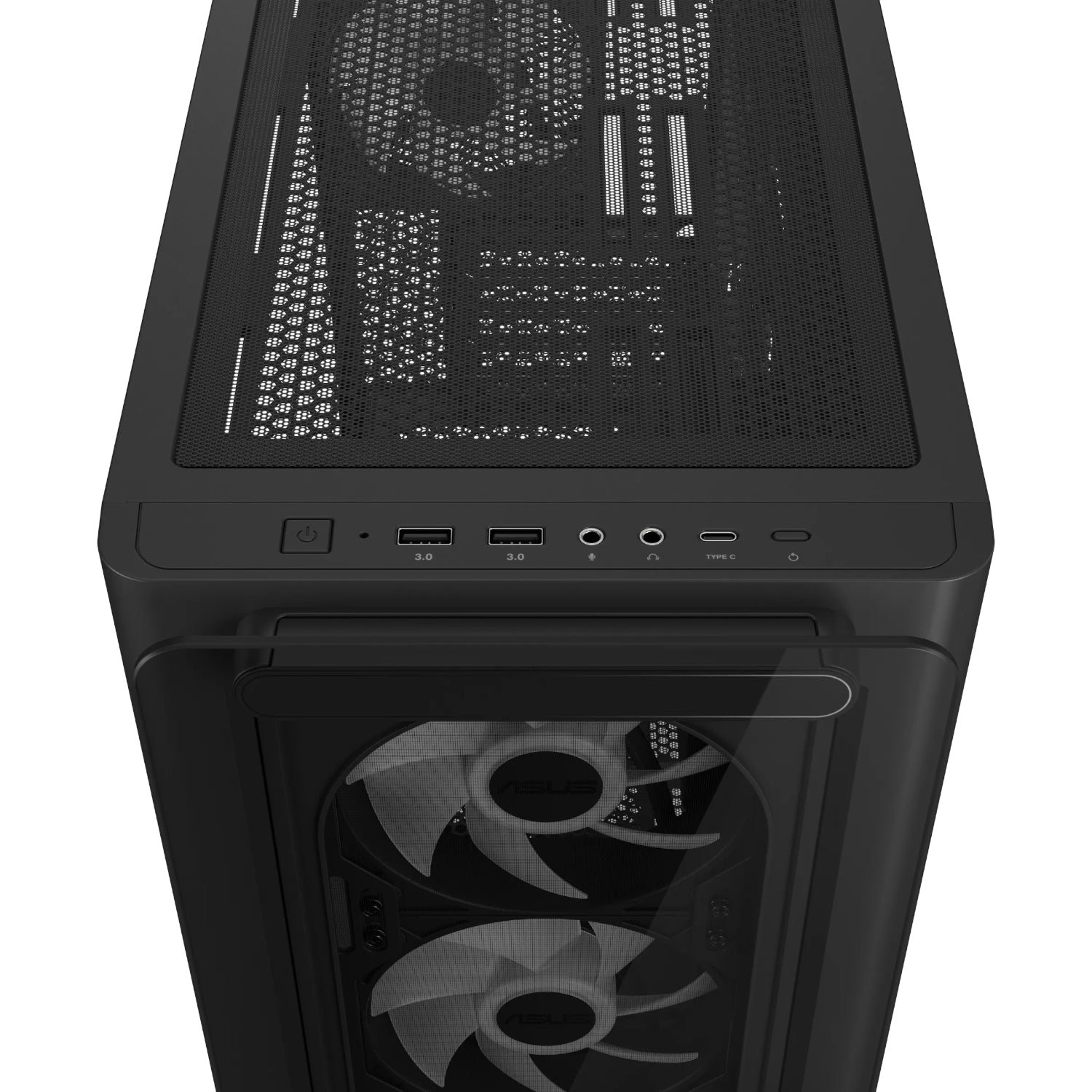

Front Panel USB TYPE-C

In addition to two USB-A ports, the A23 PLUS front I/O features a USB 10Gbps Type-C® port ripe for transfer speeds up to 10 Gbps.
