R 2,499.00

VAT included.

● In Stock With Supplier
AVAILABLE — Ships in 3–5 Days

Quick Info

ASUS Prime AP202 ARGB Micro-ATX PC case
Supports Micro-ATX and Mini-ITX motherboards
Curved panoramic tempered-glass panel
Easy-detach rail with anti-drop mechanism
Patented graphics-card slot vent
Supports graphics cards up to 420mm
Three pre-installed 120mm ARGB fans
Integrated ARGB light band
Aura Sync compatibility
Supports top-mounted 360mm radiators
Supports up to nine 120mm fans
CPU cooler clearance up to 175mm
PSU clearance up to 200mm
20Gbps USB Type-C connectivity
30mm cable-management space

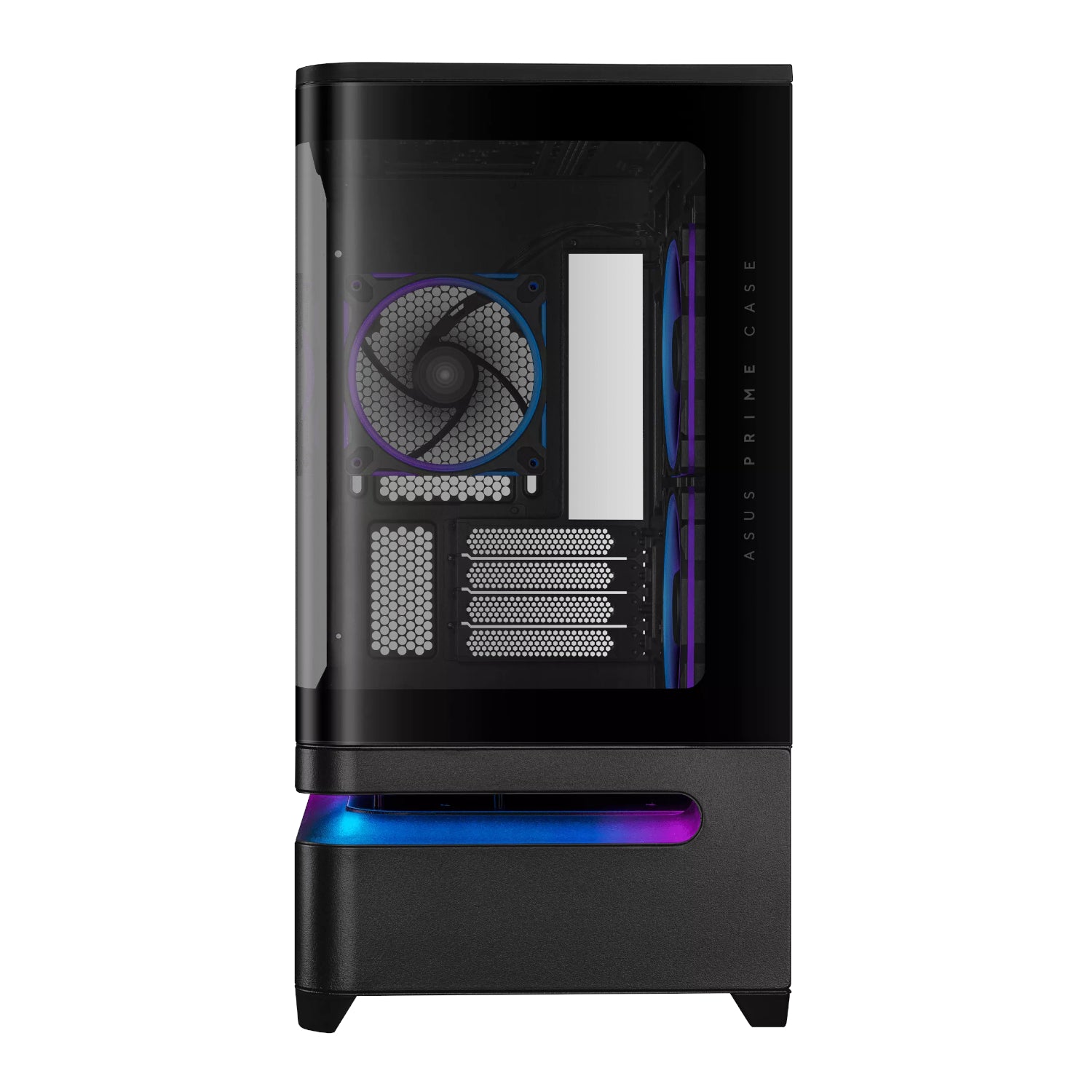

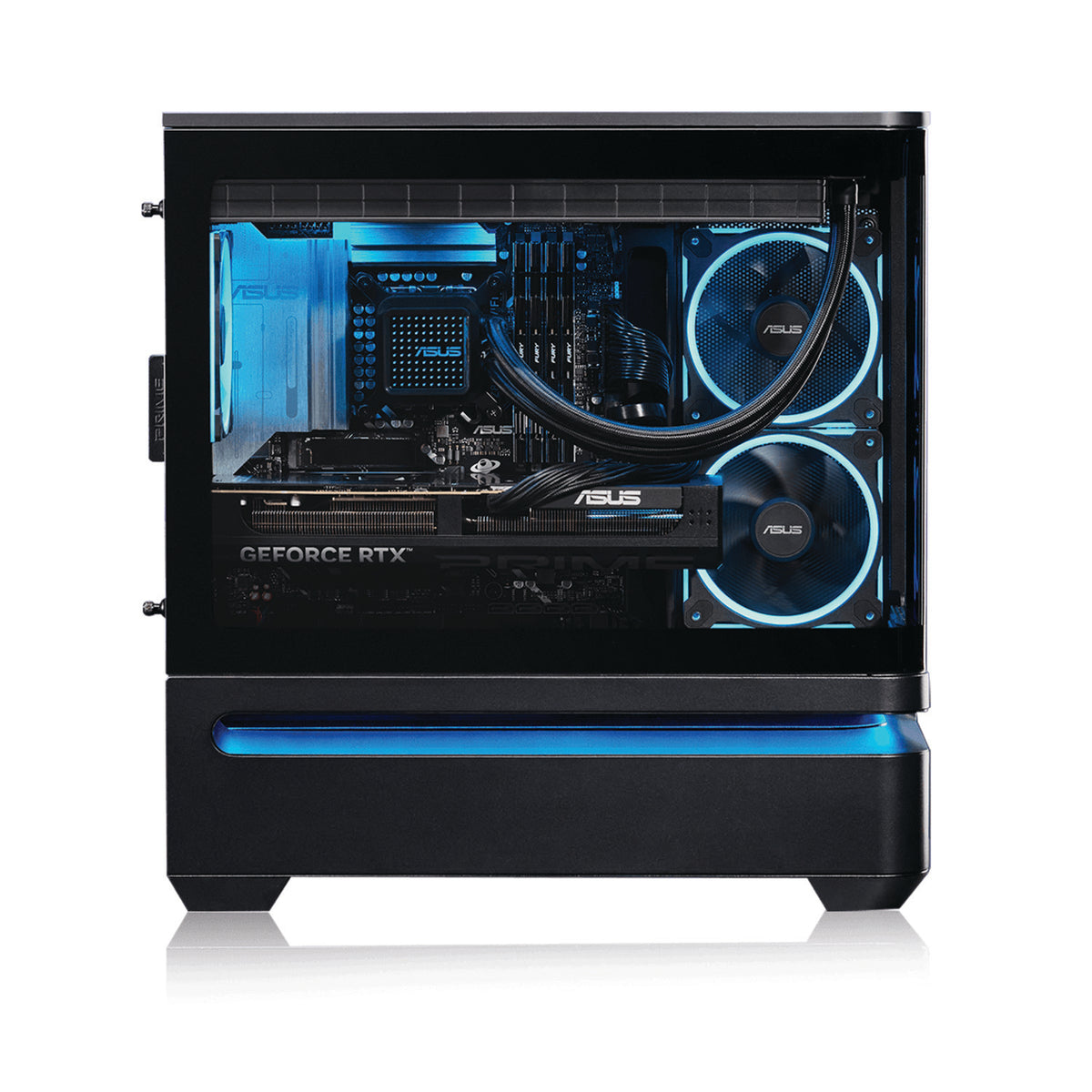

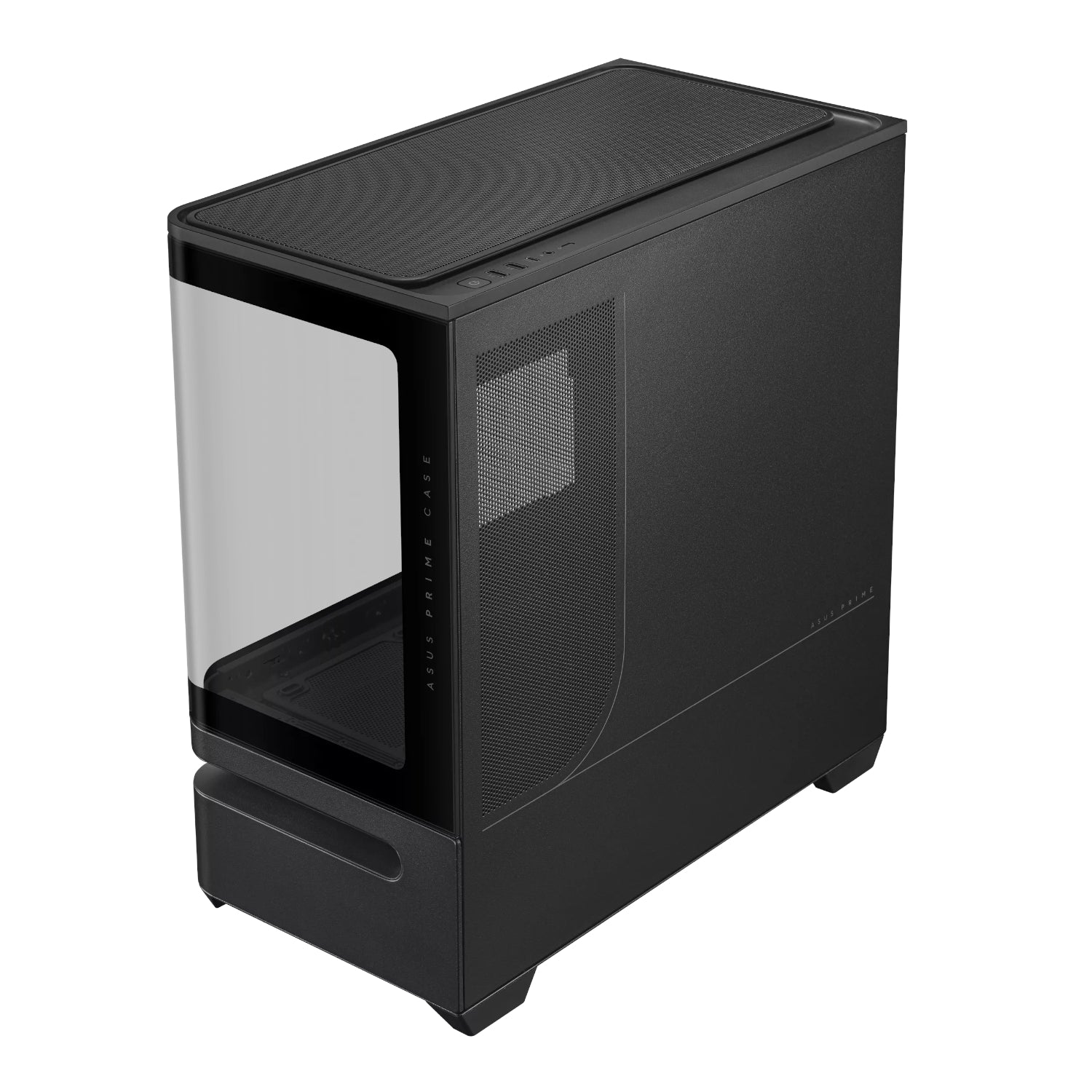

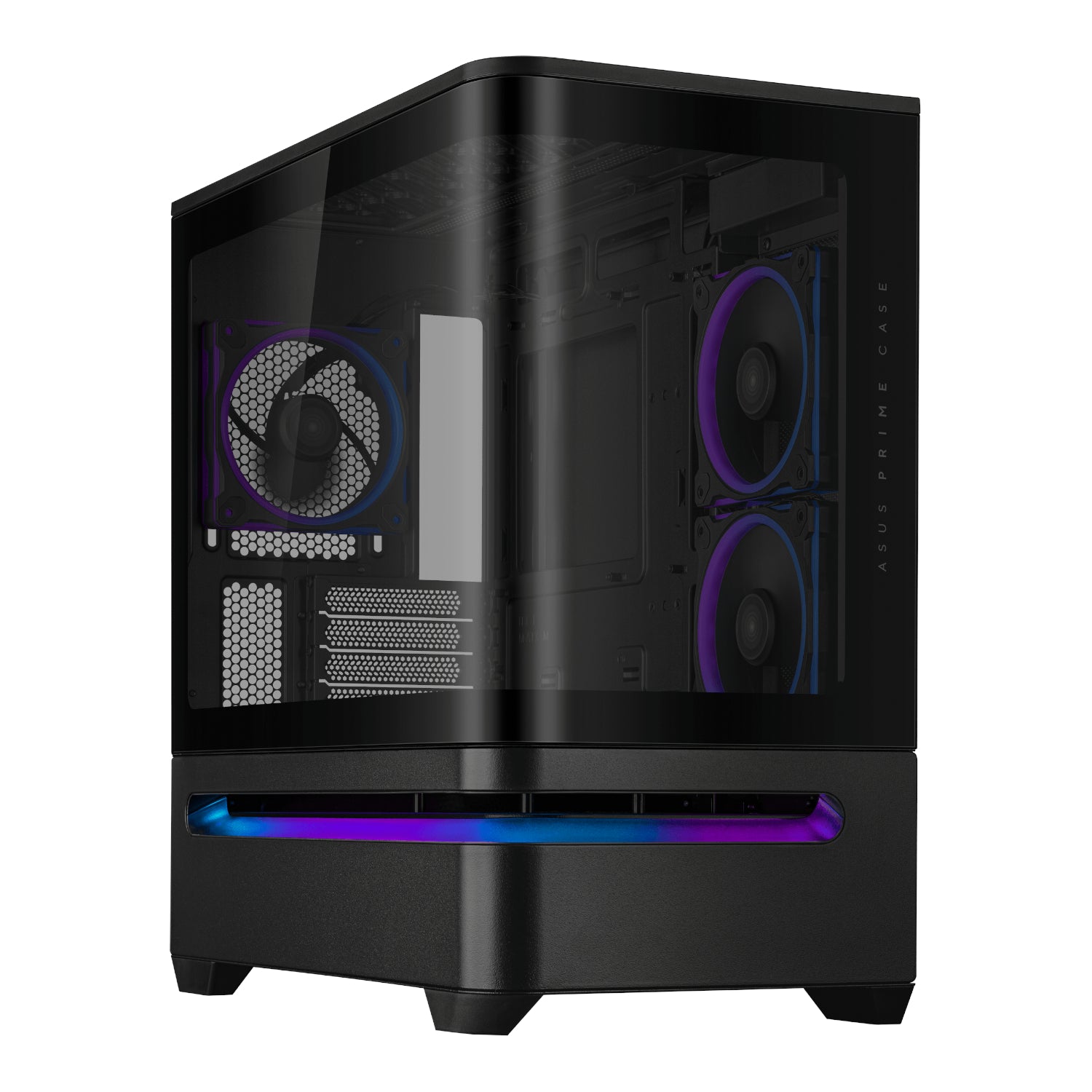

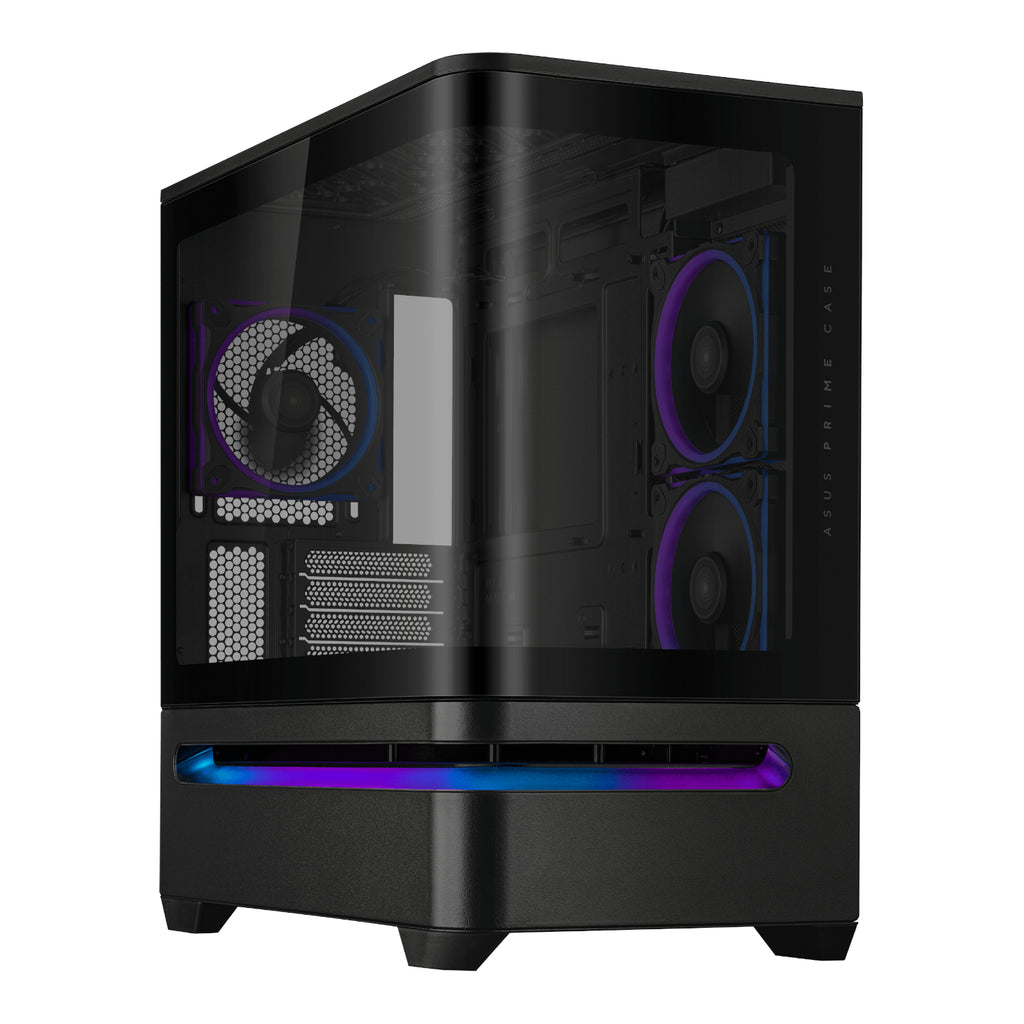

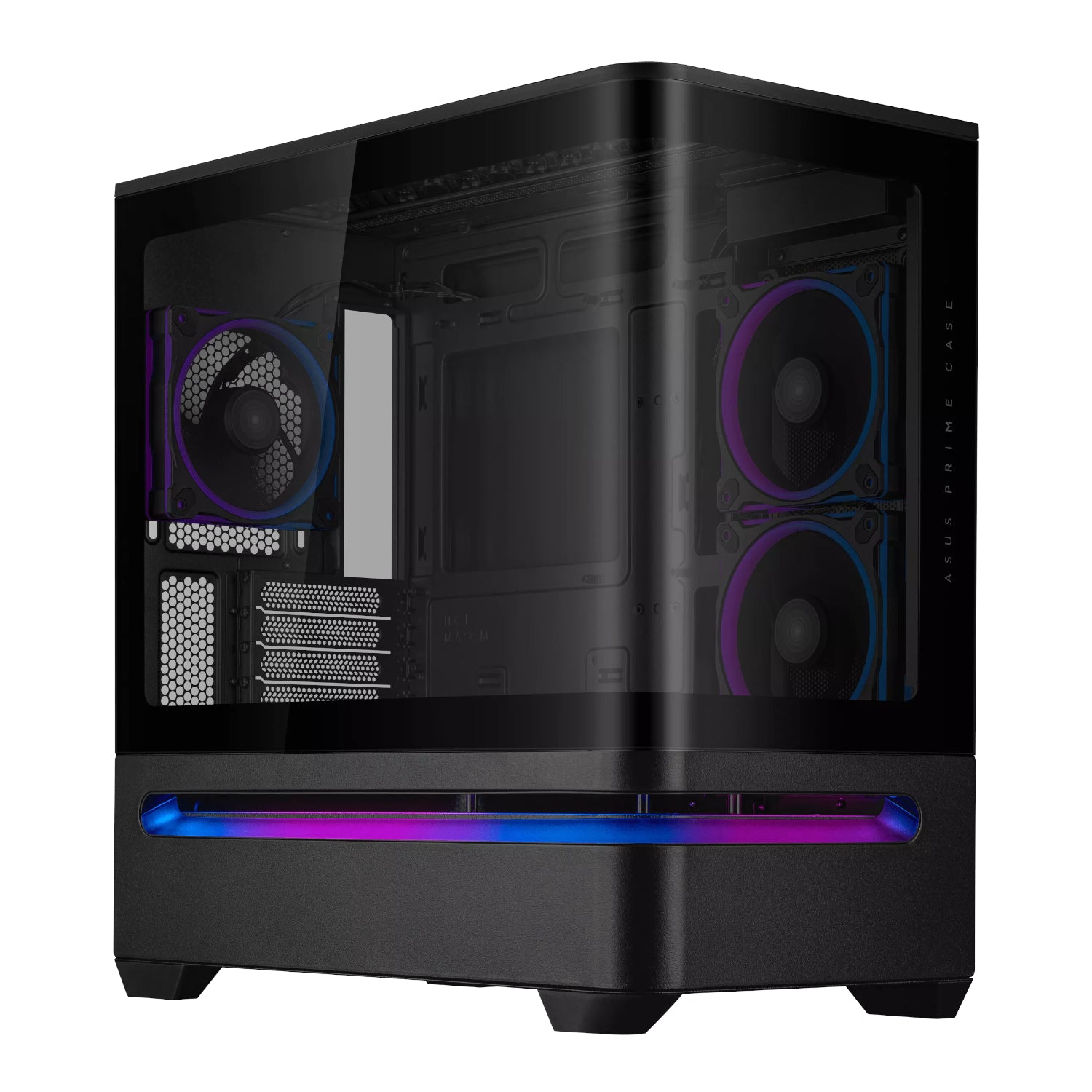

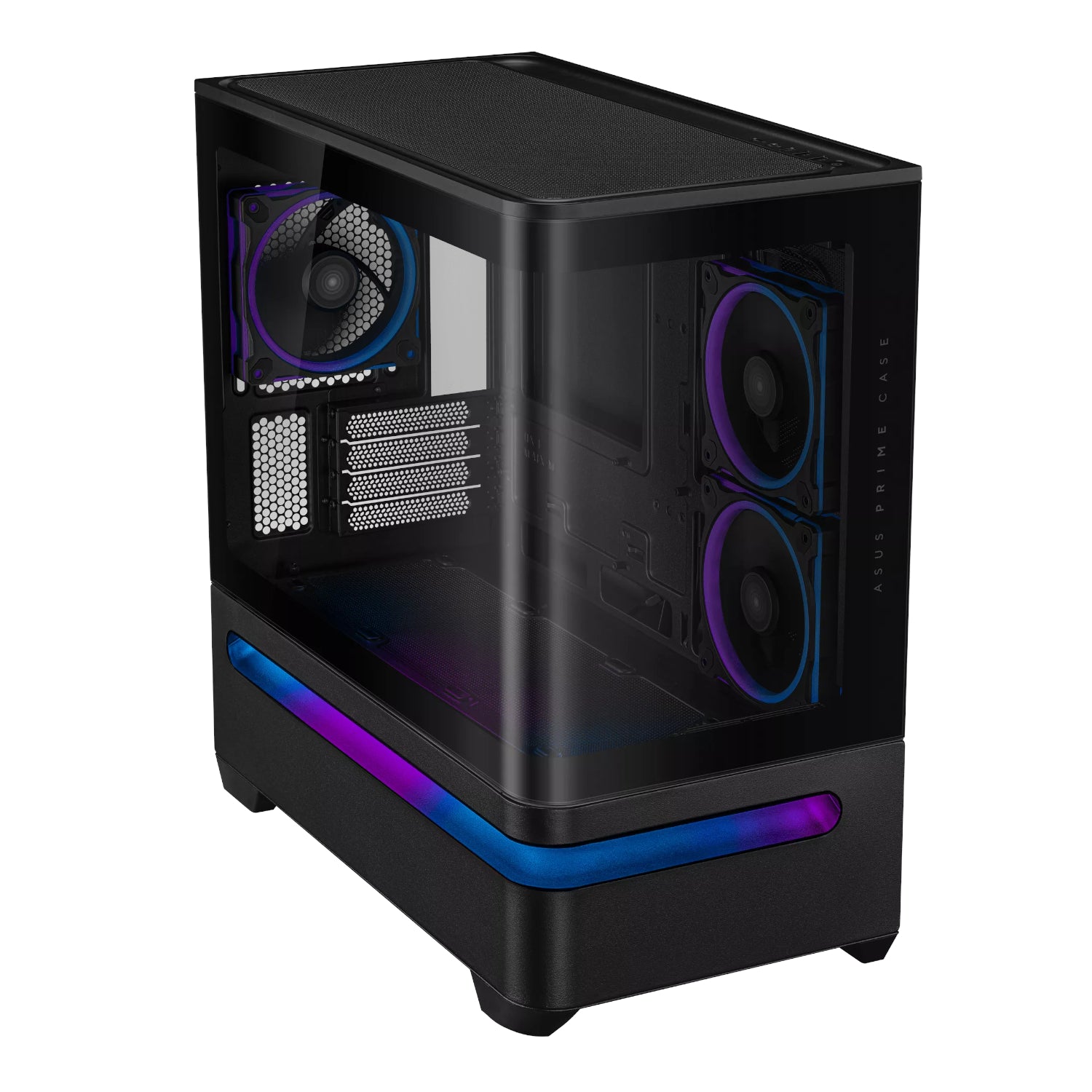

The ASUS Prime AP202 ARGB is a compact Micro-ATX PC case designed for builders who want a showcase-style chassis without moving to a full-sized ATX enclosure. Its panoramic curved tempered-glass panel wraps from the front to the side of the case, providing a wide view of the internal components and making the finished PC a prominent part of a desk setup.

Despite its compact Micro-ATX format, the AP202 ARGB provides generous hardware compatibility. It supports both Micro-ATX and Mini-ITX motherboards, graphics cards up to 420mm long, CPU air coolers up to 175mm tall and power supplies up to 200mm long. This gives builders considerable freedom when selecting performance-focused components.

Cooling is a major focus of the design. ASUS uses a patented slot-vent arrangement to introduce airflow into the lower section of the chassis, helping provide additional cooling for the graphics card. The case can accommodate a top-mounted radiator up to 360mm and supports up to nine 120mm fans in total, allowing users to build systems with substantial airflow capacity.

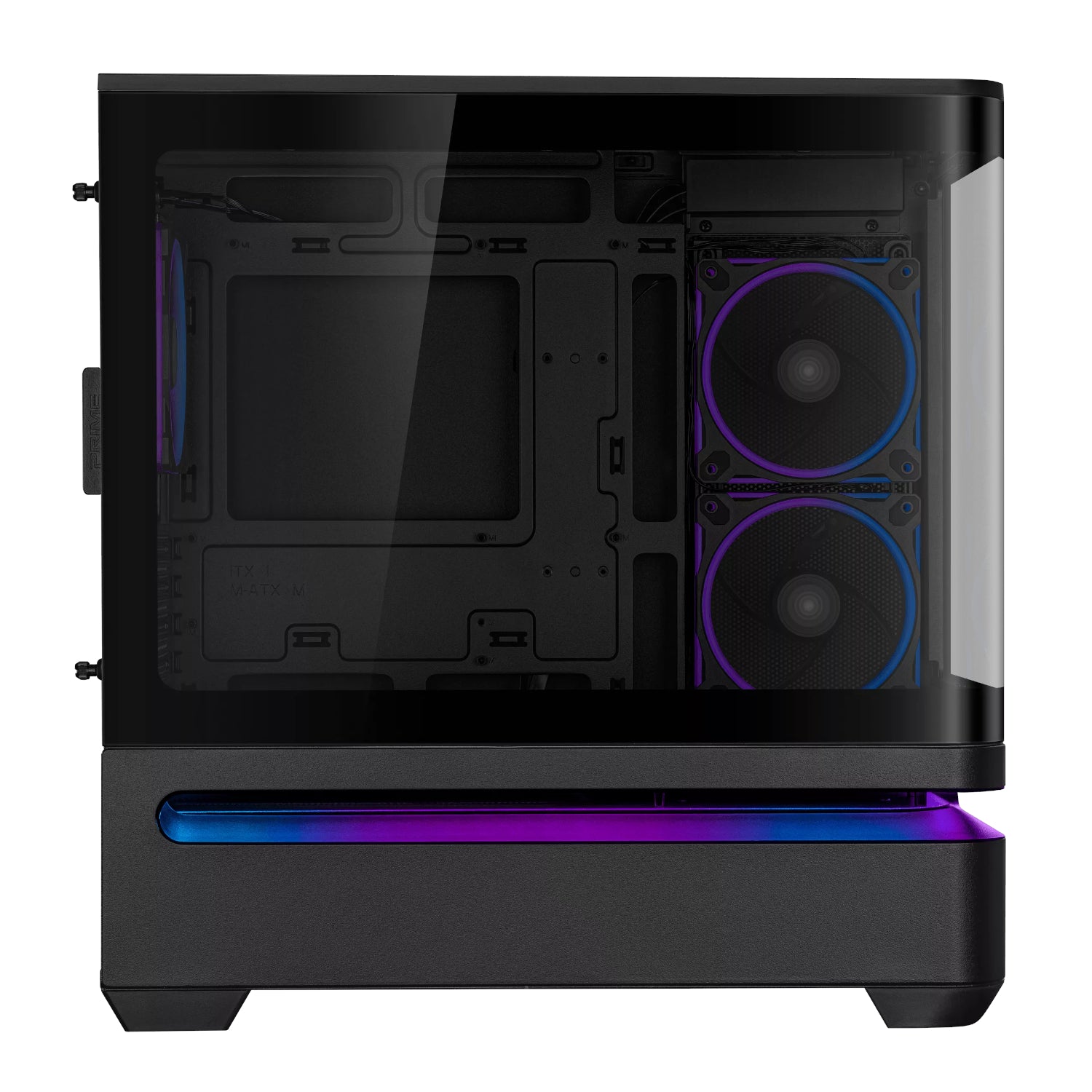

The AP202 ARGB arrives with three pre-installed 120mm ARGB fans. Two are positioned on the side and one at the rear, providing a useful starting point for system cooling without requiring a separate set of case fans immediately. The included fans feature extra-thick 28mm frames and 20 addressable RGB LEDs, while the integrated ARGB light band adds additional illumination to the exterior of the build.

The panoramic tempered-glass panel is designed to make component installation and maintenance more convenient. ASUS incorporates an easy-detach rail and anti-drop mechanism to help make removing and reinstalling the curved panel safer and simpler. The glass itself is produced through a multi-stage process involving cutting, edge grinding, heat treatment, bending, inspection and safety evaluation.

Connectivity is handled through the top-mounted front I/O panel, including a USB Type-C port capable of transfer speeds up to 20Gbps, alongside two USB 3.2 Gen 1 ports and a combined headphone/microphone connection. The case also uses a unified front I/O header to simplify connecting the front-panel cables to a compatible motherboard.

Cable management is supported by a dedicated 30mm space behind the motherboard, giving builders room to route and conceal power and front-panel cables. This is particularly useful in a panoramic case where visible cable clutter can detract from the appearance of the completed system.

With support for modern graphics cards, large CPU coolers, 360mm radiators, multiple fans and high-speed USB-C connectivity, the ASUS Prime AP202 ARGB offers a strong balance between compact dimensions and high-performance hardware compatibility. It is particularly well suited to gaming PCs, enthusiast Micro-ATX builds and showcase systems where cooling, component visibility and clean presentation are all important.

General

Brand: ASUS
Product Family: Prime
Model: ASUS Prime AP202 ARGB
Product Type: Micro-ATX PC Case
Case Format: Micro-ATX
Supported Motherboards: Micro-ATX, Mini-ITX
Colour Options: Black
Dimensions: 441 × 236 × 460mm
Weight: 9kg

Motherboard Support

Micro-ATX: Supported
Mini-ITX: Supported

Graphics Card Support

Maximum GPU Length: 420mm
Graphics Card Airflow Feature: Patented lower slot vent

CPU Cooling Support

Maximum CPU Cooler Height: 175mm
Maximum Top Radiator Size: 360mm

Case Cooling

Maximum Supported 120mm Fans: 9
Top Fan Support: 3 × 120mm or 2 × 140mm
Side Fan Support: 2 × 120mm
Rear Fan Support: 1 × 120mm
Pre-Installed Side Fans: 2 × 120mm ARGB
Pre-Installed Rear Fan: 1 × 120mm ARGB
Total Pre-Installed Fans: 3 × 120mm ARGB
Fan Frame Thickness: 28mm
Fan Lighting: Addressable RGB
Fan LEDs: 20 ARGB LEDs per fan
Integrated ARGB Light Band: Yes
Lighting Ecosystem: ASUS Aura Sync

Radiator Support

Top Radiator Support: Up to 360mm
Top 120mm Radiator Support: Yes
Top 140mm Radiator Support: Yes

Storage

2.5-inch / 3.5-inch Combo Bays: 2

Expansion

Expansion Slots: 4

Front I/O

USB Type-C: 1 × USB 3.2 Gen 2x2
USB Type-C Maximum Transfer Rate: Up to 20Gbps
USB Type-A: 2 × USB 3.2 Gen 1
Audio: 1 × Headphone / Microphone Combo

Power Supply Support

Maximum PSU Length: 200mm
PSU Form Factor: Not specified by ASUS on the official specification page

Cable Management

Maximum Cable Management Space: 30mm
Unified Front I/O Header: Yes

Panels & Construction

Side Panel: Curved Tempered Glass
Front Panel: Curved Tempered Glass
Tempered Glass Coverage: Front-to-side panoramic design
Side Panel Removal: Easy-detach rail
Panel Safety Feature: Anti-drop mechanism
Dust Filters: Top and Bottom removable filters

Lighting

Integrated ARGB Light Band: Yes
Addressable RGB Support: Yes
ASUS Aura Sync: Supported

What's Included

ASUS Prime AP202 ARGB PC Case
3 × 120mm ARGB Pre-Installed Fans

Items returned within 7 days of their original shipment date in same as new condition will be eligible for a full refund or exchange. Refunds will be charged back to the original form of payment used for purchase.

At Microhard Technologies PTY LTD we follow a streamlined 7-step process to ensure efficient resolution and optimal enduser support:

1.Remote Diagnosis:
Initially, we attempt to resolve the issue remotely, typically by guiding the customer through software updates or installations to address any software-related concerns.

2. Collection
If a hardware defect is suspected, we arrange for the collection of the product directly from the customer's location using a nationwide courier network, ensuring minimal inconvenience to the customer.

3. Inspection & Testing
Upon arrival at our facility, we verify the suspected hardware issue within 48 hours. In addition, we perform comprehensive stress tests to identify any other potential hardware problems that may not have been reported by the customer. The customer is regularly updated on the status of the evaluation.

4. Repair:
Once the hardware issue is confirmed, we send the product to an authorized repair center, such as Pinnacle Micro or Mustek, for thorough repairs.

5. Completion and Verification
After the repair is completed, we collect the product within 24 hours and perform a final stress test to confirm the issue has been fully resolved.

6. Customer Notification
The customer is promptly notified when their product is ready for return.

7. Return Shipping
The repaired product is sent back to the customer at no additional cost, ensuring a hassle-free experience.

This efficient process ensures that customers receive timely support and that their products are repaired to the highest standards.

ASUS Prime AP202 ARGB

The ASUS Prime AP202 ARGB is a versatile panoramic mATX chassis designed to showcase system components with style. A curved tempered glass panel extends seamlessly from the front to the side, offering spectacular views of components from almost any angle. A patented slot vent provides optimal cooling for the graphics card, and an integrated ARGB light band works seamlessly with Aura Sync.

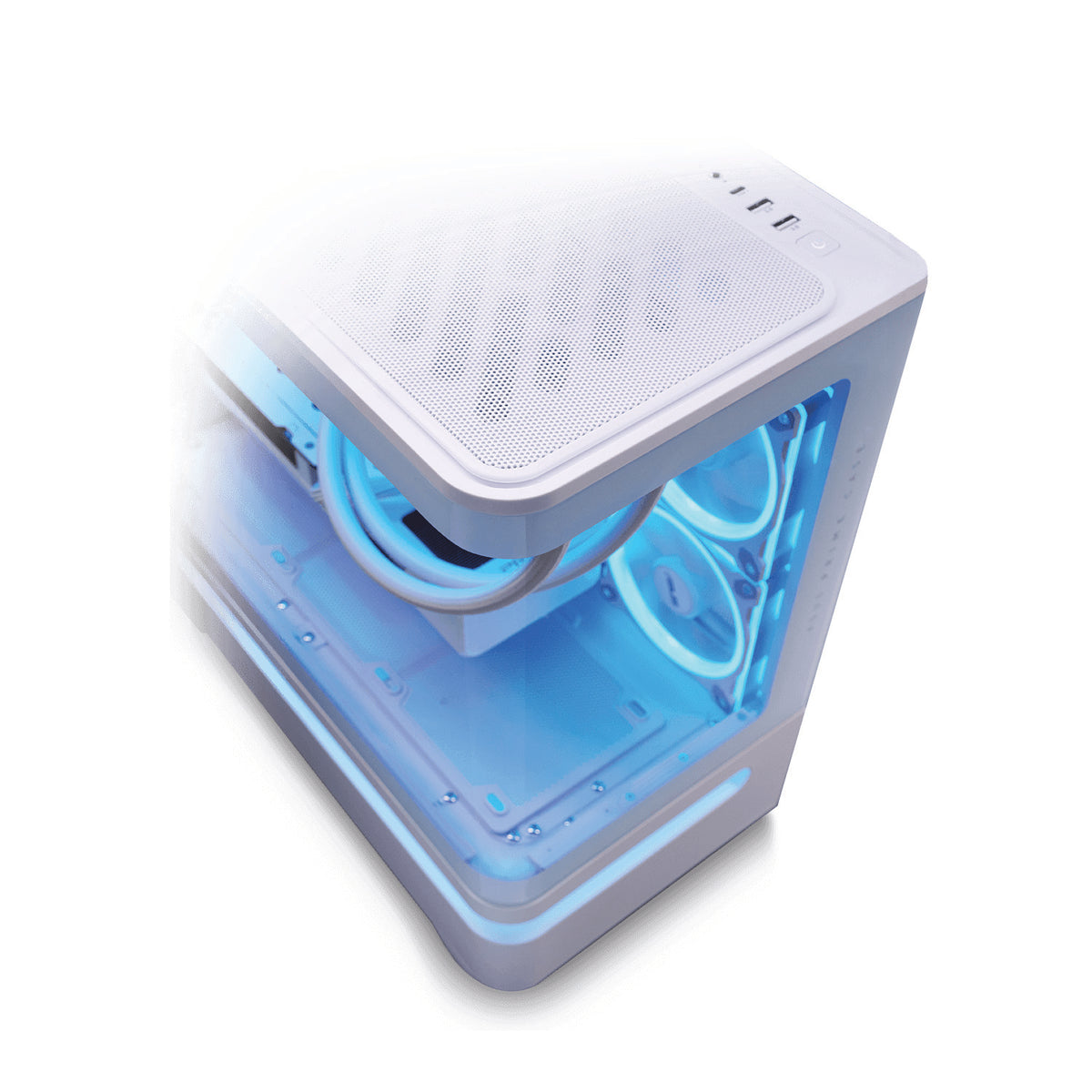

Curved Tempered Glass

See the Difference

Views through the curved tempered glass that stretches across two sides of the case show internal components from multiple angles. This glass undergoes a five-stage process that approaches aerospace standards, including thermal treatment that gives it superior strength and durability. This technique helps ensure reliable protection while elevating the DIY experience, offering users an immersive and refined foundation for their build.

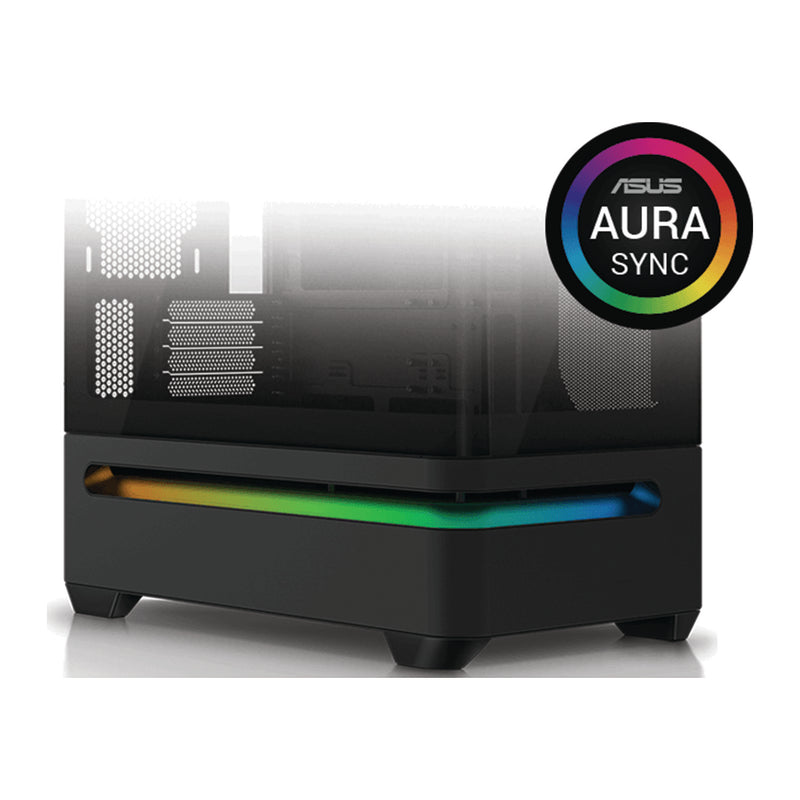

Ambient Lighting

An integrated ARGB light band near the bottom of case provides spectacular lighting effects, with Aura Sync adapting seamlessly to unique user scenarios. Customize whatever colors you want to make your PC build shine.

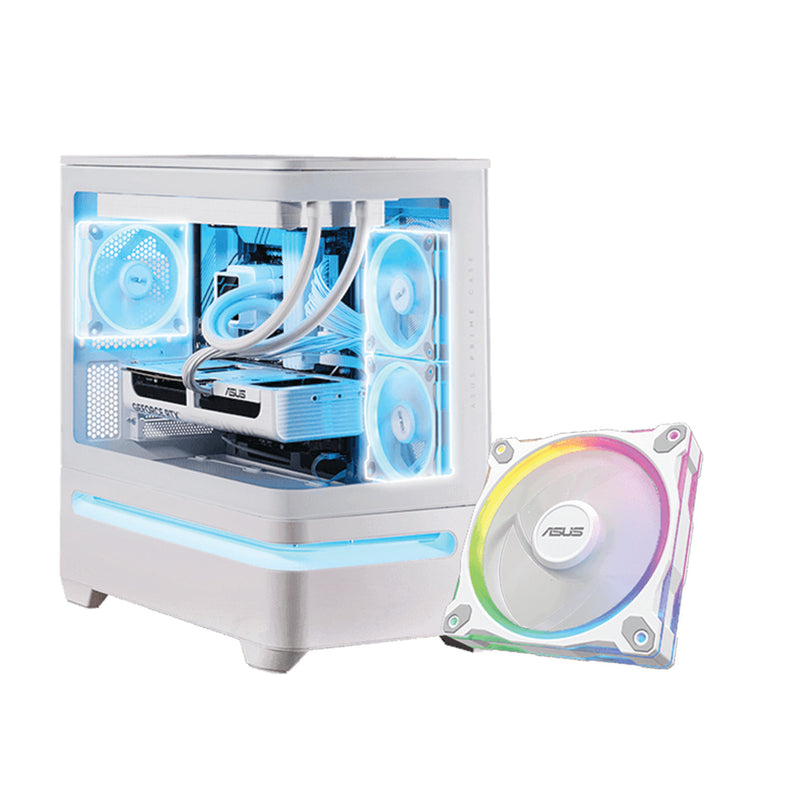

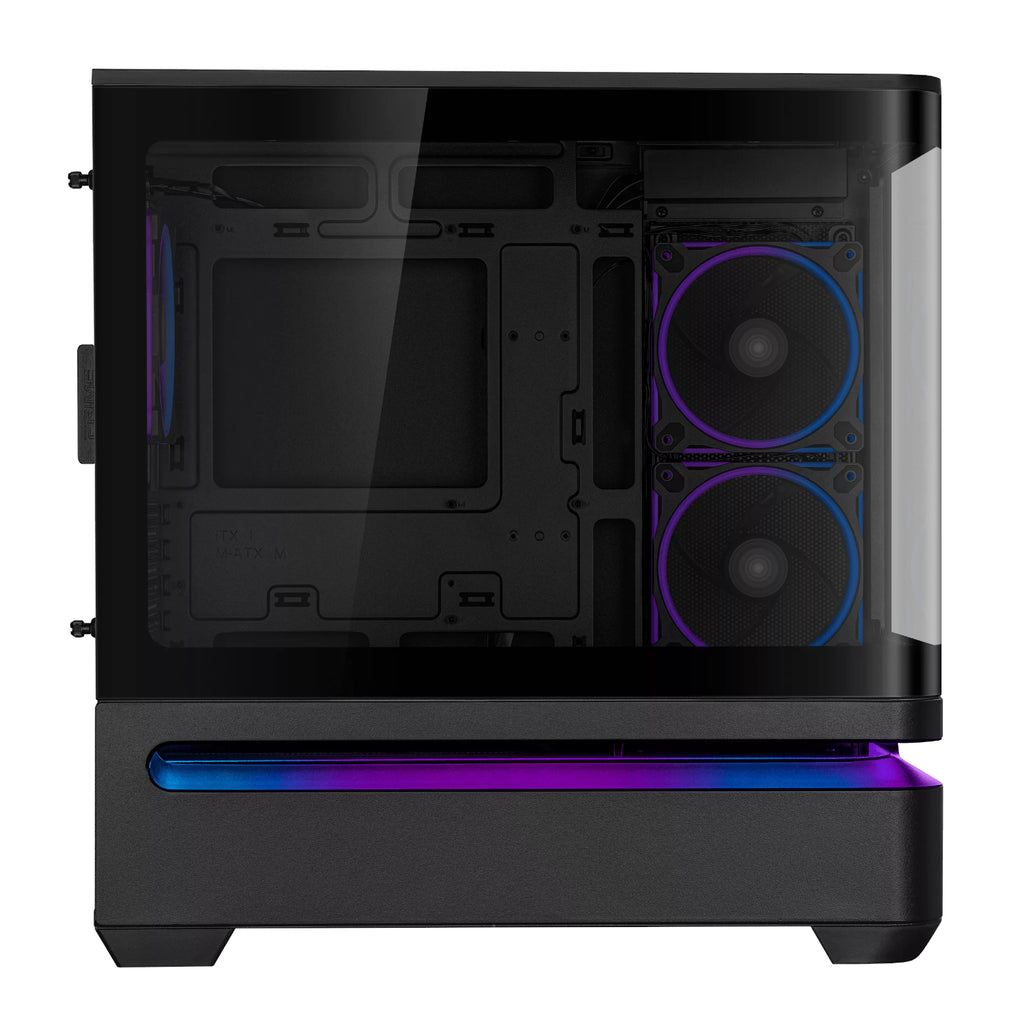

Three Pre-Installed ARGB Fans

Three pre-installed 120mm ARGB fans with extra-thick 28mm frames yield optimal airflow and integrate 20 addressable RGB LEDs with a dual lighting design along the side of the frame, uniquely illuminating your system.

Easy-Detach Rail

The curved glass panel features a easy-detach rail, making removal and reattachment safe and simple.

Unique Design

Patented Slot Vent

An innovative airflow design offers ideal thermal performance, letting air in to cool mission-critical components, especially the graphics card.

BROAD Compatibility

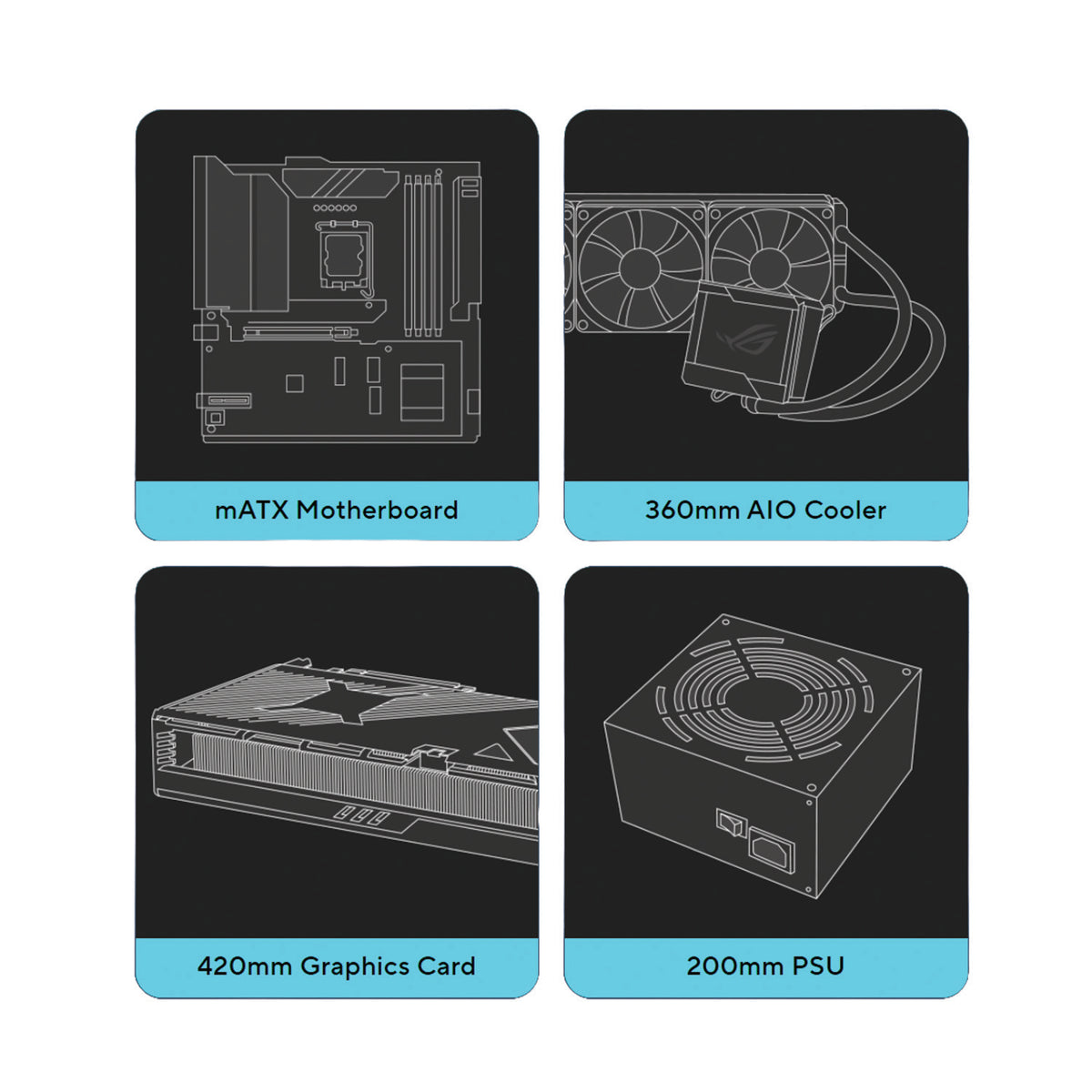

The AP202 ARGB supports graphics cards up to 420mm long, radiators up to 360mm long, PSU length up to 200mm and CPU air coolers up to 175mm tall, giving builders plenty of options for assembling their next PC. It also offers ample space to install up to nine 120mm fans.

ASUS Prime AP202 ARGB Micro-ATX PC Case | Curved Tempered Glass | 420mm GPU Support | 360mm Radiator | 3× ARGB Fans | USB-C 20Gbps - Black
