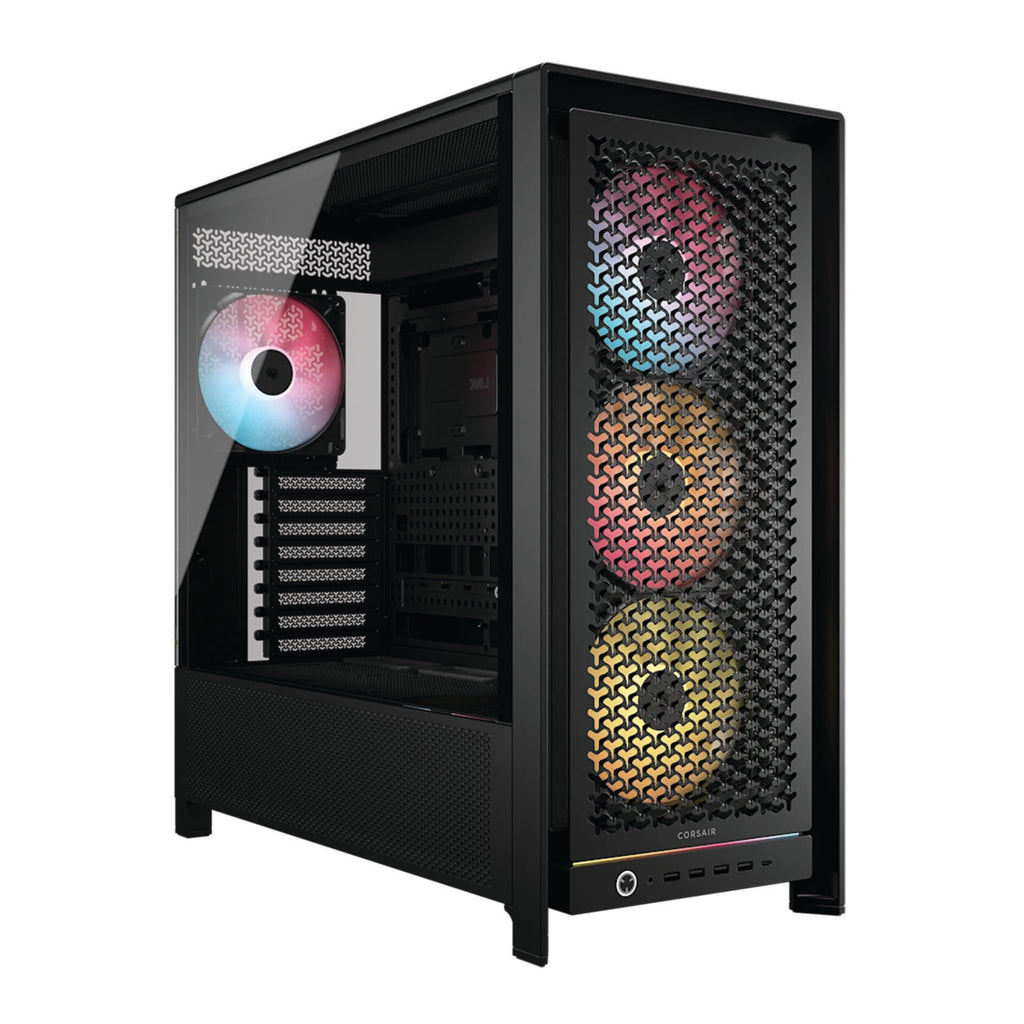

Corsair FRAME 5000D RS ARGB High-Airflow Mid-Tower PC Case
Pickup currently not available
General
Product Name: CORSAIR FRAME 5000D RS High-Airflow Mid-Tower PC Case
Model Number: CC-9011309-WW
Product Type: Mid-Tower PC Case
Series: FRAME
Colour: Black
Chassis Material: Steel
Side Panel: Tempered Glass

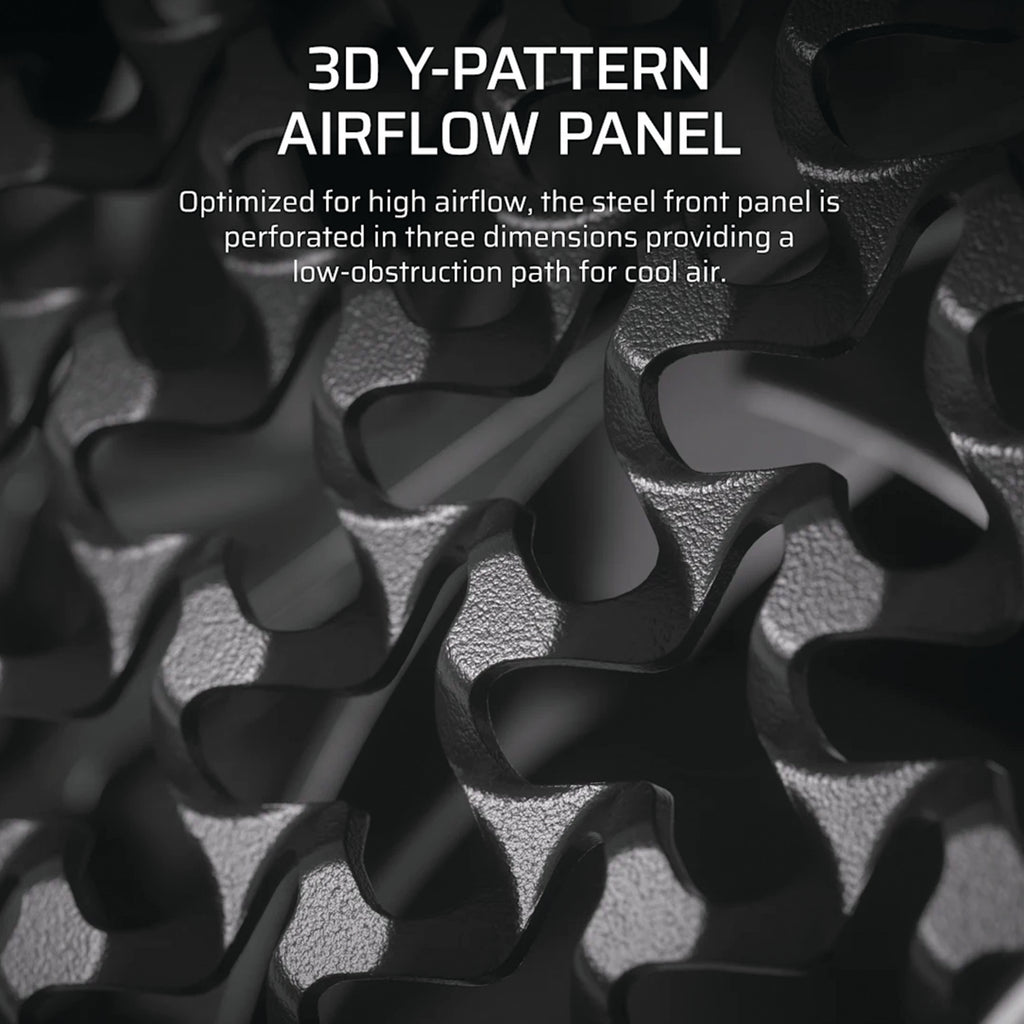

Front Panel: High-Airflow Steel Mesh
Modular Design: Yes

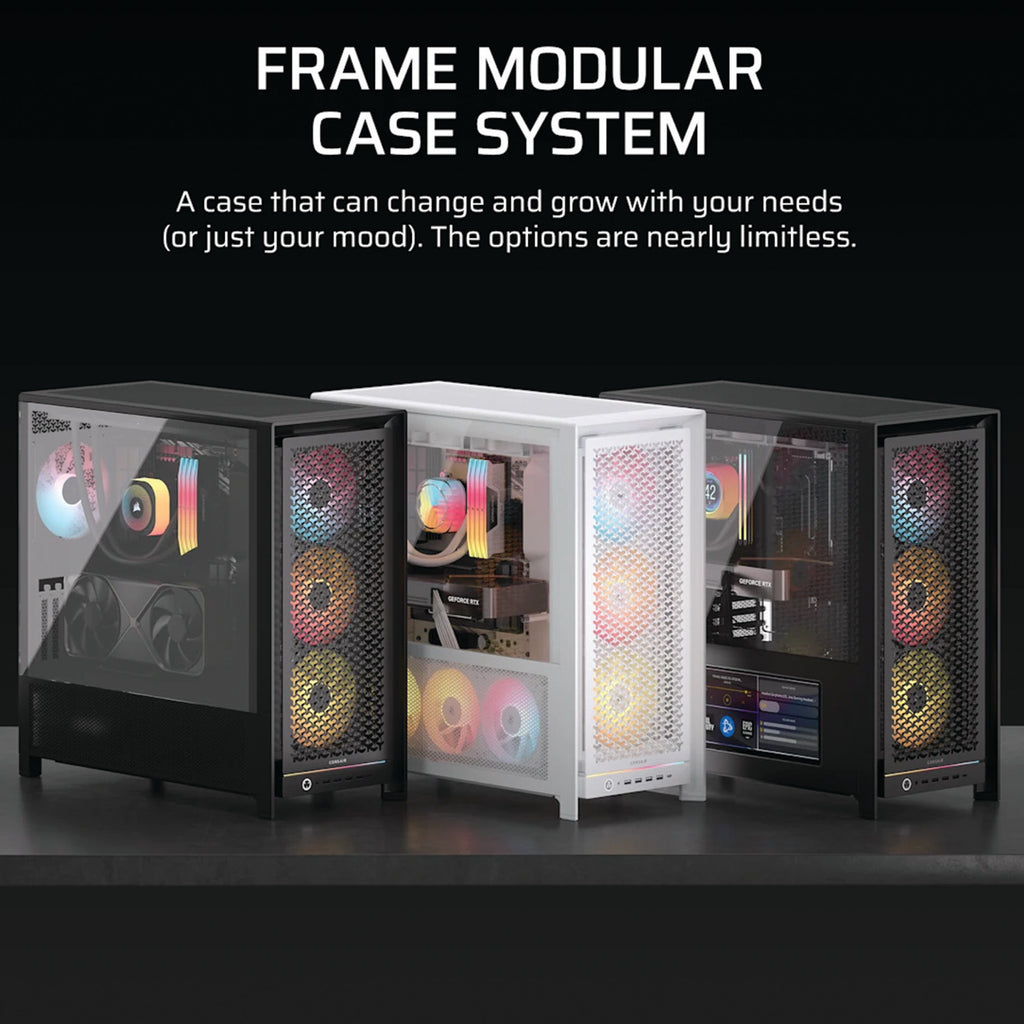

FRAME Modular Case System: Supported
Motherboard Compatibility
Supported Motherboard Sizes: Mini-ITX
Supported Motherboard Sizes: Micro-ATX
Supported Motherboard Sizes: ATX
Supported Motherboard Sizes: E-ATX

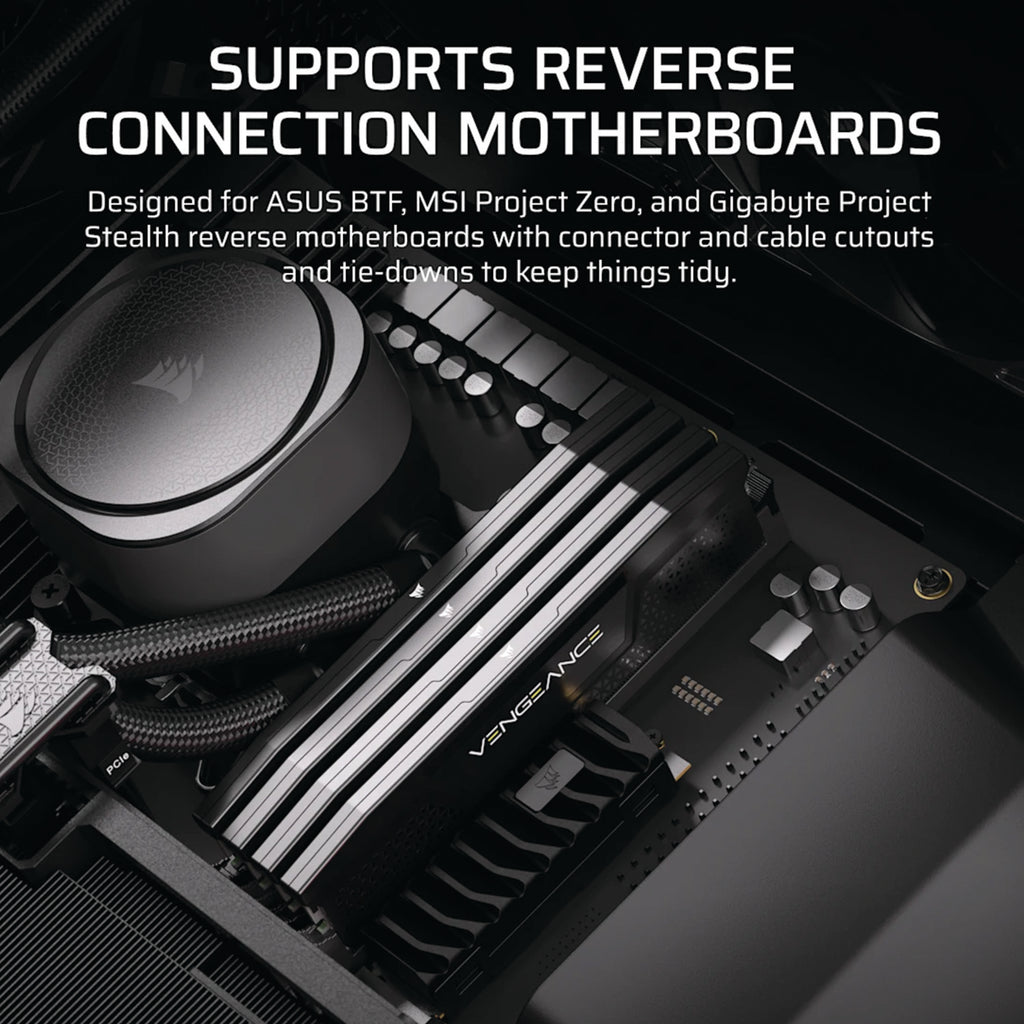

Reverse Connector Motherboard Support: Yes (ASUS BTF, MSI Project Zero and Gigabyte Project STEALTH compatible)
Drive Bays
3.5-inch Drive Bays: Up to 2
2.5-inch SSD Mounts: Up to 6
Tool-Free Drive Installation: Yes
Expansion Slots
Expansion Slots: 7 Horizontal
Vertical GPU Mount Support: Yes (Riser cable sold separately)
Graphics Card Compatibility
Maximum GPU Length: Up to 450 mm
CPU Cooler Compatibility
Maximum CPU Cooler Height: Up to 175 mm
Power Supply Compatibility
PSU Support: ATX
Maximum PSU Length: Up to 250 mm
Cooling Support

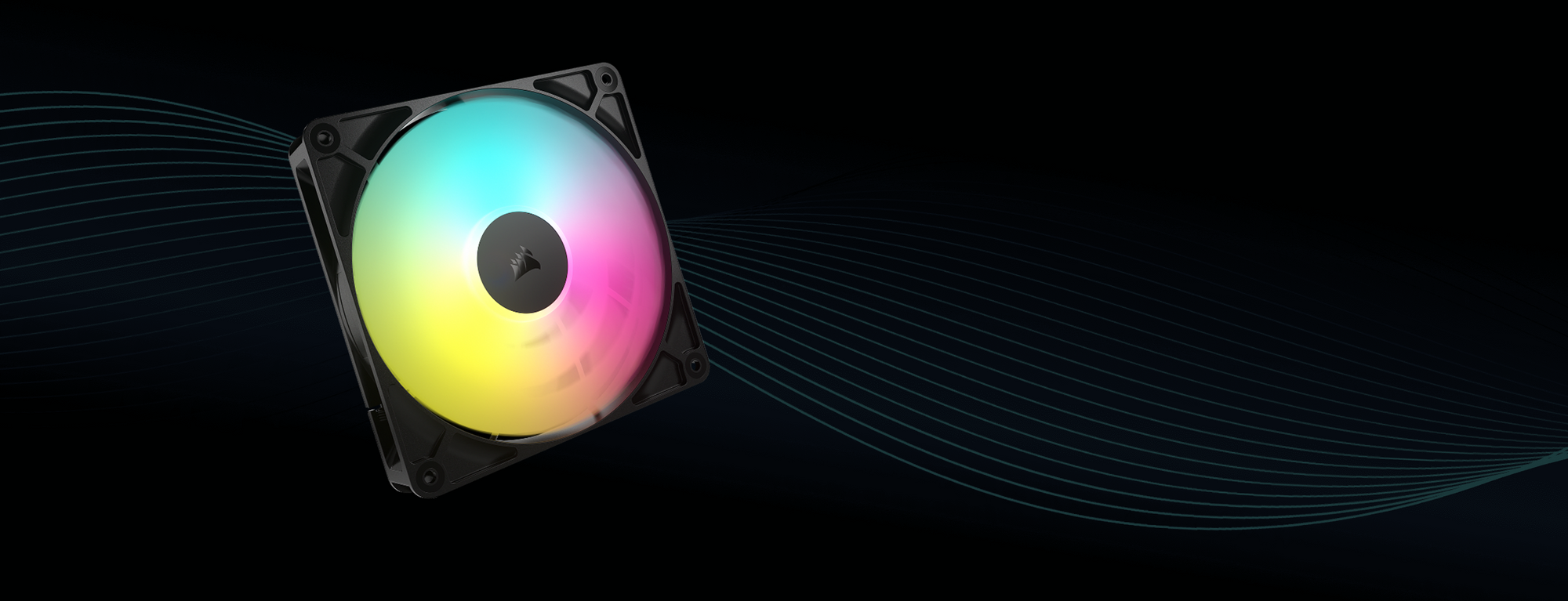

Pre-installed Front Fans: 3 × CORSAIR RS140 PWM
Pre-installed Rear Fan: 1 × CORSAIR RS140 PWM
Total Pre-installed Fans: 4
Maximum Fan Support: Up to 12 Fans
Front Fan Support
120 mm Fans: Up to 3
140 mm Fans: Up to 3
Top Fan Support
120 mm Fans: Up to 3
140 mm Fans: Up to 3
Side Fan Support
120 mm Fans: Up to 3
140 mm Fans: Up to 3
Bottom Fan Support
120 mm Fans: Up to 3
Rear Fan Support
120 mm Fans: 1
140 mm Fans: 1

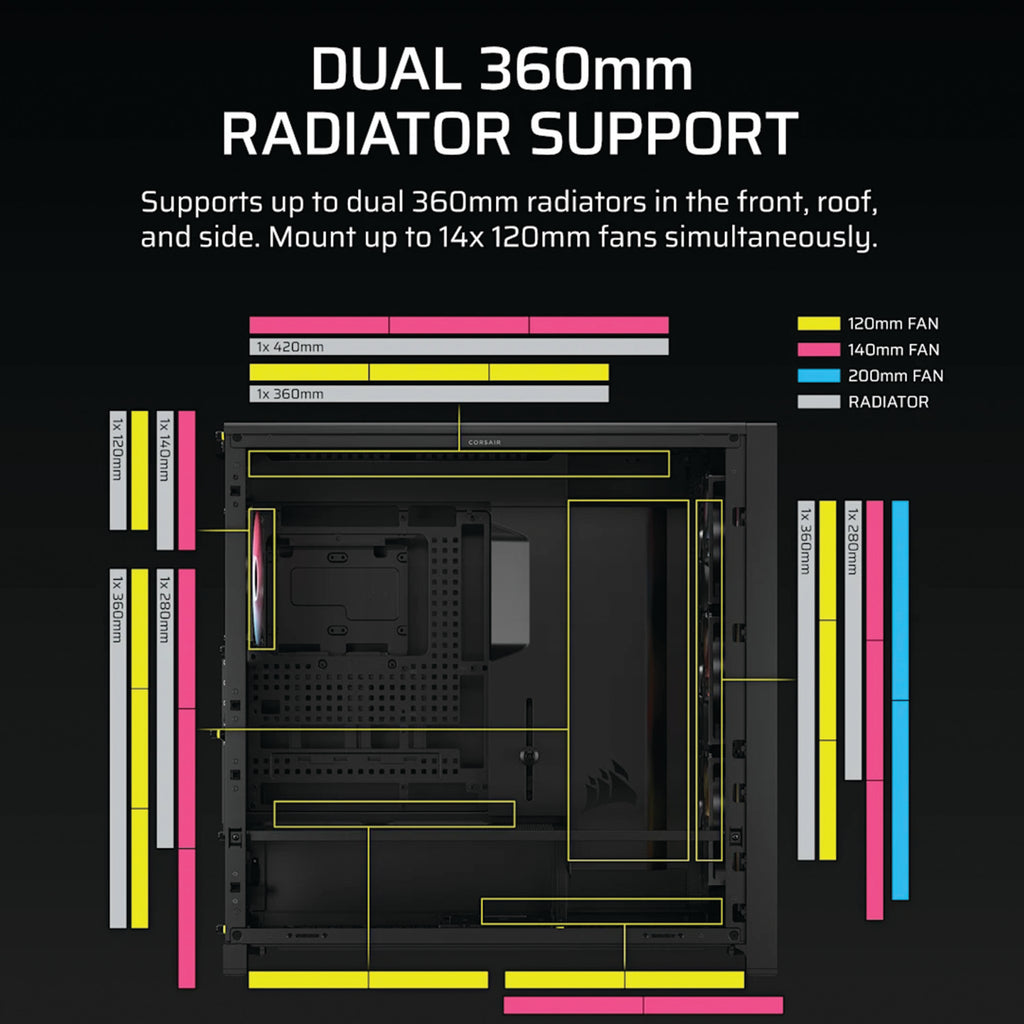

Radiator Support
Front Radiator Support: Up to 360 mm
Top Radiator Support: Up to 360 mm
Side Radiator Support: Up to 360 mm
Rear Radiator Support: Up to 140 mm

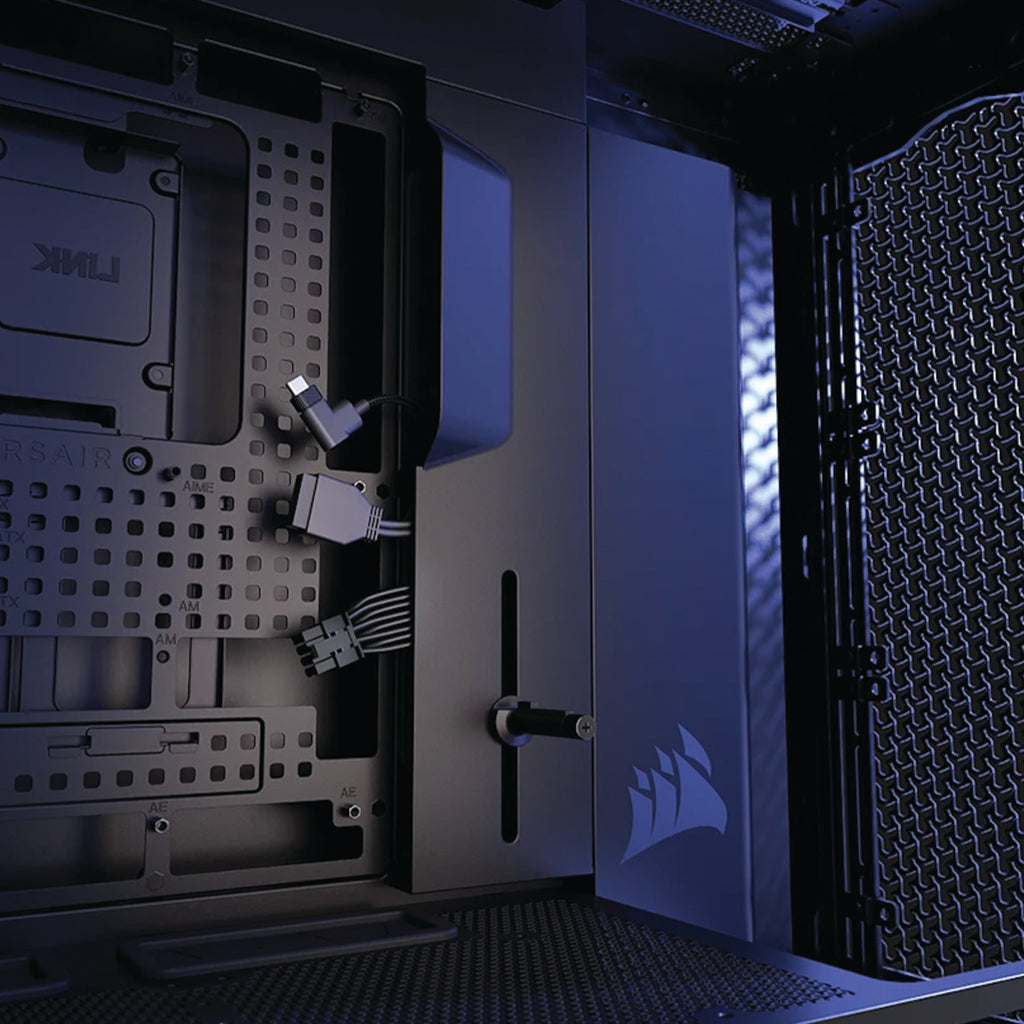

Cable Management
Cable Routing System: RapidRoute 2.0
Cable Management Clearance: 42 mm
Integrated Cable Channels: Yes
Cable Tie Points: Yes

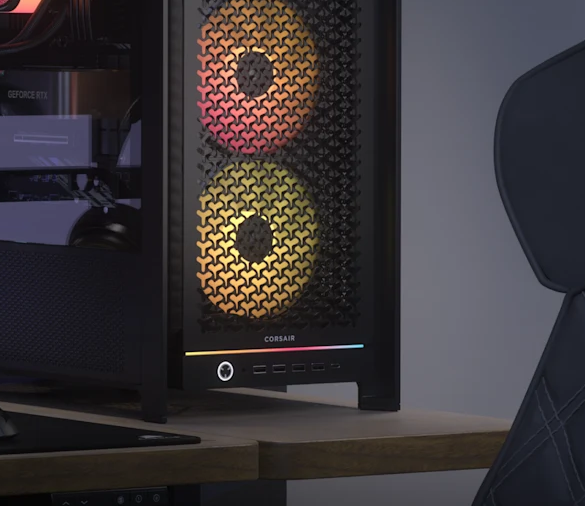

Front I/O Ports
USB 3.2 Gen 2 Type-C: 1
USB 3.2 Gen 1 Type-A: 2
3.5 mm Audio Combo Jack: 1
Power Button: Yes
Reset Button: Yes
Dust Protection
Front Dust Filter: Yes
Bottom Dust Filter: Yes
Top Dust Filter: Yes
Build Features

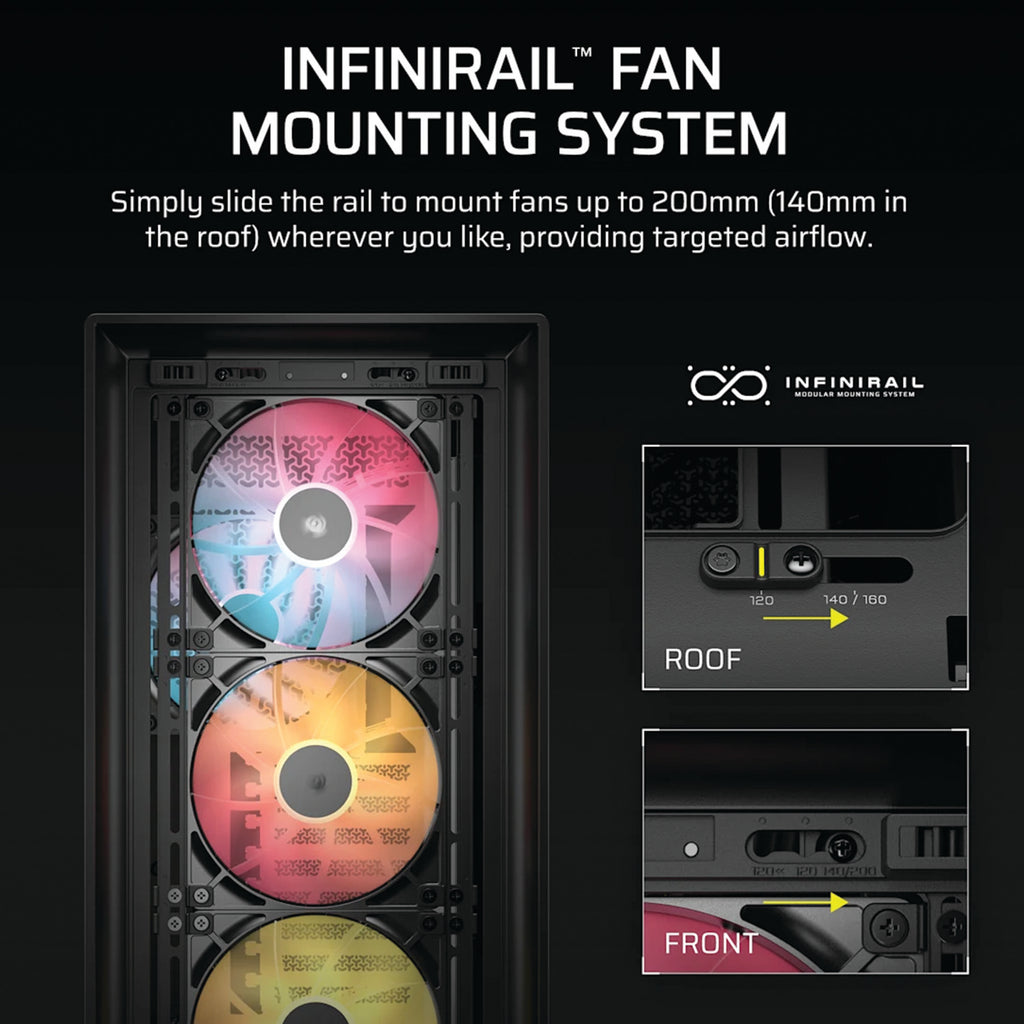

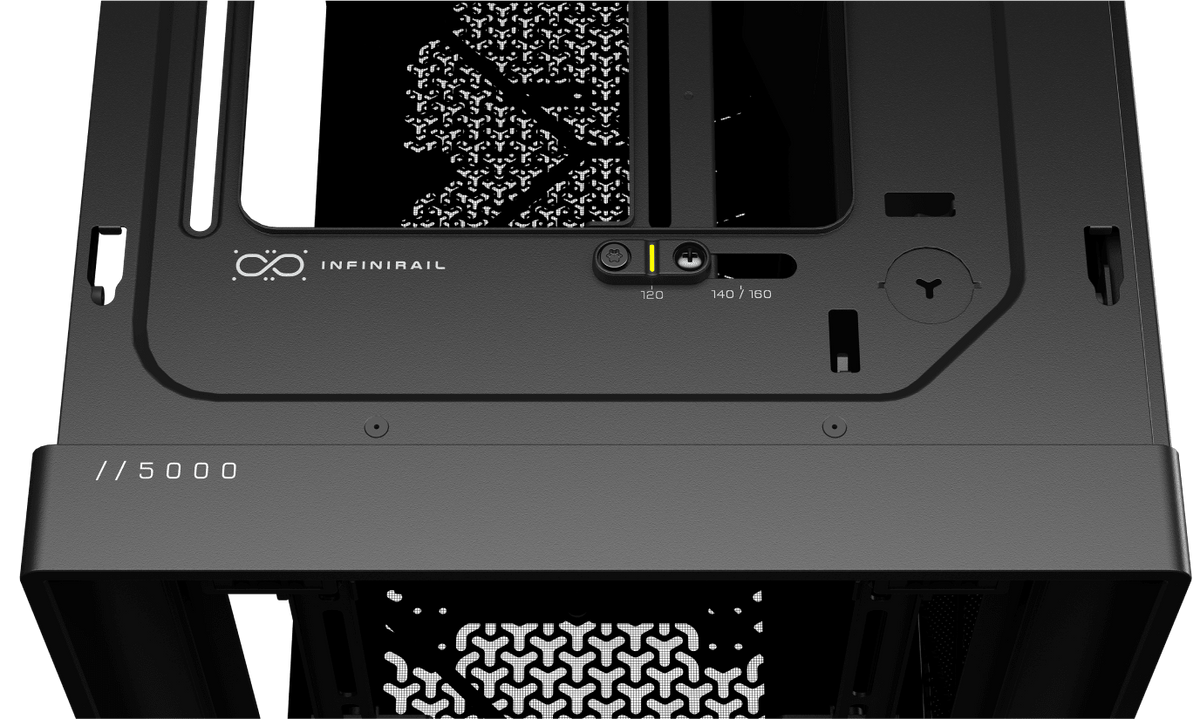

InfiniRail™ Fan Mounting System: Yes
Tool-Free Side Panel Access: Yes
Tempered Glass Viewing Panel: Yes
Custom Liquid Cooling Ready: Yes
Air Cooling Optimised: Yes
High-Airflow Mesh Front Panel: Yes
Dimensions
Length: 542 mm
Width: 250 mm
Height: 542 mm
Weight
Net Weight: Approximately 12.2 kg
Certifications
RoHS Compliant: Yes
Manufacturer
Brand: CORSAIR
Warranty: 2-Year Limited Manufacturer Warranty
What's Included
CORSAIR FRAME 5000D RS High-Airflow Mid-Tower PC Case (Black)
3 × CORSAIR RS140 PWM 140 mm Front Fans (Pre-installed)
1 × CORSAIR RS140 PWM 140 mm Rear Fan (Pre-installed)
Tempered Glass Side Panel
Accessory Box
Motherboard Standoff Hardware
Motherboard and Component Mounting Screws
PSU Mounting Screws
Drive Mounting Hardware
Cable Ties
Quick Start Guide
