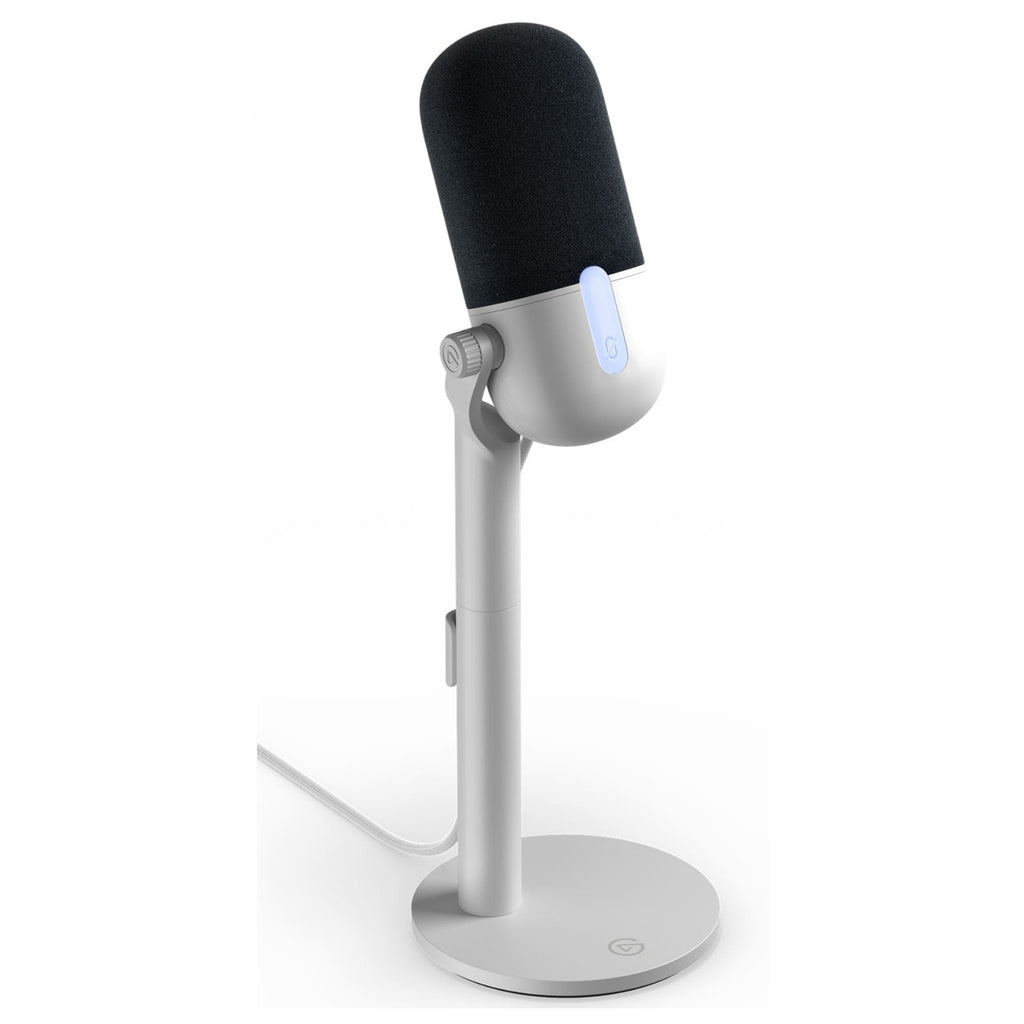

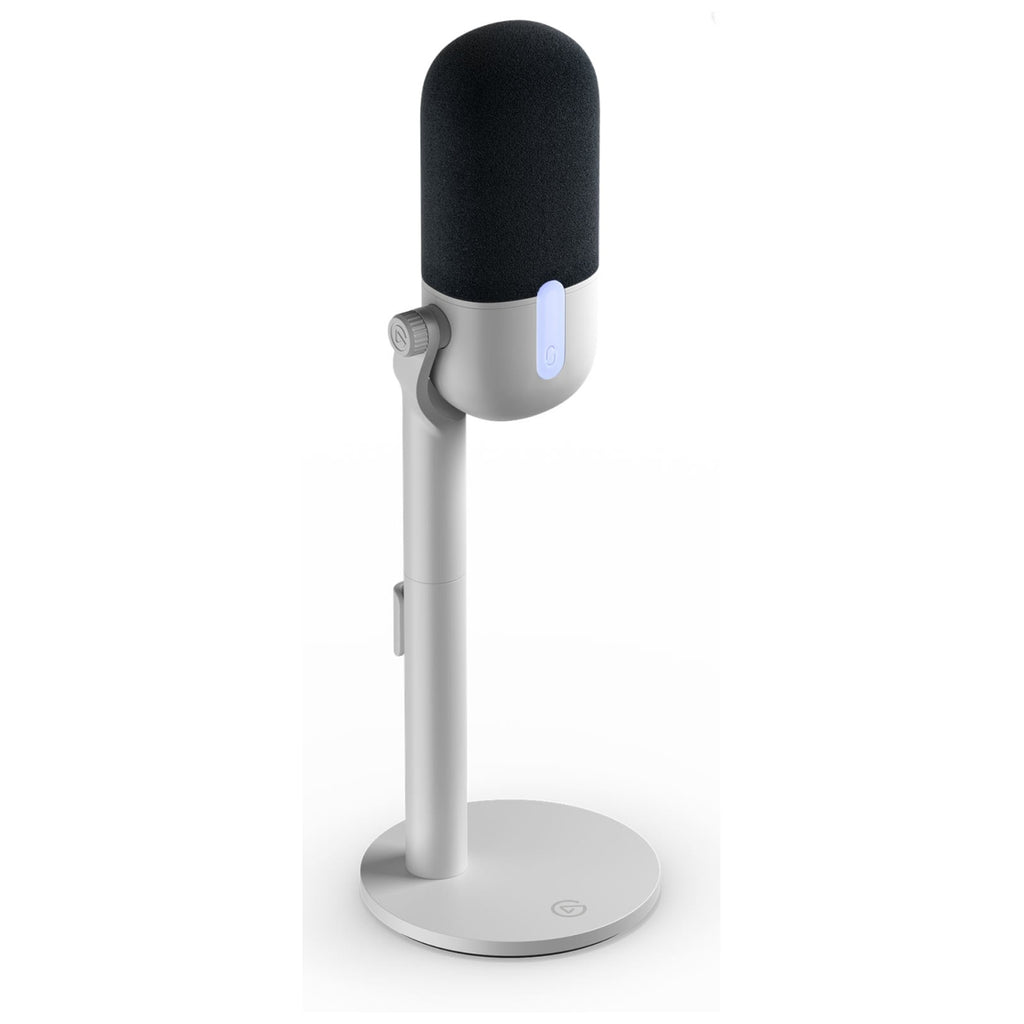

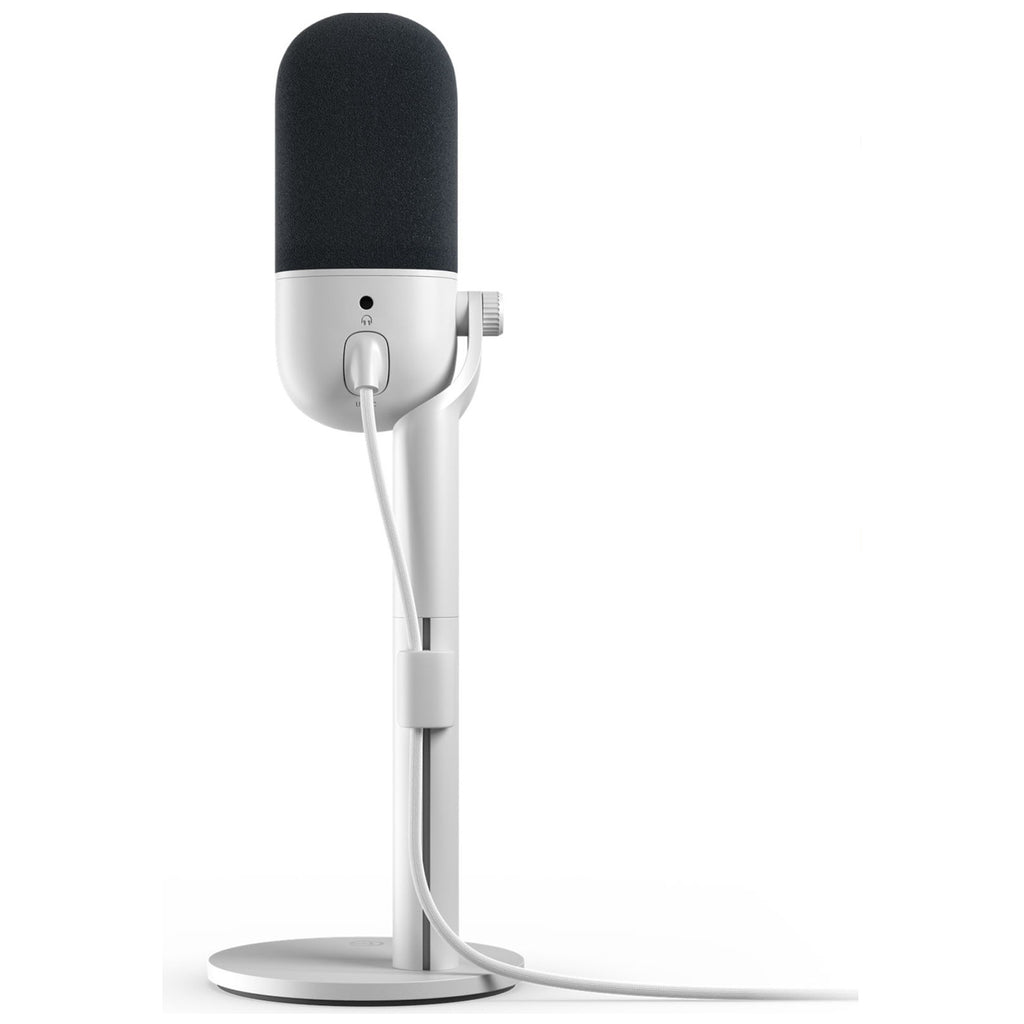

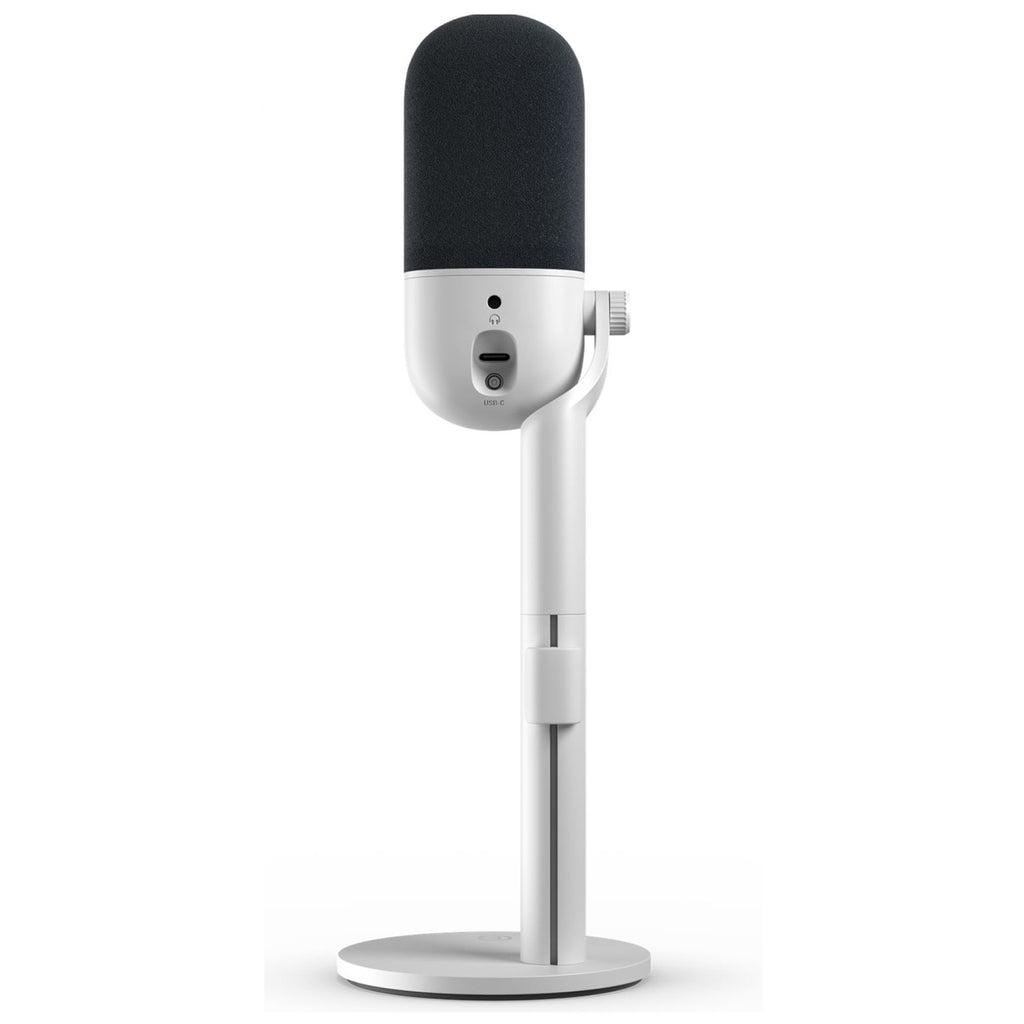

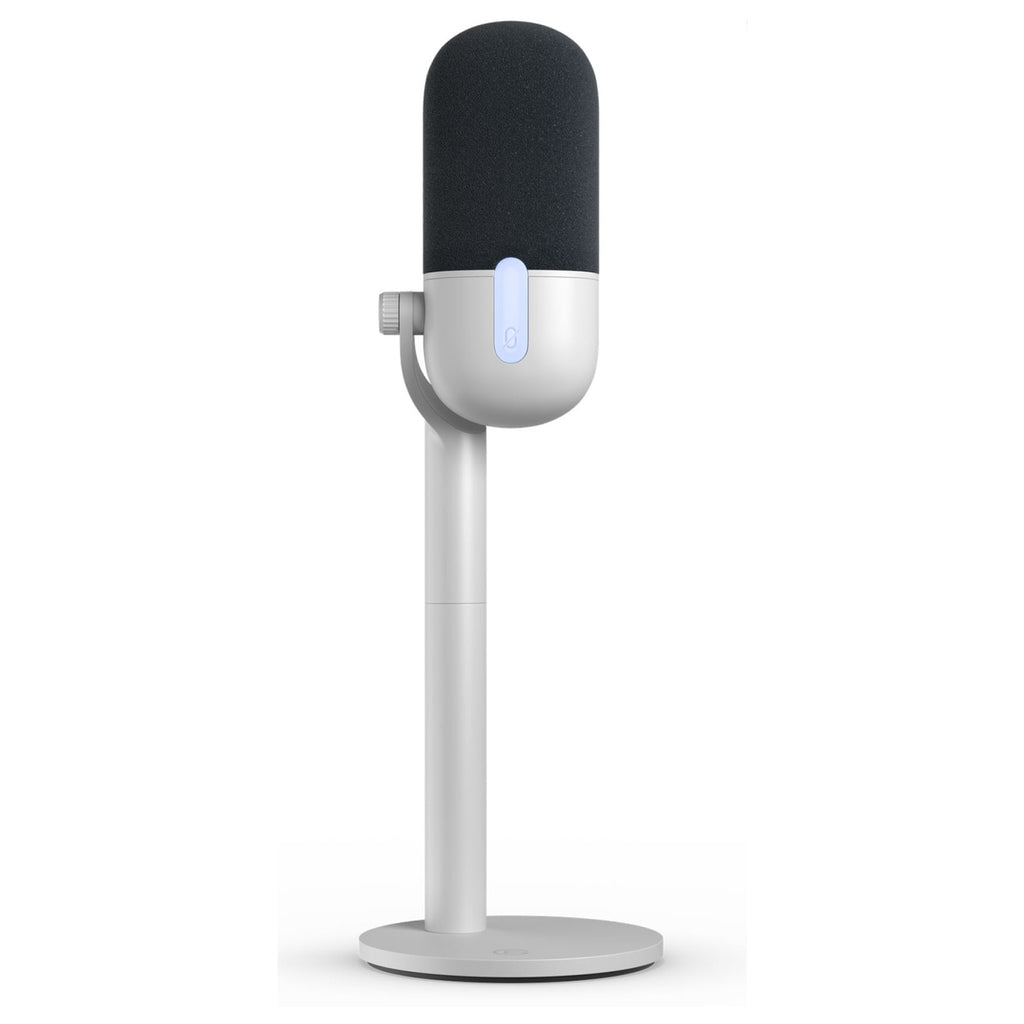

Elgato Wave Neo
Pickup currently not available
GENERAL
Brand: Elgato
Series / Model: Wave Neo
Product Type: USB Condenser Microphone
Model Number: 10MAQ9901
Colour: White
Mount Type: Desktop Stand Mount
Construction: Metal Grille with ABS Housing
MICROPHONE
Microphone Type: Condenser
Capsule Type: Electret Condenser Capsule
Polar Pattern: Cardioid
Frequency Response: 70 Hz – 20,000 Hz
Maximum SPL: 120 dB
Dynamic Range: 95 dB
AUDIO QUALITY
Analog-to-Digital Conversion: 24-bit
Sampling Rate: Up to 48 kHz
Digital Signal Processing: Supported via Software
Low Latency Monitoring: Supported
CONTROL
Front Control Dial: Microphone Gain
Capacitive Mute Button: Yes
LED Status Indicator: Yes
AUDIO PROCESSING
Noise Reduction: Software Based
DSP Effects via Software:
- Compressor
- Equalizer
- Noise Gate
- De-Esser
SOFTWARE
Software Name: Elgato Wave Link
Software Features:
- Multi-channel Audio Mixing
- Stream Monitoring
- DSP Effects Processing
- Audio Routing
CONNECTIVITY
Connection Type: Wired
Interface: USB-C
Cable Type: USB-C to USB-A
Cable Length: ~2000 mm
COMPATIBILITY
Operating System (Windows): Windows 10 (64-bit) or later
Operating System (macOS): macOS 11 or later
Operating System (iPad): iPadOS with USB-C
Software Required: Elgato Wave Link
MOUNTING
Mount Type: Desktop Stand
Thread Size: 1/4 inch
Compatible Mounts:
- Elgato Wave Mic Arm
- Standard Microphone Boom Arms
- Tripods
PHYSICAL SPECIFICATIONS
Width: 66 mm
Depth: 40 mm
Height: 153 mm
Weight: 280 g
PACKAGING
Package Weight: ~0.80 kg
Packaging Dimensions: ~220 mm × 170 mm × 110 mm

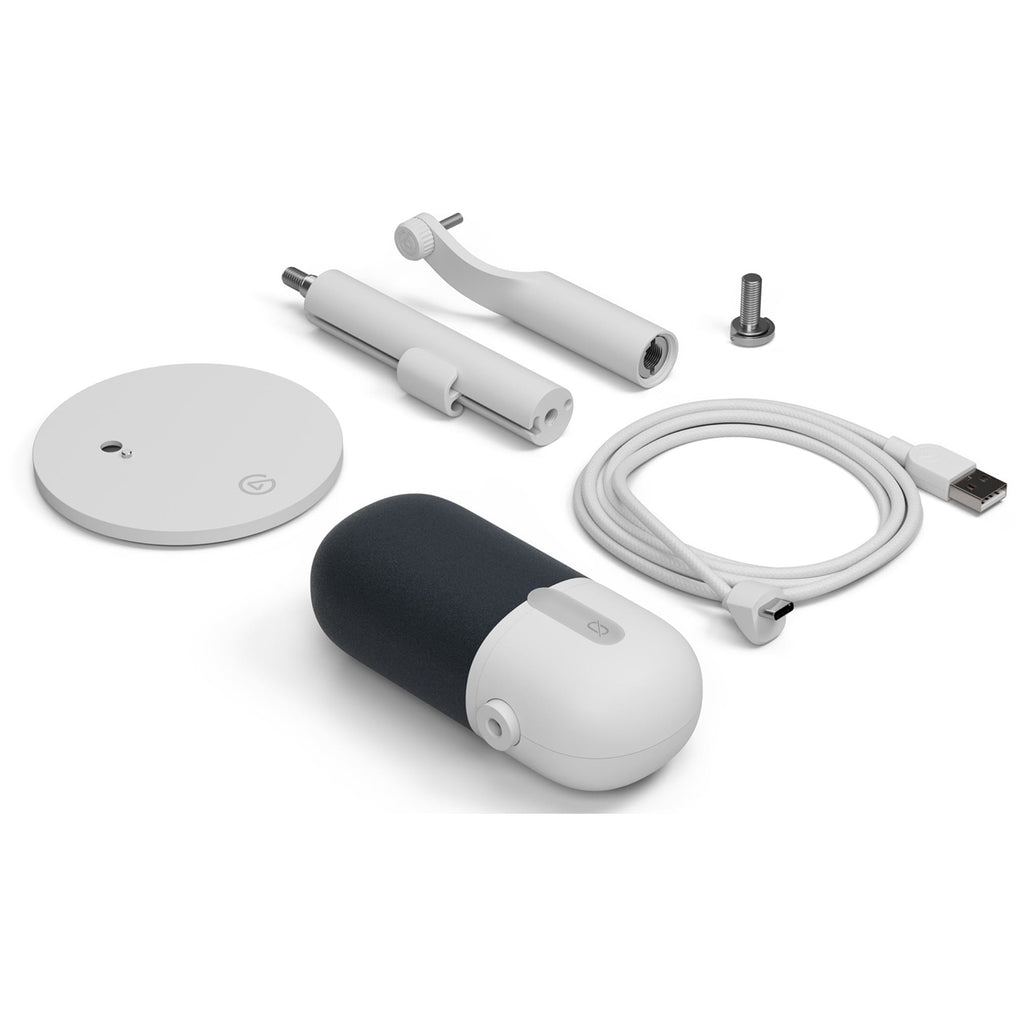

WHATS IN THE BOX
Elgato Wave Neo Microphone
Desktop Stand
USB-C to USB-A Cable
Quick Start Guide
WARRANTY
Warranty: 24-Month Limited Manufacturer Warranty
