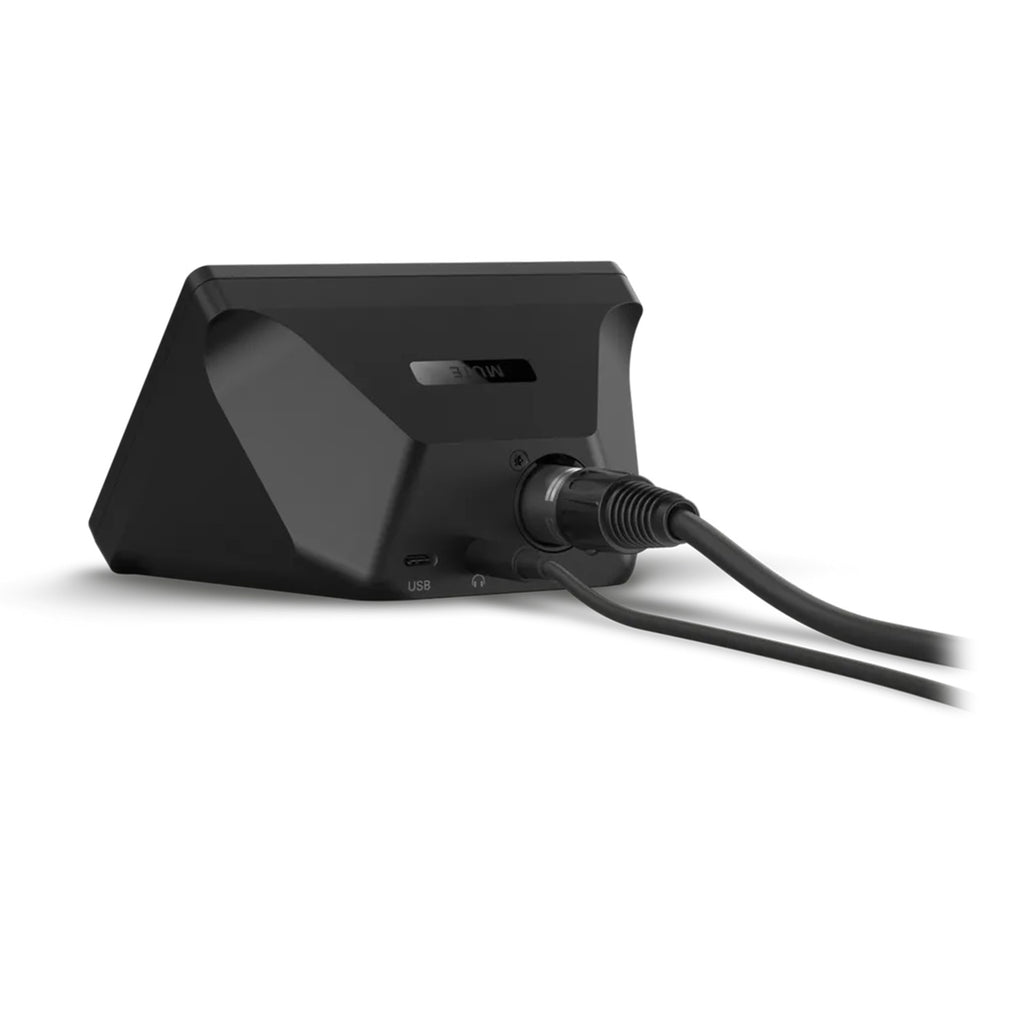

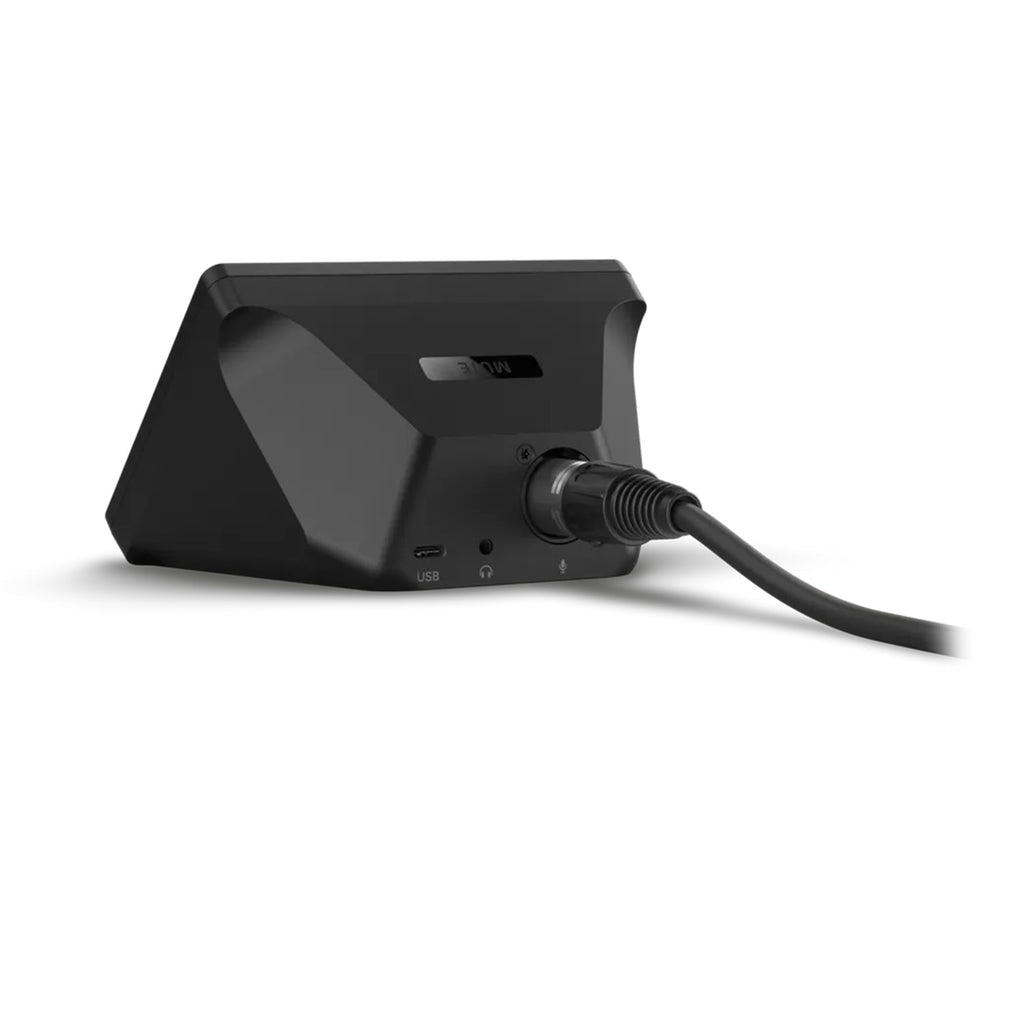

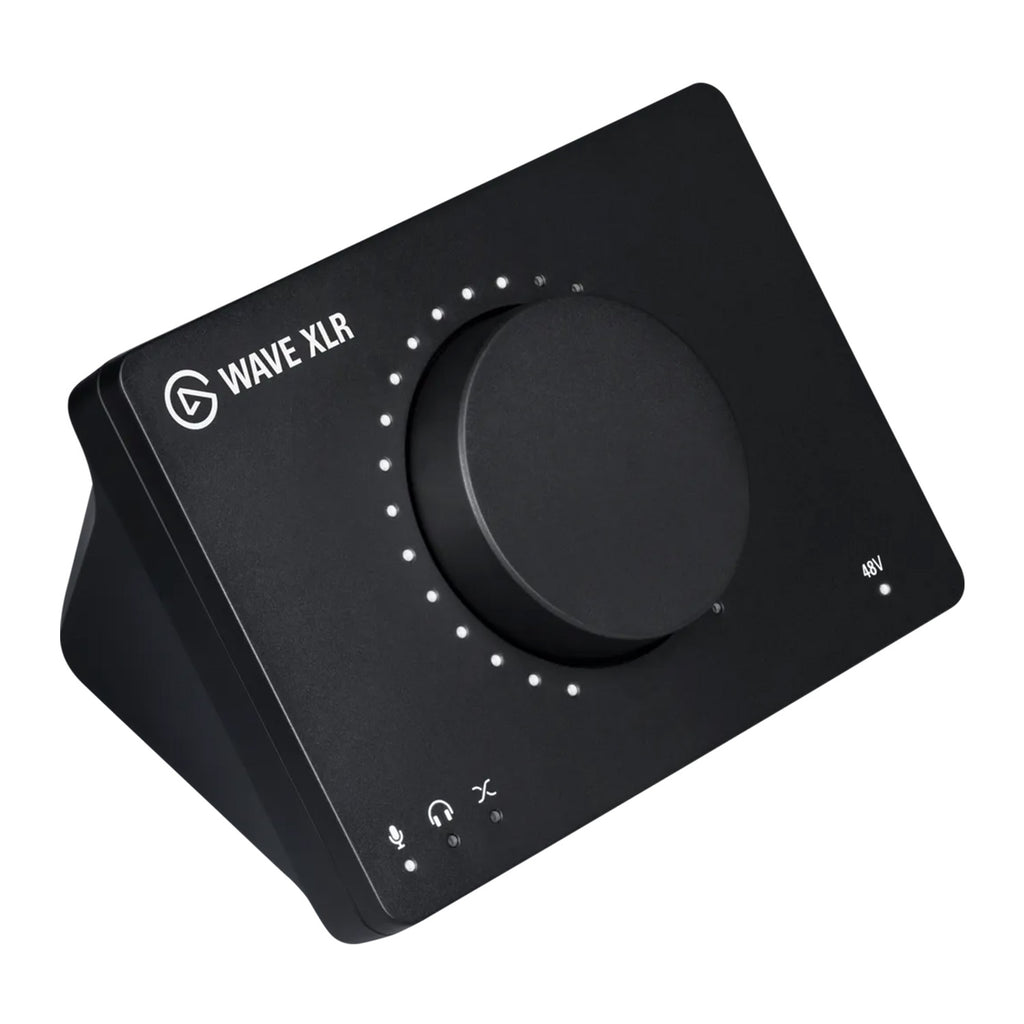

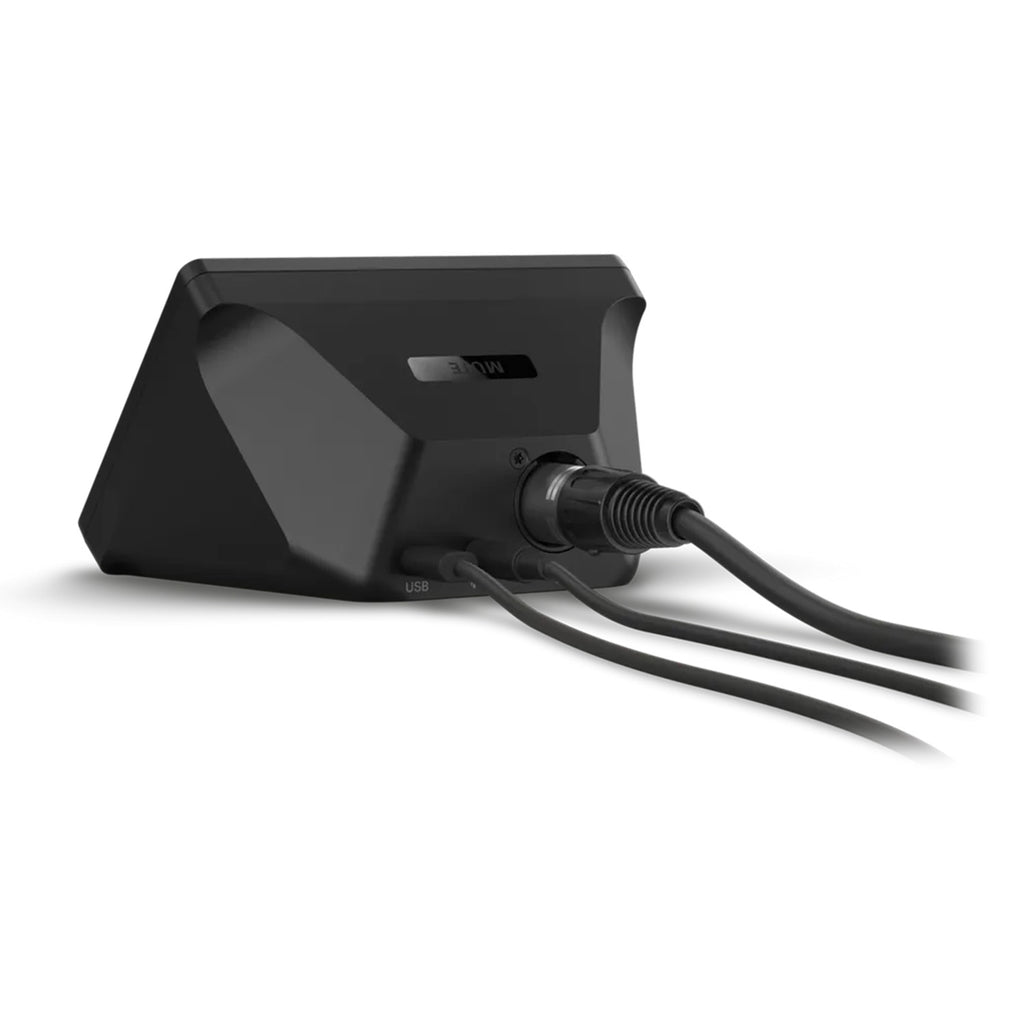

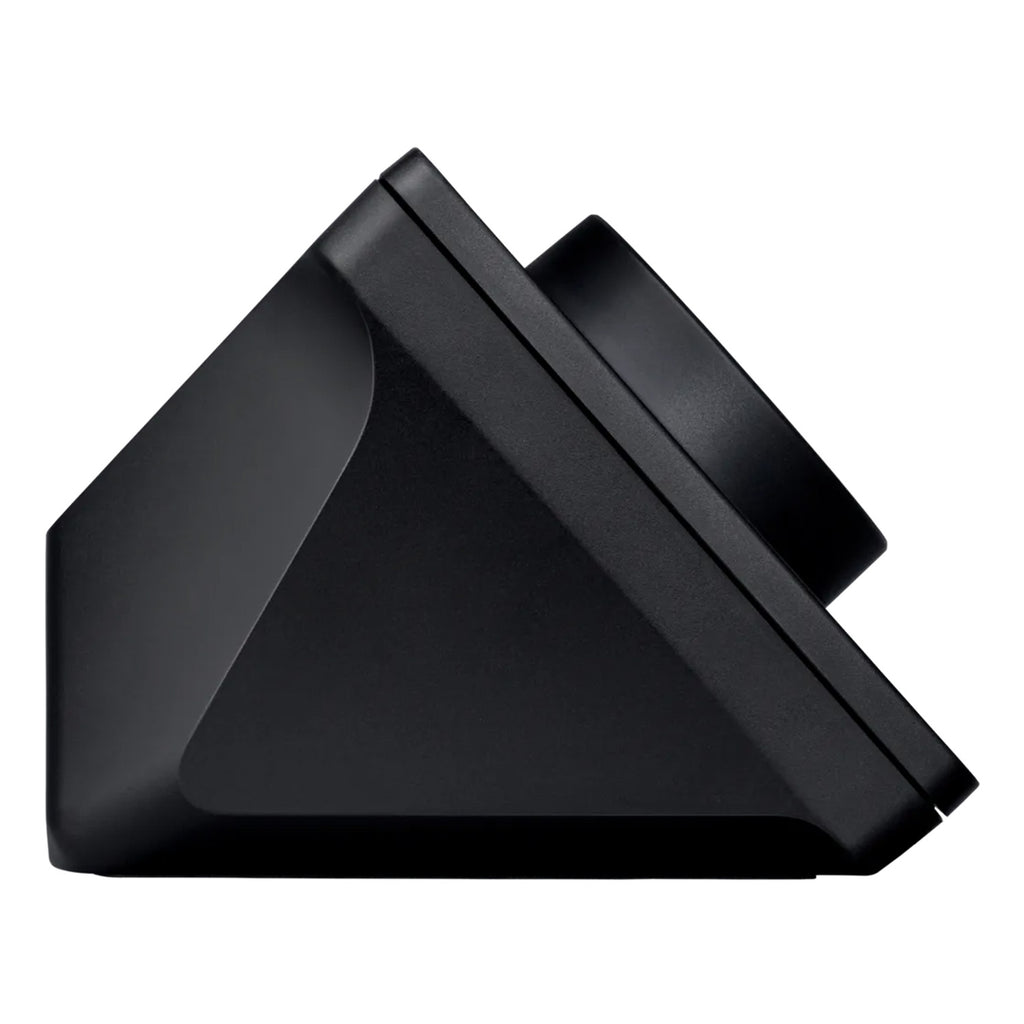

Elgato Wave XLR
R 2,749.00
VAT included.
Pickup currently not available
GENERAL
Brand: Elgato
Model: Wave XLR
Product Type: USB Audio Interface / Mic Interface
Colour: Black
AUDIO PERFORMANCE
Frequency Response: 20 Hz – 20 kHz
Dynamic Range: 100 dB (120 dB Clipguard Enabled)
Equivalent Input Noise (EIN): −130 dBV @ 60 dB Gain
Gain Range: 0 – 75 dB
Resolution: 24-bit
Sample Rate: 48 / 96 kHz

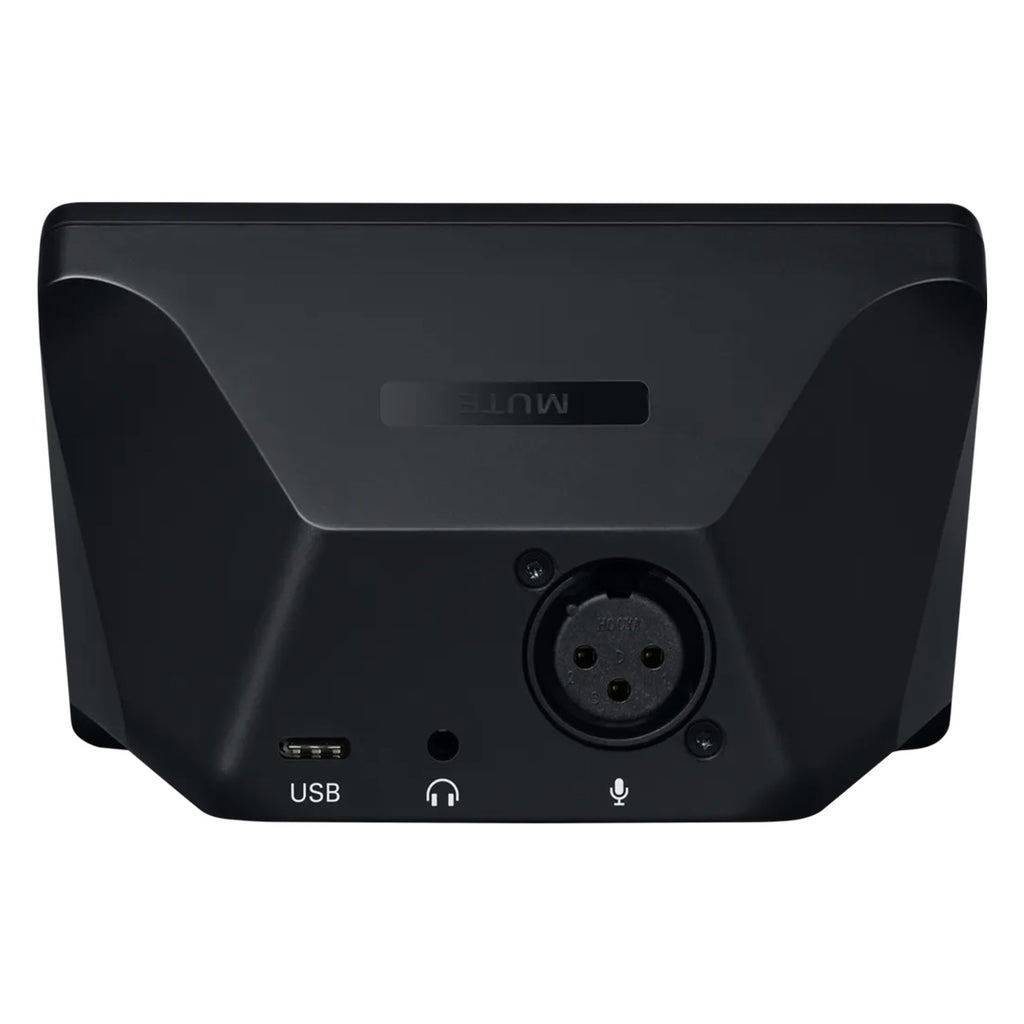

INPUTS & OUTPUTS
Microphone Input: 1 × XLR (Balanced)
Headphone Output: 1 × 3.5 mm
Computer Interface: USB-C
Headphone Output Power: 77 mW @ 16 Ω
POWER
Phantom Power: 48 V DC, 7 mA
Power Source: USB Bus Powered
FEATURES
Clipguard Technology: Anti-Distortion Protection
DSP Processing: Built-in Digital Signal Processing
Mute Control: Capacitive Touch Mute Sensor
Monitoring: Zero-Latency Headphone Monitoring
LED Feedback: Multi-Function Control Dial with LED Indicators
Software Integration: Elgato Wave Link Digital Mixer
Stream Deck Integration: Supported
SYSTEM REQUIREMENTS
Operating System: Windows 10 (64-bit) or later
Operating System: macOS 10.15 or later
USB Requirement: USB 3.0 or higher
DIMENSIONS & WEIGHT
Product Dimensions (L × W × H): 140 mm × 90 mm × 40 mm
Product Weight: 240 g
PACKAGING
Packaging Dimensions (L × W × H): 175 mm × 175 mm × 135 mm
Packaging Weight: 1.05 kg
WHATS IN THE BOX
Wave XLR Interface
USB-C Cable
Quick Start Guide
WARRANTY
Warranty: 2-Year Limited Manufacturer Warranty
Items returned within 7 days of their original shipment date in same as new condition will be eligible for a full refund or exchange. Refunds will be charged back to the original form of payment used for purchase.
At Microhard Technologies PTY LTD we follow a streamlined 7-step process to ensure efficient resolution and optimal enduser support:
1.Remote Diagnosis:
Initially, we attempt to resolve the issue remotely, typically by guiding the customer through software updates or installations to address any software-related concerns.
2. Collection
If a hardware defect is suspected, we arrange for the collection of the product directly from the customer's location using a nationwide courier network, ensuring minimal inconvenience to the customer.
3. Inspection & Testing
Upon arrival at our facility, we verify the suspected hardware issue within 48 hours. In addition, we perform comprehensive stress tests to identify any other potential hardware problems that may not have been reported by the customer. The customer is regularly updated on the status of the evaluation.
4. Repair:
Once the hardware issue is confirmed, we send the product to an authorized repair center, such as Pinnacle Micro or Mustek, for thorough repairs.
5. Completion and Verification
After the repair is completed, we collect the product within 24 hours and perform a final stress test to confirm the issue has been fully resolved.
6. Customer Notification
The customer is promptly notified when their product is ready for return.
7. Return Shipping
The repaired product is sent back to the customer at no additional cost, ensuring a hassle-free experience.
This efficient process ensures that customers receive timely support and that their products are repaired to the highest standards.
