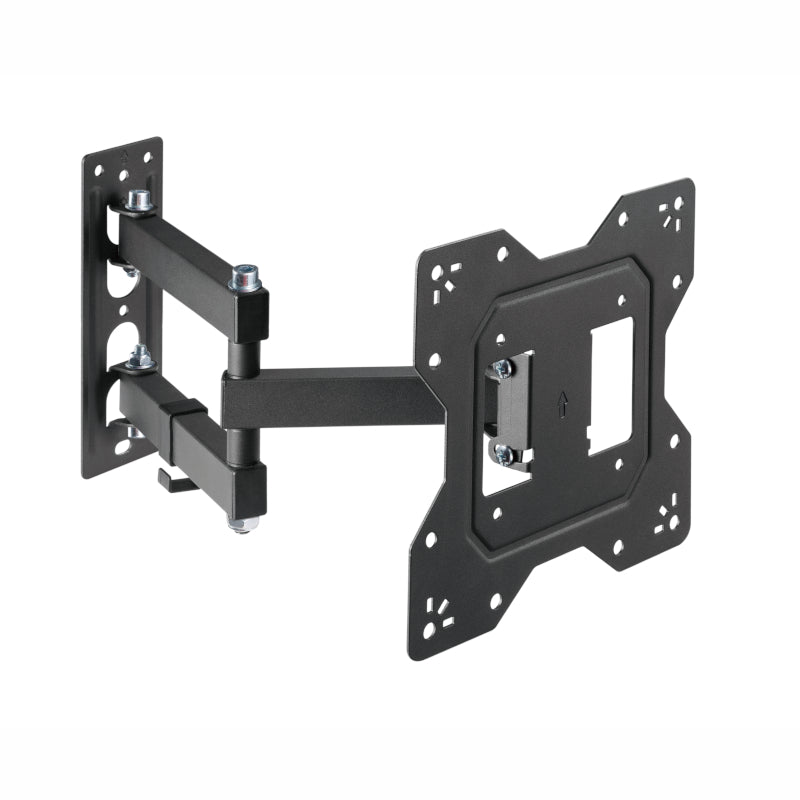

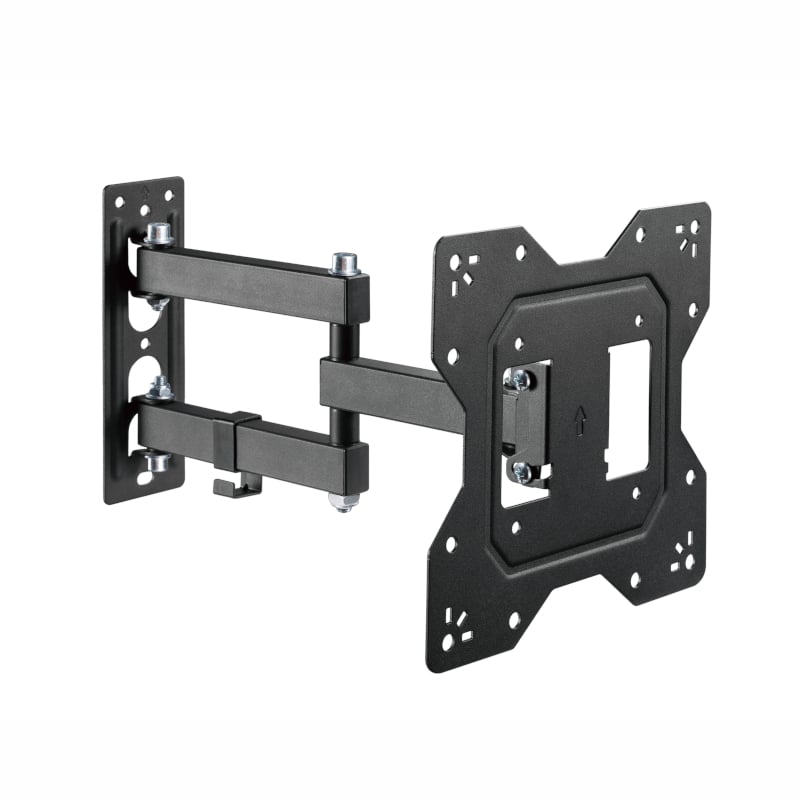

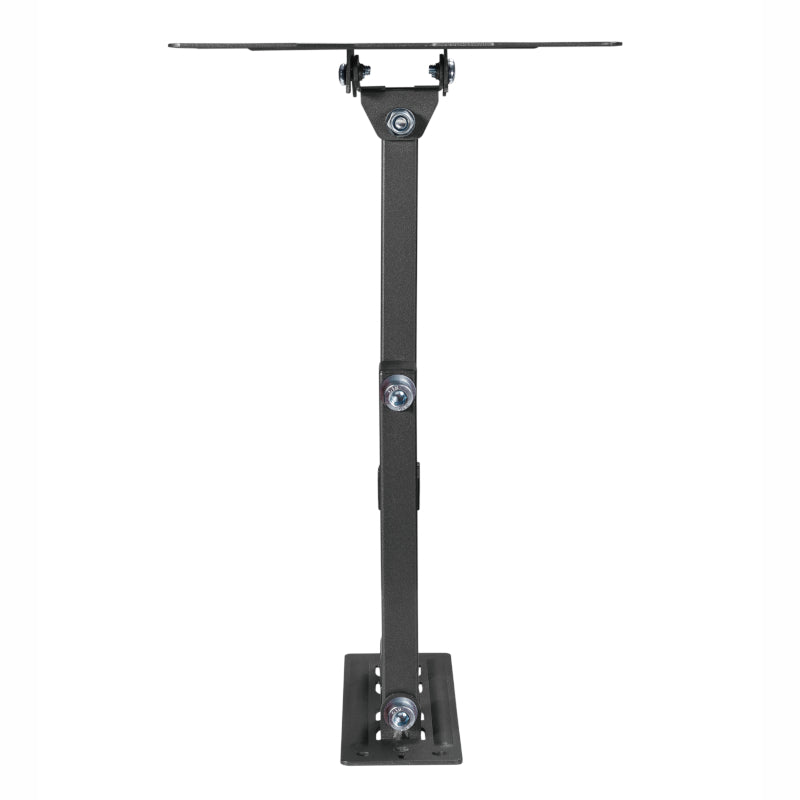

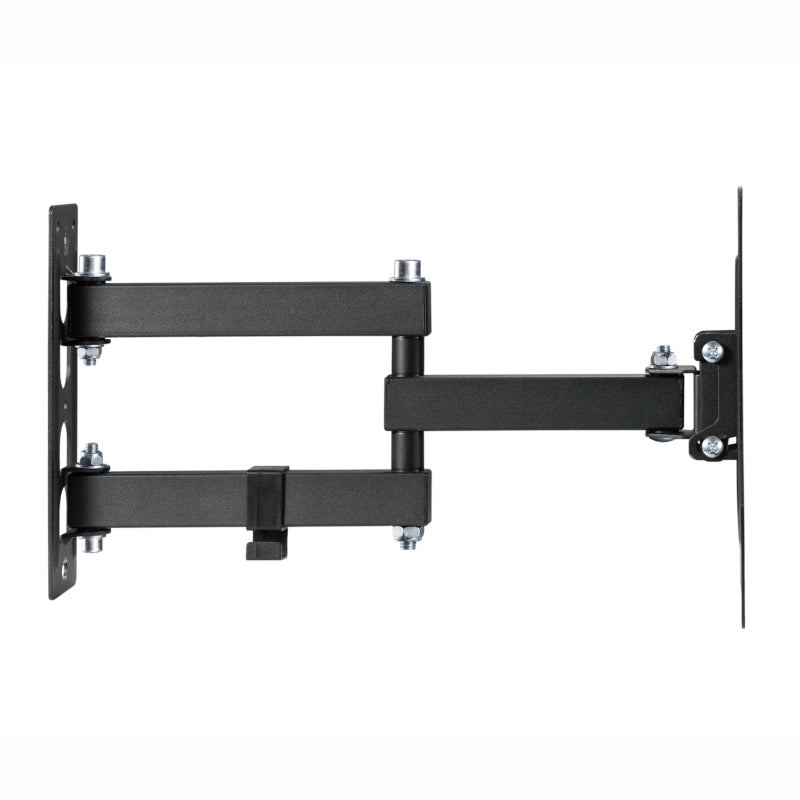

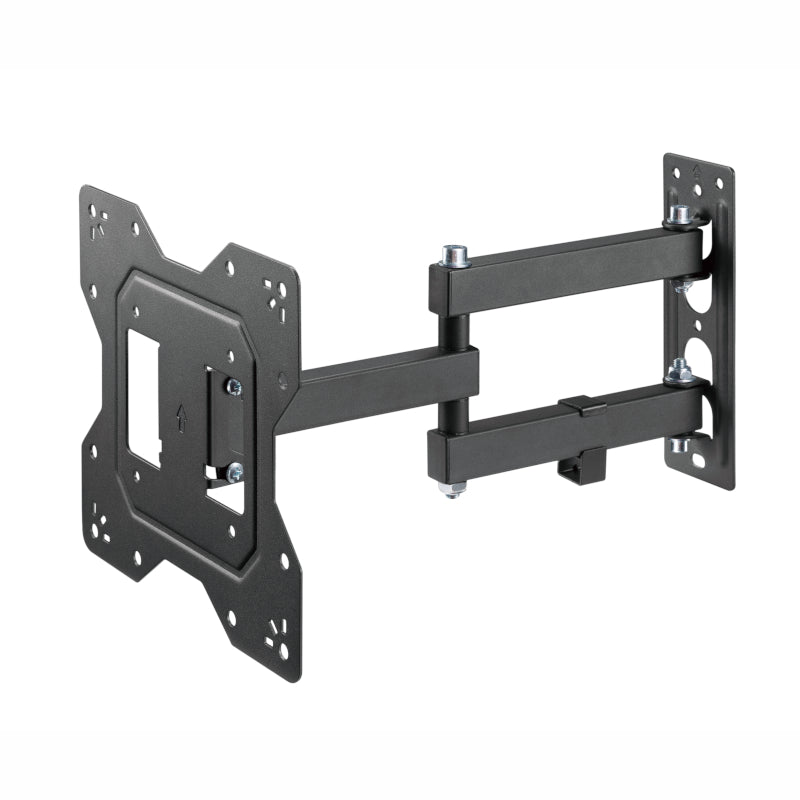

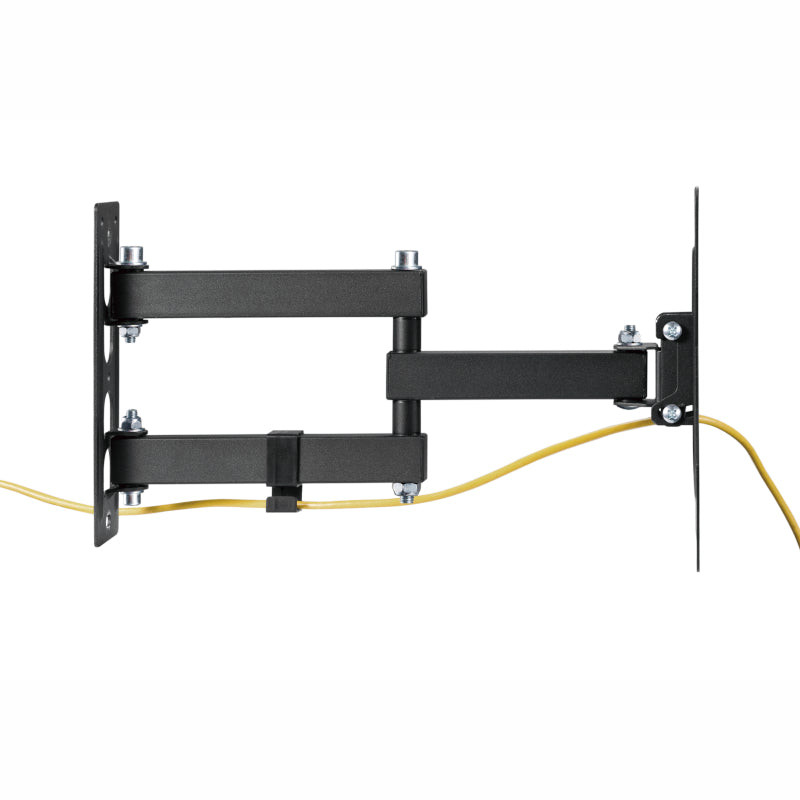

WINX MOUNT Pro Full Motion TV Bracket

WINX MOUNT Pro Full Motion TV Bracket

R 259.00
101 AVAILABLE — Ships in 3–5 Days
QUICK INFO

Product Name: WINX MOUNT Pro Full Motion TV Bracket
Product Type: Full Motion TV Wall Mount
Screen Size Compatibility: 32 – 70 inch
Maximum Load Capacity: 40 kg
VESA Compatibility: 100 × 100 mm to 400 × 400 mm

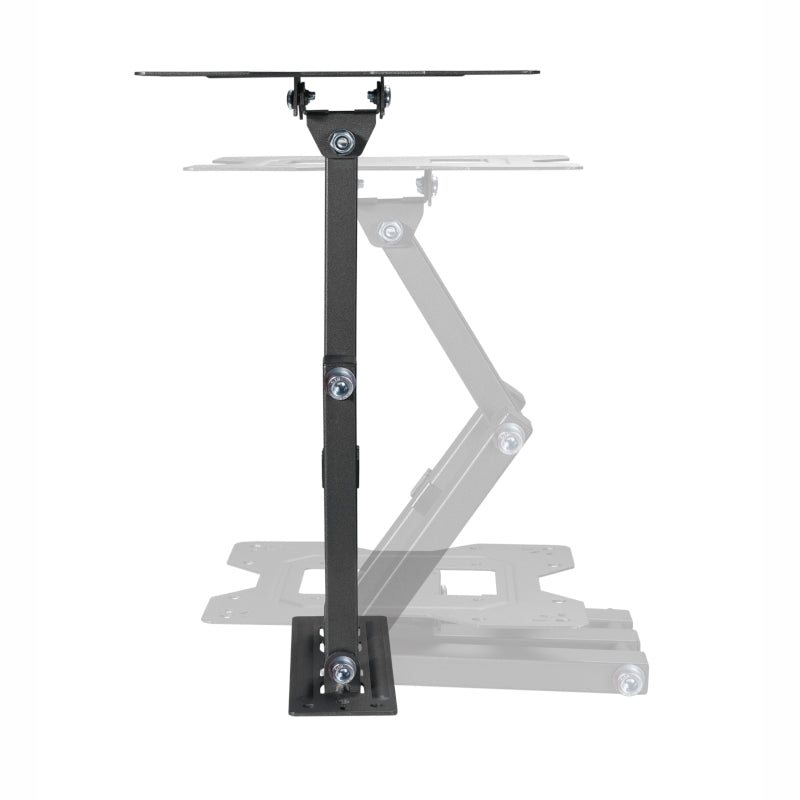

Tilt Range: -15° to +5°
Swivel Range: ±60°
Profile Distance (Wall): 60 – 473 mm

The WINX MOUNT Pro Full Motion TV Bracket is a versatile wall mounting solution designed to support televisions from 32 to 70 inches. Constructed from durable steel, it provides a secure and stable mounting platform while supporting weights of up to 40 kg.

Its full-motion design allows for flexible viewing angles with tilt adjustment from -15° to +5° and swivel capability of up to ±60°, making it ideal for reducing glare and optimizing viewing positions in any room. The adjustable extension arm offers a range from 60 mm to 473 mm, allowing the TV to be positioned closer to the wall or extended outward as needed.

Compatible with standard VESA mounting patterns from 100 × 100 mm to 400 × 400 mm, the bracket supports a wide range of modern LED, LCD, OLED, and QLED televisions. A built-in level adjustment of ±3° ensures precise alignment after installation, making it a practical and flexible solution for home entertainment setups.

GENERAL

Brand: WINX
Model: MOUNT Pro Full Motion TV Bracket
Product Type: Full Motion TV Wall Mount
Colour: Black
Material: Steel

COMPATIBILITY

Screen Size Compatibility: 32 – 70 inch
VESA Mount Compatibility: 100 × 100 mm, 200 × 200 mm, 300 × 300 mm, 400 × 400 mm
Supported Devices: LED, LCD, OLED, QLED Televisions

LOAD CAPACITY

Maximum Supported Weight: 40 kg

MOTION & ADJUSTMENT

Tilt Range: -15° to +5°
Swivel Range: ±60°
Extension Range from Wall: 60 – 473 mm
Rotation Adjustment: ±3° Level Adjustment

MOUNTING

Mount Type: Wall Mount
Mount Pattern: VESA Standard
Installation Type: Stud or Solid Wall Mounting

DIMENSIONS & BUILD

Construction Material: Heavy-Duty Steel
Finish: Powder-Coated

PACKAGING

Weight: 1929 g
Dimensions: 30 × 7 × 25 cm

WHATS IN THE BOX

TV Wall Mount Bracket
Mounting Arms
Wall Plate
Installation Hardware Kit
Mounting Screws and Bolts
Wall Anchors
Installation Guide

WARRANTY

Warranty: Limited Manufacturer Warranty
